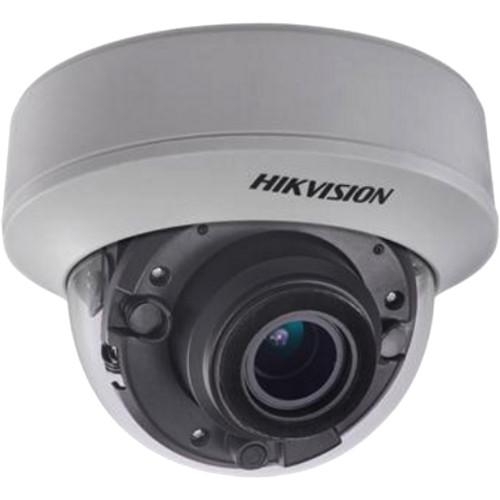

User Manual for Hikvision DS-2CE56F7T-AITZ 3MP HD-TVI Dome Camera with Night Vision & 2.8-12mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CE56F7T-AITZ 3MP HD-TVI Dome Camera
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision DS-2CE56F7T-AITZ 3MP HD-TVI Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CE56F7T-AITZ 3MP HD-TVI Dome Camera from Hikvision uses a 1/3" CMOS sensor to transmit 1920 x 1536 resolution video at 18 fps. Built-in EXIR technology provides up to 98' of night vision. The 2.8-12mm motorized varifocal lens delivers a 83-26.8° field of view to cover a wide area. The camera supports an HD-TVI signal output. UTC (Up-the-Coax) protocol enables OSD menu control. - Analog signal (HD-TVI) can be sent over existing RG6 coaxial cable, eliminating the need to run new cables for HD video
- EXIR technology for low-light visibility
- IR cut filter for day and night functionality
- Camera pivots from 0 to 355° horizontally and from 0 to 75° vertically
- 120 dB wide dynamic range
- CSA, FCC, CE, and cUL certified
UPC: 813908026979 In the Box Hikvision DS-2CE56F7T-AITZ 3MP HD-TVI Dome Camera with Night Vision & 2.8-12mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CE56F7T-AITZ 3MP HD-TVI Dome Camera with Night Vision & 2.8-12mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56F7T-AITZ Specs | Image Sensor | 3 MP, 1/3" CMOS Image Sensor | | Effective Pixels | 2052 x 1536 | | Minimum Illumination | Color: 0.01 Lux at f/1.2 with AGC
B&W: 0 Lux with IR | | Shutter Speed | 1/50,000 to 1/30 Seconds (NTSC)
1/50,000 to 1/25 Seconds (PAL) | | Lens | 2.8 to 12mm Motorized Varifocal Lens | | Lens Mount | Ø14 | | Field of View | 83 to 26.8° | | Optical Zoom | 4.3x | | IR Range | 98' / 30 m | | IR Cut Filter | Yes | | Day/Night Mode | Smart, Color, and B&W | | Angle Adjustment | Horizontal: 0 to 355°
Vertical: 0 to 75°
Rotation: 0 to 355° | | Synchronization | Internal | | Wide Dynamic Range | 120 dB | | Video Frame Rate | 1920 x 1536 at 18 fps | | HD Video Output | 1 x HD-TVI | | Communication | Up-the-Coax, HIKVISION-C Protocol (HD-TVI Output) | | OSD Menu | Yes | | S/N Ratio | >62 dB | | AGC (Automatic Gain Control) | Supported | | White Balance | ATW, MWB | | Backlight Compensation | Supported | | Functions | Wide Dynamic Range, Digital Noise Reduction, Mirror, and Smart IR | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | <90% (Non-Condensing) | | Power Supply | 12 VDC ±15%, 24 VAC ±15% | | Power Consumption | Maximum 6.5 W | | Certifications | CSA, FCC, CE, cUL | | Dimensions (Ø x H) | Ø5.35 x 4.02" / Ø136 x 102 mm | | Weight | 1.32 lb / 600 g | | | | Package Weight | 1.425 lb | | Box Dimensions (LxWxH) | 6.8 x 6.8 x 6.05" |
