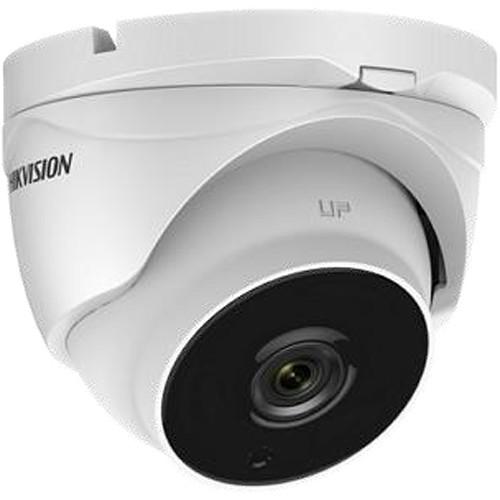

User Manual for Hikvision DS-2CE56F7T-IT3Z 3MP Outdoor HD-TVI Turret Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CE56F7T-IT3Z 3MP Outdoor HD-TVI Turret
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision DS-2CE56F7T-IT3Z 3MP Outdoor HD-TVI Turret contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CE56F7T-IT3Z from Hikvision uses a 1/3" CMOS sensor to transmit 2052 x 1536 resolution video. Built-in EXIR technology provides up to 131' of night vision. The 2.8-12mm motorized varifocal lens delivers an 83-26.8° field of view. The camera supports an HD-TVI signal output. UTC (Up-the-Coax) protocol enables OSD menu control.
This turret camera is housed in an IP66-rated enclosure that is suitable for outdoor use. - EXIR technology for low-light visibility
- IR cut filter for day and night functionality
- Camera pivots from 0 to 360° horizontally & from 0 to 75° vertically
- Smart features include line crossing, intrusion, region entrance, and region exit
- 120 dB wide dynamic range
- CSA, FCC, CE, and cUL certified
UPC: 813908026993 In the Box Hikvision DS-2CE56F7T-IT3Z 3MP Outdoor HD-TVI Turret Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CE56F7T-IT3Z 3MP Outdoor HD-TVI Turret Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56F7T-IT3Z Specs | Image Sensor | 3 MP, 1/3" CMOS image sensor | | Effective Pixels | 2052 x 1536 | | Minimum Illumination | Color: 0.01 lux at f/1.2 with AGC
B&W: 0 lux with IR | | Shutter Speed | 1/50,000 to 1/25 (1/30) seconds | | Lens | 2.8-12mm motorized varifocal lens | | Optical Zoom | 4.3x | | Field of View | 83-26.8° | | Lens Mount | Ø14 | | IR Range | 131' / 40 m | | Day/Night | IR cut filter | | Day/Night Mode | Color, B&W, smart | | Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 75°
Rotation: 0 to 360° | | Synchronization | Internal | | Wide Dynamic Range | 120 dB | | Video Frame Rate | 1920 x 1536 at 18 fps | | HD Video Output | 1 x HD-TVI | | Communication | Up-the-Coax, HIKVISION-C protocol (HD-TVI output) | | OSD Menu | Yes | | S/N Ratio | >62 dB | | AGC (Automatic Gain Control) | Supported | | White Balance | ATW, MWB | | Backlight Compensation | Supported | | Functions | Smart IR, wide dynamic range, digital noise reduction, mirror | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | <90% (non-condensing) | | Power Supply | 12 VDC ±15% | | Power Consumption | Maximum 6 W | | IP Rating | IP66 | | Certifications | CSA, FCC, CE, cUL | | Dimensions | 5.29 x 4.88 x 4.39" / 134.3 x 123.9 x 111.4 mm | | Weight | 1.6 lb / 750 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 7.0 x 6.7 x 5.9" |
