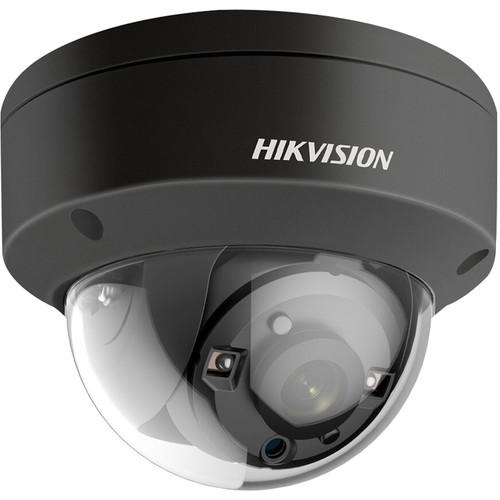

User Manual for Hikvision DS-2CE56F7T-VPITB 3MP Outdoor HD-TVI Dome Camera with Night Vision & 3.6mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CE56F7T-VPITB 3MP Outdoor HD-TVI Dome
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision DS-2CE56F7T-VPITB 3MP Outdoor HD-TVI Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Monitor an outdoor area with the black DS-2CE56F7T-VPITB 3MP Outdoor HD-TVI Dome Camera from Hikvision. This camera features a 3MP CMOS sensor for capturing 2052 x 1536 resolution video at up to 18 fps. IR LEDs deliver up to 66' of night vision. The 3.6mm fixed lens has a wide 67.8° field of view. Connection is via UTC (Up-the-Coax). This device is housed in an IP66- and IK10-rated enclosure suitable for outdoor use in areas at risk of vandalism. - WDR (wide dynamic range) up to 120 dB
- Smart IR, digital noise reduction, and backlight compensation help improve image visibility
- IR cut filter for day and night mode
- Includes a manual panning range of 0 to 340°, tilting range of 0 to 75°, and rotation range of 0 to 355°
- AGC (automatic gain control) support
- Auto and manual white balance
- IP66- and IK10-rated enclosure suitable for outdoor use in areas at risk of vandalism
In the Box Hikvision DS-2CE56F7T-VPITB 3MP Outdoor HD-TVI Dome Camera with Night Vision & 3.6mm Lens (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CE56F7T-VPITB 3MP Outdoor HD-TVI Dome Camera with Night Vision & 3.6mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56F7T-VPIT Specs | Image Sensor | 3 MP CMOS | | Signal System | NTSC | | Effective Pixels | 2052 x 1536 | | Minimum Illumination | 0.01 Lux at f/1.2, AGC On
0 Lux with IR On | | Shutter Time | 1/30 to 1/50,000 Seconds | | Lens Type | Fixed | | Focal Length | 3.6mm | | Field of View | 67.8° | | Lens Mount | M12 | | Day & Night | IR Cut Filter | | Angle Adjustment | Pan: 0 to 340°
Tilt: 0 to 75°
Rotate: 0 to 355° | | Synchronization | Internal | | Wide Dynamic Range | 120 dB | | Backlight Compensation | Supported | | Video Frame Rate | 1920 x 1536 at 18 fps | | HD Video Output | 1 x Analog HD-TVI Output | | S/N Ratio | >62 dB | | Day/Night Mode | Color, B&W, Smart IR | | White Balance | ATW, MWB | | AGC (Automatic Gain Control) | Support | | IR Range | Up to 66' / 20 m | | Functions | WDR (Wide Dynamic Range), Digital Noise Reduction, Mirror, Smart IR | | Operating Conditions | -40 to 140°F / -40 to 60°C | | Humidity | 90% or Less (Non-Condensing) | | Power Supply | 12 VDC, ±15% | | Power Consumption | Maximum 5 W | | IP Rating | IP66 | | IK Rating | IK10 | | Communication | Up-the-Coax HIKVISION-C (HD-TVI Output) | | Dimensions | 4.3 x 3.25" / 111 x 82.5 mm | | Weight | 0.77 lb / 350 g |
