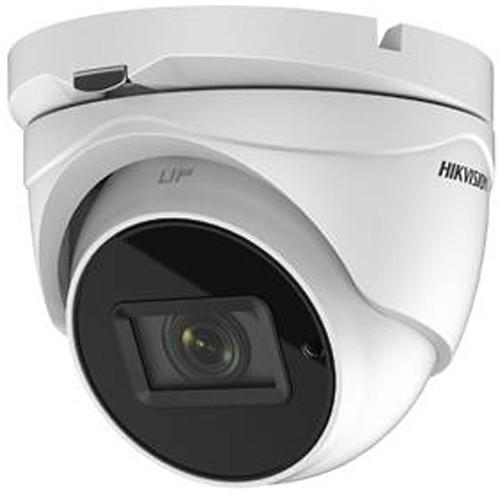

User Manual for Hikvision DS-2CE56H1T-IT3Z 5MP Outdoor HD-TVI Turret Camera with 2.8-12mm Varifocal Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CE56H1T-IT3Z 5MP Outdoor HD-TVI Turret
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision DS-2CE56H1T-IT3Z 5MP Outdoor HD-TVI Turret contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CE56H1T-IT3Z Motorized 5MP Outdoor HD-TVI Turret Camera from Hikvision is equipped with a 1/3" progressive scan CMOS sensor to capture 2642 x 1956 resolution video at up to 20 fps. Built-in EXIR technology delivers up to 131' of night vision. The 2.8-12mm motorized varifocal lens features a 27.7 to 86.8° horizontal field of view, ensuring a wide coverage area. HD-TVI technology allows the camera to transmit HD video over coaxial cables. This device is IP67-rated for outdoor use. - EXIR technology delivers up to 131' of night vision
- True day and night mode delivers image visibility at all times
- Auto and manual white balance
- Pan range of 0 to 360°, tilt range of 0 to 75°, and rotation range of 0 to 360°
- Smart IR, backlight compensation, sharpness, digital noise reduction, mirror, and bad pixel correction all help to ensure higher image quality and visibility
- Auto gain control support
- IP67-rated enclosure suitable for outdoor use
UPC: 842571104332 In the Box Hikvision DS-2CE56H1T-IT3Z 5MP Outdoor HD-TVI Turret Camera with 2.8-12mm Varifocal Lens & Night Vision Drill Template Mounting Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CE56H1T-IT3Z 5MP Outdoor HD-TVI Turret Camera with 2.8-12mm Varifocal Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56H1T-IT3Z Specs | | | Image Sensor | 1/3" 5MP progressive scan CMOS | | Effective Pixels (H x V) | 2642 x 1956 | | Minimum Illumination | Color: 0.01 lux at (f/1.2, AGC on)
B&W: 0 lux with IR
| | Shutter Time | NTSC: 1/30 to 1/50,000 s
PAL: 1/25 to 1/50,000 s
| | Lens | 2.8-12mm motorized varifocal lens | | Horizontal Field of View (degree) | 27.7 to 86.8° | | Lens Mount | M14 | | Day & Night | IR cut filter | | IR Range | Up to 131' (40 m) | | Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 75°
Rotate: 0 to 360° | | Synchronization | Internal | | Video Frame Rate | 2642 x 1956 at 20 fps | | HD Video Output | 1 x HD-TVI | | AGC (Automatic Gain Control) | Supported | | Day/Night Mode | Auto, color, B&W | | White Balance | Auto, manual | | Backlight Compensation | Supported | | Functions | Smart IR, brightness, sharpness, digital noise reduction, mirror, bad pixel correction | | | | Languages | English, Chinese | | Operating Temperature / Humidity | -40 to 140°F (-40 to 60°C)
Humidity: 90% or less (non-condensing)
| | IP Rating | IP67 | | Communication | Up-the-Coax Protocol: HIKVISION-C (HD-TVI Output) | | Power Supply | 12 VDC
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
