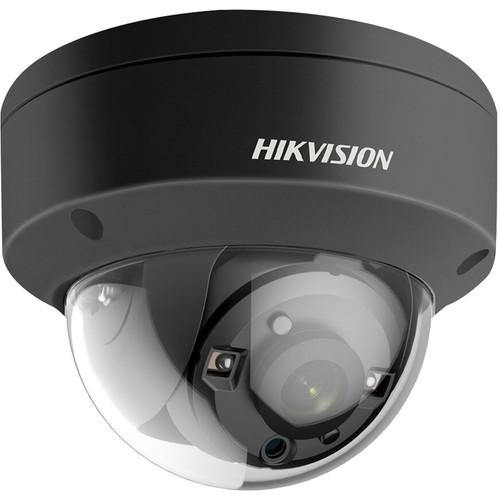

User Manual for Hikvision DS-2CE56H1T-VPIT 5MP Outdoor HD-TVI Dome Camera with Night Vision & 6mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CE56H1T-VPIT 5MP Outdoor HD-TVI Dome
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision DS-2CE56H1T-VPIT 5MP Outdoor HD-TVI Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Monitor an outdoor area with the black DS-2CE56H1T-VPIT 5MP Outdoor HD-TVI Dome Camera with Night Vision & 6mm Lens from Hikvision. This camera is equipped with a 1/3" progressive scan CMOS sensor to transmit 2592 x 1944 resolution video at 20 fps. Integrated EXIR technology delivers up to 65' of night vision. The 6mm fixed lens features a 46° horizontal field of view. HD-TVI technology allows the camera to transmit HD video over coaxial cables. This device is housed in an IP67-rated enclosure that is suitable for outdoor use. - IR cut filter allows for true day and night functionality
- Features a panning range of 0 to 340°, tilting range of 0 to 75°, and rotation range of 0 to 355°
- Auto and manual white balance
- Auto gain control support
- Smart IR, backlight compensation, sharpness, digital noise reduction, mirror, and bad pixel correction all help to ensure high image quality and visibility
- IP67-rated enclosure that is suitable for outdoor use
In the Box Hikvision DS-2CE56H1T-VPIT 5MP Outdoor HD-TVI Dome Camera with Night Vision & 6mm Lens (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CE56H1T-VPIT 5MP Outdoor HD-TVI Dome Camera with Night Vision & 6mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56H1T-VPIT Specs | | | Image Sensor | 5 MP 1/3" Progressive Scan CMOS | | Effective Pixels (H x V) | 2592 x 1944 | | Minimum Illumination | Color: 0.01 Lux at f/1.2 with AGC On
B&W: 0 lux with IR | | IR Range | Up to 65' / 20 m | | Shutter Time | NTSC: 1/30 to 1/50,000 Seconds
PAL: 1/25 to 1/50,000 Seconds | | Lens | 6mm Fixed Focal Lens | | Horizontal Field of View (degree) | 46° | | Lens Mount | M12 | | Day & Night | IR Cut Filter | | Angle Adjustment | Pan: 0 to 340°
Tilt: 0 to 75°
Rotate: 0 to 355° | | Synchronization | Internal | | Video Frame Rate | 2592 x 1944 at 20 fps | | HD Video Output | 1 x HD-TVI | | AGC (Automatic Gain Control) | Supported | | Day/Night Mode | Auto, Color, B&W | | White Balance | Auto, Manual | | Backlight Compensation | Supported | | Image Settings | Smart IR, Brightness, Sharpness, Digital Noise Reduction, Mirror, Bad Pixel Correction | | | | Languages | English, Chinese | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 90% or Less, Non-Condensing | | IP Rating | IP67 | | Communication | Up-the-Coax Protocol: HIKVISION-C HD-TVI Output | | Power Supply | 12 VDC ±30% | | Maximum Power Consumption | 5 W | | Dimensions |
