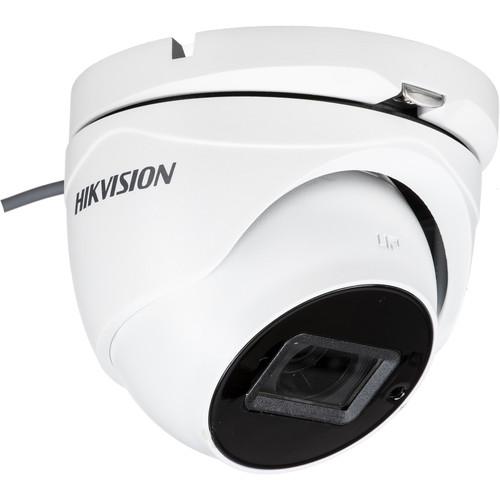

User Manual for Hikvision DS-2CE56H5T-IT3ZE 5MP Outdoor HD-TVI Turret Camera with Night Vision & 2.8-12mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CE56H5T-IT3ZE 5MP Outdoor HD-TVI Turret
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision DS-2CE56H5T-IT3ZE 5MP Outdoor HD-TVI Turret contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The ivory DS-2CE56H5T-IT3ZE from Hikvision uses a CMOS sensor to transmit 2560 x 1944 resolution video at 20 fps. Built-in EXIR 2.0 technology provides up to 130' of night vision. The 2.8-12mm motorized varifocal lens delivers a 94 to 32° horizontal field of view. The camera supports an HD-TVI signal output. Power-over-Coax eliminates additional cable requirements by delivering power over a coax cable. UTC (Up-the-Coax) protocol enables OSD menu control.
This turret camera is housed in an IP67-rated metal enclosure that is suitable for outdoor use. - EXIR 2.0 technology for low-light visibility
- Power-over-Coax and 12 VDC power
- IR cut filter for day and night functionality
- Camera pivots from 0 to 360° horizontally & from 0 to 75° vertically
- Digital wide dynamic range
- Smart IR, brightness, sharpness, DNR, and mirror functions
- CSA, FCC, CE, and cUL certified
- IP67-rated metal enclosure that is suitable for outdoor use
UPC: 842571111026 In the Box Hikvision DS-2CE56H5T-IT3ZE 5MP Outdoor HD-TVI Turret Camera with Night Vision & 2.8-12mm Lens (Ivory) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CE56H5T-IT3ZE 5MP Outdoor HD-TVI Turret Camera with Night Vision & 2.8-12mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56H5TIT3ZE Specs | Image Sensor | 5 MP CMOS Image Sensor | | Resolution | 2560 x 1944 | | Minimum Illumination | Color: 0.008 Lux at f/1.2 with AGC On
B&W: 0 Lux with IR | | Shutter Time | 1/50,000 to 1/30 Seconds (NTSC)
1/50,000 to 1/25 Seconds (PAL) | | Lens | 2.8-12mm Motorized Varifocal Lens | | Horizontal Field of View (degree) | 94-32° | | Optical Zoom | 4.3x | | Lens Mount | Ø14 | | Day & Night | Auto, Color, and B&W | | IR Cut Filter | Yes | | IR Range | Up to 130' / 40 m | | Camera Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 75°
Rotation: 0 to 360° | | Synchronization | Internal | | Frame Rates | 2560 x 1944 at 20 fps
2560 x 1944 at 12.5 fps (Not Available in PoC Mode)
2560 x 1440 at 30 fps
1920 x 1080 at 30 fps | | AGC (Automatic Gain Control) | Supported | | White Balance | ATW, MWB | | Backlight Compensation | Supported | | Digital WDR | Supported | | Language | English | | Functions | Smart IR, Brightness, Sharpness, DNR, and Mirror | | Video Output | 1 x Analog HD | | Communication | Up-the-Coax Protocol: HIKVISION-C (HD-TVI) | | Power Supply | 12 VDC ±25% / PoC.at | | Power Consumption | Maximum 8 W | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 90% or Less, Non-Condensing | | IP Rating | IP67 | | Material of Construction | Metal | | Dimensions | 5.29 x 4.88 x 4.39" / 134.3 x 123.9 x 111.4 mm | | Weight | 1.57 lb / 750 g | | | | Package Weight | 1.845 lb | | Box Dimensions (LxWxH) | 6.9 x 6.7 x 6.0" |
