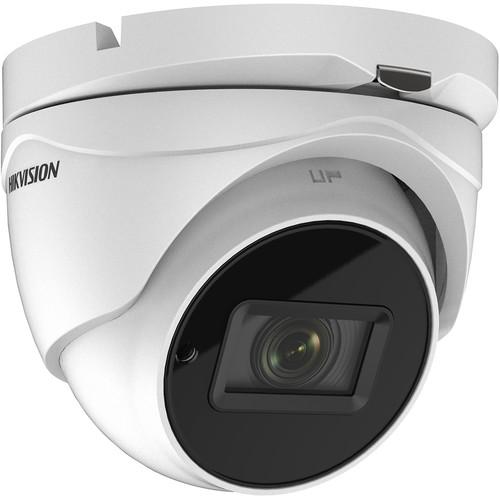

User Manual for Hikvision DS-2CE79U8T-IT3Z 8MP Outdoor HD-TVI Turret Camera with Night Vision & 2.8-12mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2CE79U8T-IT3Z 8MP Outdoor HD-TVI Turret
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision DS-2CE79U8T-IT3Z 8MP Outdoor HD-TVI Turret contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2CE79U8T-IT3Z 8MP Outdoor HD-TVI Turret Camera from Hikvision uses an 8MP progressive scan CMOS sensor to transmit 3840 x 2160 resolution video at 15 fps. Built-in EXIR 2.0 technology provides up to 260' of night vision. The 2.8-12mm motorized varifocal lens delivers a 108.1 to 45.6° horizontal field of view. The camera supports HD-TVI and CVBS signal outputs. UTC (Up-the-Coax) protocol enables OSD menu control.
This turret camera is housed in an IP67-rated metal enclosure that is suitable for outdoor use. - EXIR 2.0 technology for visibility in low-light conditions
- IR cut filter for day and night functionality
- Camera pivots horizontally from 0 to 360° and vertically from 0 to 75°
- 120 dB wide dynamic range
- White balance modes include auto, manual, and natural
- Functions include contrast, sharpness, saturation, mirror, defog, and highlight compensation
- CSA, FCC, CE, and cUL certified
UPC: 842571115383 In the Box Hikvision DS-2CE79U8T-IT3Z 8MP Outdoor HD-TVI Turret Camera with Night Vision & 2.8-12mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2CE79U8T-IT3Z 8MP Outdoor HD-TVI Turret Camera with Night Vision & 2.8-12mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE79U8T-IT3Z Specs | Image Sensor | 8 MP, Progressive Scan CMOS Sensor | | Resolution | 3840 x 2160 | | Minimum Illumination | Color: 0.003 lux at f/1.2 with AGC
B&W: 0 lux with IR | | Shutter Speed | 1/10,000 to 1/15 Seconds | | Lens | 2.8-12mm Motorized Varifocal Lens | | Slow Shutter | Maximum 16 Times | | Field of View | Horizontal: 108.1 to 45.6° | | Optical Zoom | 4.3x | | Lens Mount | Ø14 | | IR Range | 260' / 80 m | | IR Cut Filter | Yes | | Day/Night Mode | Auto, Color, B&W | | Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 75°
Rotation: 0 to 360° | | Signal System | NTSC | | Frame Rates | 8 MP at 15 fps
5 MP at 20 fps
4 MP at 30 fps
1080p at 30 fps | | Synchronization | Internal | | Wide Dynamic Range | 120 dB | | Automatic Gain Control | Supported | | White Balance | Auto, Manual, Natural | | Backlight Compensation | Supported | | 3D-DNR | Level 1 to 10 | | Language | English | | Functions | Contrast, Sharpness, Saturation, Mirror, Defog, Highlight Compensation | | Video Outputs | 1 x HD-TVI
1 x CVBS (75 Ohms, BNC) | | Communication | Up-the-Coax, HIKVISION-C Protocol (HD-TVI Output) | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Humidity | <90% (Non-Condensing) | | Power Supply | 12 VDC ±15% | | Power Consumption | Maximum 14 W | | IP Rating | IP67 | | Material | Metal | | Certifications | CSA, FCC, CE, cUL | | Dimensions | 5.29 x 4.88 x 4.39" / 134.3 x 123.9 x 111.4 mm | | Weight | 1.39 lb / 630 g | | | | Package Weight | 1.875 lb | | Box Dimensions (LxWxH) | 6.8 x 6.8 x 5.9" |
