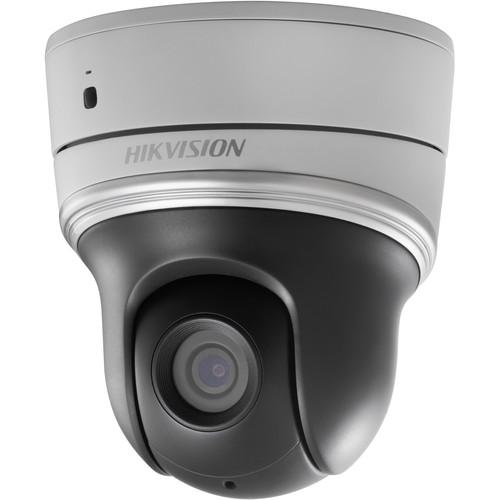

User Manual for Hikvision DS-2DE2204IW-DE3 W 2MP PTZ Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2DE2204IW-DE3 W 2MP PTZ Network
- Product category: Wireless Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wireless Cameras
|
User manual for the Hikvision DS-2DE2204IW-DE3 W 2MP PTZ Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The indoor DS-2DE2204IW-DE3/W 2MP PTZ Network Dome Camera from Hikvision has a 1/2.8" progressive scan CMOS to capture 1920 x 1080 resolution video at up to 30 fps. Smart IR enables an IR range up to 66' for visibility in low-light conditions. The 2.8-12mm varifocal lens delivers a 100-25° field of view. With PTZ functionality, the lens offers panning from 0 to 350°, tilting from 0 to 90°, and a 4x optical zoom. Two-way audio is supported thanks to an audio input and output. Additionally, the camera has a built-in microphone. Integrated PoE technology simplifies connectivity by enabling the transmission of data and power through one cable. An onboard microSD/SDHC/SDXC slot supports cards up to 128GB. microSD cards are available for purchase separately.
This device is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance products. - H.265+, H.265, H.264+, H.264, and MJPEG video compression
- 300 programmable PTZ presets
- 8 patrols with up to 32 presets for each patrol
- 10-1500mm working distance
- IR cut filter enables day and night functionality
- White balance modes include auto, manual, ATW, indoor, outdoor, daylight lamp, and sodium lamp
- Digital wide dynamic range
- 8 programmable privacy masks
- Alarm actions such as send email, notify surveillance center, upload to FTP / memory card / NAS, and trigger recording
- Up to 20 simultaneous live views
- Supports Internet Explorer 7 and above, Firefox 5.0 and above, Safari 5.02 and above
- NAS storage support, with the ability to transmit the videos from microSD card to the NAS
- Remote viewing with iOS and Android devices via Hik-Connect
- Compatible with iVMS-4200 video management system
- Lightning and surge protection
- Smart Functions
-
- Intrusion detection, line crossing detection, audio exception detection, motion detection, and video tampering detection
- Edge storage, smart search in smart NVR, and VCA playback
- Highlight compensation (HLC)
- Low bit rate and Region of Interest (ROI) encoding
- Alarm for network disconnection, IP address conflict, HDD full, HDD error, and illegal login
UPC: 842571110043 In the Box Hikvision DS-2DE2204IW-DE3/W 2MP PTZ Network Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2DE2204IW-DE3 W 2MP PTZ Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DE2204IW-DE3/W Specs | | | Image Sensor | 1/2.8" progressive scan CMOS | | Minimum Illumination | Color: 0.05 lux at f/2.0 with AGC on
B&W: 0.005 lux at f/2.0 with AGC on | | Day & Night | IR cut filter | | IR Range | 65.6' / 20 m | | Smart IR | Supported | | Focus Modes | Auto | | Auto Iris | Yes | | Shutter Speed | 1/10,000 to 1 sec | | Digital Zoom | 16x | | White Balance | Auto, manual, ATW, indoor, outdoor, daylight lamp, sodium lamp | | Automatic Gain Control | Auto, manual | | Backlight Compensation | Supported | | Wide Dynamic Range | Supported | | Digital Noise Reduction (DNR) | 3D-DNR | | Privacy Masking | 8 programmable privacy masks | | | | Focal Length | 2.8-12mm | | Field of View | 100-25° | | Working Distance | 10-1500 mm | | Optical Zoom | 4x | | Zoom Speed | Approximately 2 seconds | | Aperture Range | f/1.8-2.5 | | | | Detection | Intrusion detection, line crossing detection, audio exception detection, motion detection, and video tampering detection | | Recording | Edge storage, smart search in smart NVR, and VCA playback | | Image Enhancement | Highlight compensation (HLC) | | Encoding | Low bit rate and Region of Interest (ROI) encoding | | Alarm | Alarm for network disconnection, IP address conflict, HDD full, HDD error, and illegal login | | | | Streaming | Supports three streams
Main Stream:
60 Hz: 30 fps at 1920 x 1080, 1280 x 960, 1280 x 720
50 Hz: 25 fps at 1920 x 1080, 1280 x 960, 1280 x 720
Sub Stream:
60 Hz: 30 fps at 704 x 480, 640 x 480, 352 x 240
50 Hz: 25 fps at 704 x 576, 640 x 480, 352 x 288
Three Stream:
60 Hz: 30 fps at 1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240
50 Hz: 25 fps at 1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288 | | Video Compression | H.265+, H.265, H.264+, H.264, MJPEG | | Audio Compression | G.711alaw, G.711ulaw, G.722, G.726, MP2L2, PCM | | Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour | | Simultaneous Live View | Up to 20 | | User/Host | Up to 32 users
3 Levels: Administrator, Operator, and User | | Security | User authentication (ID and password), host authentication (MAC address), IP address filtering, HTTPS encryption, and IEEE 802.1x port-based network access control | | | | Range | Pan: 350°
Tilt: 0-90° | | Speed | Pan: 0.1-60°/sec
Tilt: 0.1-50°/sec | | Presets | 300 | | Patrol | 8 patrols, up to 32 presets per patrol | | Park Action | Preset, patrol, pattern, auto scan, tilt scan, random scan, frame scan, panorama scan | | Scheduled Tasks | Preset, patrol, pattern, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output | | Proportional Zoom | Supported | | Power-Off Memory | Supported | | Position Display | On/off | | | | Built-In Microphone | Yes | | Alarm I/O | 1 alarm input, 1 alarm output | | Alarm Linkage | Alarm actions such as send email, notify surveillance center, upload to FTP / memory card / NAS, trigger recording | | Audio I/O | 1 audio input, 1 audio output | | Ethernet | 1 RJ45 10/100M Ethernet interface | | Storage | Supports microSD/SDHC/SDXC cards up to 128 GB | | Client | iVMS-4200 | | API | Hikvision SDK, ONVIF Profiles S & G, CGI, ISAPI, and Hik-Connect | | Supported Web Browsers | Internet Explorer 7 and above, Firefox 5.0 and above, Safari 5.02 and above | | | | Power | 12 VDC and PoE (802.3af, Class 3)
9 W max | | Operating Temperature | -14 to 122°F / -10 to 50°C | | Operating Humidity | ≤90% | | Protection Level | TVS 4000 V lightning protection and surge protection | | Dimensions (Diam. x H) |
