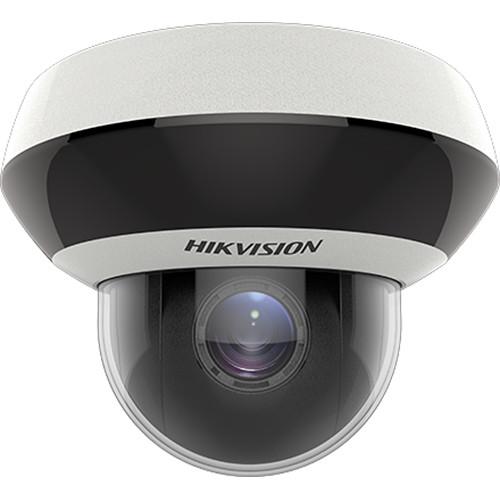

User Manual for Hikvision DS-2DE2A404IW-DE3 4MP Outdoor PTZ Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2DE2A404IW-DE3 4MP Outdoor PTZ Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2DE2A404IW-DE3 4MP Outdoor PTZ Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2DE2A404IW-DE3 4MP Outdoor PTZ Network Dome Camera from Hikvision uses a 1/3" progressive scan CMOS sensor to capture 2560 x 1440 resolution video at 24 fps. IR LEDs provide up to 65' of night vision. The 2.8-12mm motorized varifocal lens delivers a 100 to 33° horizontal field of view. The camera features a 0 to 330° pan range, a 0 to 90° tilt range, and 4x optical zoom. Two-way audio is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This PTZ camera is housed in an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. - DarkFighter technology for low-light conditions
- IR cut filter enables day and night functionality
- H.265+, H.265, H.264+, H.264, and MJPEG video compressions
- Scalable video coding (SVC)
- Region of interest (ROI) for each stream respectively supports four fixed areas
- 4x optical and 16x digital zooms
- 0.4 to 59" minimum working distance
- Auto, semi-auto, and manual focus modes
- 120 dB wide dynamic range
- Auto and manual gain control
- White balance modes include auto, manual, ATW, indoor, outdoor, fluorescent lamp, and sodium lamp
- Image enhancements include 3D-DNR, highlight compensation, electronic image stabilization (EIS), regional exposure, and regional focus
- 24 programmable privacy masks
- Analytics include motion, video tampering, exception, face, intrusion, line crossing, region entrance, region exiting, object removal, unattended baggage, and audio exception detection
- Dual VCA and ANR smart recording
- Up to 20 channels in simultaneous live view
- Up to 32 users with 3 host levels (admin, operator, and user)
- Compatible with Internet Explorer 8-11, Chrome 31.0-44, Firefox 30.0-51, iOS, Android, iVMS-4200, iVMS-4500, and Hik-Connect
- Network-attached storage support
- CSA, FCC, CE, and cUL certified
- TVS 4000V lightning, surge, and voltage transient protection
- PTZ Functions
-
- 0 to 330° pan range
- 0.1 to 100°/s pan speed
- 100°/s preset pan speed
- 0 to 90° tilt range
- 0.1 to 100°/s tilt speed
- 100°/s preset tilt speed
- 300 presets
- Support for proportional zoom and power-off memory
UPC: 842571119893 In the Box Hikvision DS-2DE2A404IW-DE3 4MP Outdoor PTZ Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2DE2A404IW-DE3 4MP Outdoor PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DE2A404IW-DE3 Specs | | | Sensor | 4 MP 1/3" CMOS | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.6 - f/2.7 | | Zoom | Optical: 4x
Digital: 16x | | Lens Field of View | Horizontal: 100 to 33°
Vertical: 53 to 18°
Diagonal: 119 to 37.5° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.005 Lux
B&W: 0 Lux | | Shutter Speed | 1/30,000 to 1 Seconds | | | | Streaming Resolution | 2560 x 1440 at 24 fps (16.384 Mb/s )
2048 x 1536 at 30 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | Open API Supports ONVIF, ISAPI, CGI, Hikvision SDK, Third-Party Management Platforms, and Hik-Connect | | Analytics | Motion Detection
Video Tampering Detection
Exception Detection
Face Detection
Intrusion Detection
Line Crossing Detection
Region Entrance Detection
Region Exiting Detection
Object Removal Detection
Unattended Baggage Detection
Audio Exception Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | Programmed Pan: 330° at 100°/s
Programmed Tilt: 90° (0 to 90°) at 100°/s | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 65.62' / 20 m | | Video Management Software | iVMS-4200, iVMS-4500, Hik-Connect | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 12 W | | Material of Construction | Aluminum, Plastic, Polymer | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
