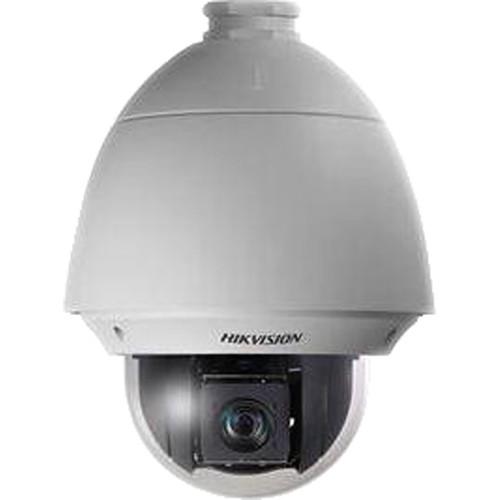

Hikvision DS-2DE4220W-AE 2MP Outdoor PTZ Network

User Manual for Hikvision DS-2DE4220W-AE 2MP Outdoor PTZ Network Dome Camera

• Product category: Wired IP Cameras Hikvision
• Brand: Hikvision
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hikvision Wired IP Cameras

Product description

• IR cut filter enables day and night functionality

• H.264 and MJPEG video compression

• 3D intelligent positioning

• 20x optical and 16x digital zoom

• Zoom speed of 3 seconds

• 0.4 to 39.3" working distance

• Auto, semi-auto, and manual focus modes

• 92 dB wide dynamic range

• Auto and manual gain control

• 3D-DNR

• White balance modes include auto, manual, ATW, indoor, outdoor, daylight lamp, and sodium lamp

• Backlight and highlight compensation

• Defog

• Electronic image stabilization (EIS)

• Low bit rate and ROI (region of interest) encoding

• Edge storage, smart search in NVR, and VCA playback

• 8 programmable privacy masks

• Analytics include intrusion, line crossing, audio exception, motion, and video tampering detection

• Up to 32 users with 3 host levels (admin, operator, and user)

• Up to 20 users in simultaneous live view

• 100M Ethernet port

• PoE injector included

• Alarm I/O

• Alarm for network disconnection, IP address conflict, HDD full, HDD error, and illegal login

• Alarm actions include send email, notify surveillance center, upload to FTP / memory card / NAS, and trigger recording

• Compatible with Internet Explorer 7 or higher, Chrome 18 or higher, Firefox 5.0 or higher, Safari 5.02 or higher, iOS, Android, and iVMS-4200

• CSA, FCC, CE, and cUL certified

• TVS 4000V lightning and surge protection

PTZ Functions
• • Endless panning
  • 5 to 90° tilt range
  • 0.1 to 160°/s pan speed
  • 0.1 to 120°/s tilt speed
  • 300 presets
  • 8 patrols (up to 32 presets per patrol)
  • Support for proportional zoom and power-off memory
  • Position display (on/off)
  • Park action includes preset, patrol, pattern, auto scan, tilt scan, random scan, frame scan, and panorama scan
  • Scheduled task includes preset, patrol, pattern, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, and aux output

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Hikvision Value Series Specs

Recording Media	SD (Up to 128 GB)
Pan/Tilt	Remote Pan: 360° at 160°/s Remote Tilt: 85° at 160°/s
Alarm I/O	1 / 1
I/O Connections	1 x RJ45 1 x Power
Video Management Software	iVMS-4200
Internal Storage	None
External Storage Options	NAS
Power Source	AC, PoE 802.3at (30 W)
Power Consumption	18 W
Operating Temperature	-22 to 149°F / -30 to 65°C
Operating Humidity	0 to 90%
IP Rating	IP66
IK Rating	IK10
