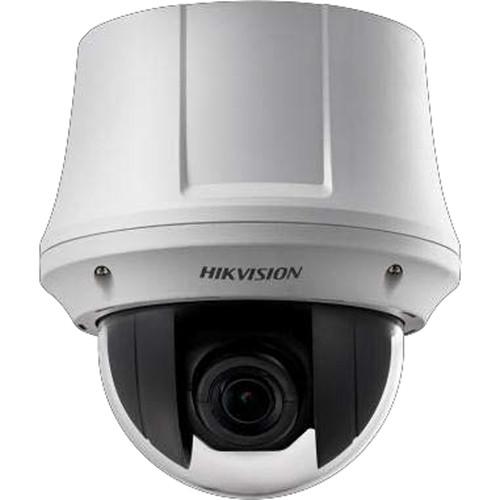

Product description The DS-2DE4220W-AE3 2MP PTZ Network Dome Camera from Hikvision uses a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. An IR cut filter enables day and night functionality. The 4.7-94mm varifocal lens delivers a 61.4-2.9° horizontal field of view. PTZ functionality offers endless panning, a 5 to 90° tilt range, and 20x optical zoom. Two-way audio is possible thanks to an audio input and output. A built-in memory slot supports SD/SDHC/SDXC cards up to 128GB. SD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This PTZ camera is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure for protection against dust, water, and vandalism. - IR cut filter enables day and night functionality
- H.264 and MJPEG compression
- White balance modes include auto, manual, ATW, indoor, outdoor, daylight lamp, and sodium lamp
- Digital wide dynamic range, backlight compensation, highlight compensation, defog, and EIS (electronic image stabilization)
- Auto and manual gain control
- 3D intelligent positioning function
- 20x optical and 16x digital zoom
- Zoom speed approximately 3 seconds
- Auto, semi-auto, and manual focus modes
- 0.39 to 39.4" lens working distance
- 8 programmable privacy masks
- Low bit rate and ROI (region of interest) encoding
- Alarm triggers include network disconnection, IP address conflict, HDD full, HDD error, and illegal login
- Alarm actions include send email, notify surveillance center, upload to FTP/memory card/NAS, and trigger recording
- Up to 32 users with 3 host levels (admin, operator, and user)
- Up to 20 users in simultaneous live view
- Edge storage, smart search in NVR, and VCA (video content analysis) playback
- Analytics include intrusion, line crossing, audio exception, motion, and video tampering detection
- iVMS-4200 video management software
- Compatible with Internet Explorer 7 or higher, Chrome 18 or higher, Firefox 5.0 or higher, and Safari 5.02 or higher
- IP66- and IK10-rated enclosure
- TVS 4000V lightning and surge protection
- CSA, FCC, CE, and cUL certified
- In-ceiling mount adapter included
- PTZ Functionality
-
- Endless panning
- 5 to 90° tilt range
- 0.1 to 160°/s pan speed
- 0.1 to 120°/s tilt speed
- 300 presets
- 8 patrols (up to 32 presets per patrol)
- Park action includes preset, patrol, pattern, auto scan, tilt scan, random scan, frame scan, and panorama scan
- Scheduled task includes preset, patrol, pattern, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, and AUX output
- Proportional zoom supported
- Power-off memory supported
- On/off position display
UPC: 842571100624 In the Box Hikvision DS-2DE4220W-AE3 2MP PTZ Network Dome Camera In-Ceiling Mount Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2DE4220W-AE3 2MP PTZ Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision Value Series Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 4.7 to 94mm | | Maximum Aperture | f/1.6 - f/3.5 | | Zoom | Optical: 20x
Digital: 16x | | Lens Field of View | Horizontal: 61.4 to 2.9° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.05 Lux
B&W: 0.01 Lux | | Shutter Speed | 1/10,000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps
1280 x 960 at 60 fps
1280 x 720 at 60 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722, G.726, MP2L2, PCM | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G | | Analytics | Intrusion, Line Crossing, Audio Exception, Motion, and Video Tampering Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Recording Media | SD (Up to 128 GB) | | Pan/Tilt | Remote Pan: 360°
Remote Tilt: 85° | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | Video Management Software | iVMS-4200 | | Internal Storage | None | | External Storage Options | NAS | | Power Source | AC, PoE 802.3at (30 W) | | Power Consumption | 18 W | | Operating Temperature | -14 to 122°F / -25 to 50°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
