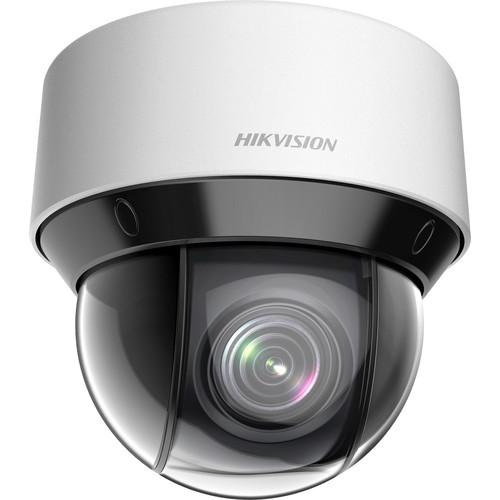

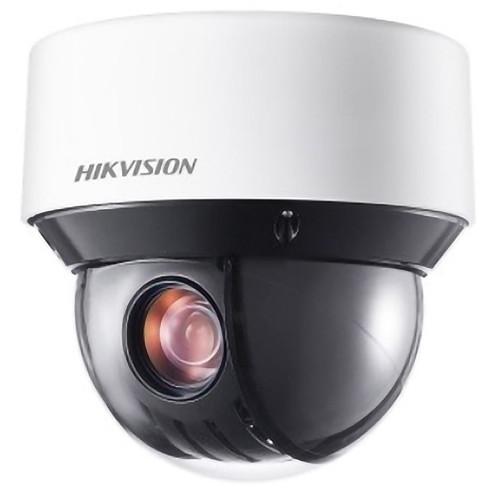

Hikvision DS-2DE4A425IW-DE 4MP Outdoor PTZ Network

User Manual for Hikvision DS-2DE4A425IW-DE 4MP Outdoor PTZ Network Dome Camera with Night Vision

• Product category: Wired IP Cameras Hikvision
• Brand: Hikvision
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hikvision Wired IP Cameras

Product description

• IR cut filter enables day and night functionality

• Smart IR

• H.265+, H.265, H.264+, H.264, and MJPEG video compression

• Scalable video coding (SVC) support

• White balance modes include auto, manual, ATW, indoor, outdoor, fluorescent lamp, and sodium lamp

• 120 dB wide dynamic range

• Image enhancements include backlight compensation, highlight compensation, 3D-DNR, defog, electronic image stabilization, regional exposure, and regional focus

• Auto and manual gain control

• 25x optical and 16x digital zoom

• Auto, semi-automatic, and manual focus modes

• 0.4 to 59" minimum working distance

• Analytics include motion detection, video tampering detection, exception detection, audio exception detection, face detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, and smart tracking

• 24 programmable privacy masks (only 8 masks are visible at one time)

• Region of interest for 4 fixed areas

• ANR and dual VCA smart recording

• Up to 32 users with 3 host levels (admin, operator, and user)

• Up to 20 users in simultaneous live view

• Audio I/O

• 2 alarm inputs and 2 alarm outputs

• Alarm actions include preset, patrol scan, pattern scan, memory card video record, trigger recording, notify surveillance center, upload to FTP/memory card/NAS, and send email

• 100M Ethernet

• Network-attached storage (NAS) support

• 12 VDC and PoE+ power

• Compatible with Internet Explorer 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51, iOS, Android, iVMS-4200, iVMS-4500, and Hik-Connect

• IP66-rated for outdoor use

• TVS 4000V lightning, surge, and voltage protection

• CSA, FCC, CE, and cUL certified

PTZ Functionality
• • Endless panning
  • -5 to 90° tilt range
  • 0.1 to 300°/s pan speed, 350°/s preset speed
  • 0.1 to 160°/s tilt speed, 200°/s preset speed
  • 300 presets
  • 8 patrols (up to 32 presets per patrol)
  • 4 pattern scans (records time over 10 minutes for each scan)
  • Support for proportional zoom, power-off memory, PTZ status display, and preset freezing
  • Park action includes preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, and panorama scan
  • Scheduled task includes preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, and aux output

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Hikvision DS-2DE4A425IW-DE Specs

Recording Media	microSD (Up to 256 GB)
Pan/Tilt	Remote Pan: 360° at 300°/s Remote Tilt: 95° (-5 to 90°) at 160°/s
Alarm I/O	2 / 2
I/O Connections	1 x RJ45 1 x Power
IR Range	165' / 50.29 m
Video Management Software	iVMS-4200, iVMS-4500, Hik-Connect
Internal Storage	None
External Storage Options	NAS
Power Source	DC, PoE 802.3at (30 W)
Power Consumption	18 W
Material of Construction	Aluminum, Plastic, Polymer, Stainless Steel
Operating Temperature	-22 to 149°F / -30 to 65°C
Operating Humidity	0 to 90%
IP Rating	IP66
