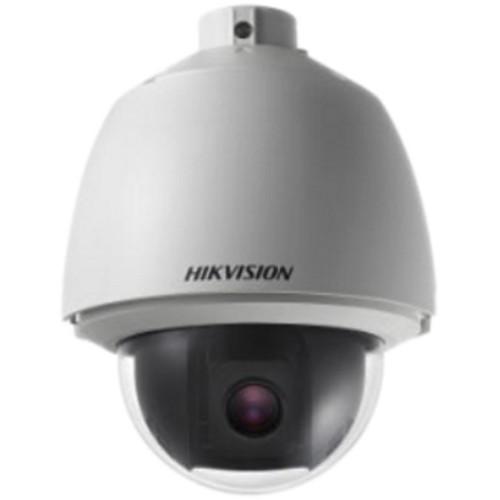

User Manual for Hikvision DS-2DE5130W-AE3 1.3MP 30x Vandal-Resistant PTZ Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2DE5130W-AE3 1.3MP 30x Vandal-Resistant PTZ
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2DE5130W-AE3 1.3MP 30x Vandal-Resistant PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2DE5130W-AE3 1.3MP 30x Vandal-Resistant PTZ Network Dome Camera from Hikvision uses a 1/3" progressive scan CMOS sensor and 4.3-129mm auto focus lens to capture 1280 x 960 resolution videos at up to 60 fps. The camera offers 30x optical zoom and supports pan and tilt functions. It also features a wide range of functions, including intrusion, line crossing, audio exception, and motion detection. - 1/3" progressive scan CMOS image sensor
- Captures 1280 x 960 resolution video at up to 60 fps
- 4.3-129mm auto iris, auto focus lens with 30x optical zoom
- Digital wide dynamic range
- 3D intelligent positioning function
- 3D digital noise reduction
- Minimum illumination of 0.05 lux (color) and 0.01 lux (B&W) at f/1.6, AGC on
- Smart Image Processing feature supports defog, highlight and backlight compensation
- Smart Codec feature offers low bitrate, ROI (Region of Interest) encoding
- Smart Detection function supports intrusion detection, line crossing detection, and audio exception detection
- H.264/MJPEG video compression
- H.264 encoding with Baseline/Main/High profiles
- 360° endless pan range and -5 to 90° tilt range
- 300°/sec pan preset speed and 200°/sec tilt preset speed
- 0.1 to 250°/sec manual pan speed and 0.1 to 150°/sec manual tilt speed
- 300 presets programmable; preset image freezing capability
- Eight patrols, up to 32 presets per patrol, and park action
- Supports eight privacy masks
- Power-off memory restores PTZ and lens status after reboot
- Two alarm inputs and one output
- One audio input and one output
- Supports up to 128GB (card not included) on-board storage
- Supports up to eight NAS storage for edge recording (allows you to transmit the videos from SD card to the NAS after network resumed)
- ONVIF (Open Network Video Interface Forum), CGI (Common Gateway Interface), and PSIA (Physical Security Interoperability Alliance) support to ensure greater interoperability between different platforms and compatibility
- HTTPS encryption and IEEE 802.1X port-based network access control
- Multiple network protocols supported
- Can be surface or in-ceiling mounted
- PoE (802.3at) / 24 VAC power supply
UPC: 813908029086 In the Box Hikvision DS-2DE5130W-AE3 1.3MP 30x Vandal-Resistant PTZ Network Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2DE5130W-AE3 1.3MP 30x Vandal-Resistant PTZ Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DE5130W-AE3 Specs | | | Image Sensor | 1/3" progressive scan CMOS | | Maximum Image Resolution | 1280 x 960 | | Minimum Illumination | Color: 0.05 lux (f/1.6, AGC on)
B&W: 0.01 lux (f/1.6, AGC on) | | Focus Modes | Auto/Semiautomatic/Manual | | DWDR | Supported | | Shutter Time | 1 to 1/10,000 sec | | AGC | Auto / Manual | | White Balance | Auto / Manual / ATW / Indoor / Outdoor / Daylight lamp / Sodium lamp | | Day & Night | IR cut filter | | Privacy Masking | 8 privacy masks programmable | | BLC | Supported | | DNR | 3D | | Detection | Intrusion detection, line crossing detection, audio exception detection, motion detection | | ROI | Supports ROI encoding | | | | Focal Length | 4.3-129mm | | Aperture Range | f/1.6 to 5 | | Optical Zoom | 30x | | Digital Zoom | 16x | | Zoom Speed | Approximately 3 sec (optical wide to tele) | | Angle of View | 57.4 to 2.8° (wide to tele) | | Minimum Working Distance | 10 to 1500 mm (wide to tele) | | | | Pan Range | 360° endless | | Tilt Range | -5 to 90° (auto flip) | | Pan Speed | Pan Manual Speed: 0.1 to 250°/sec
Pan Preset Speed: 300°/sec | | Tilt Speed | Tilt Manual Speed: 0.1 to 150°/sec
Tilt Preset Speed: 200°/sec | | Number of Presets | 300 | | Patrol | 8 patrols, up to 32 presets per patrol
Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | | Pattern | 4 pattern scans, record time over 10 minutes for each scan | | Scheduled Tasks | Auto scan / Frame scan / Random scan / Patrol / Pattern / Preset / Panorama scan / Tilt scan / Dome reboot / Dome adjust / Aux output | | | | Alarm Input / Output | 2/1 | | Alarm Trigger | Tampering alarm, network disconnect, IP address conflict, storage exception | | Alarm Actions | Preset, patrol, pattern, recording, relay output, upload center, upload FTP, email linkage | | | | Audio Input | 1 x mic-in/line-in interface
Line Input: 2 to 2.4 V p-p
Output Impedance: 1 kOhm, ±10% | | Audio Output | 1 x audio output interface, line level
Impedance: 600 Ohms | | | | Video Format | H.264/MJPEG | | Streams | Main Stream:
50 Hz: 25 fps (1280 x 960, 1280 x 720), 50 fps (1280 x 960, 1280 x 720)
60 Hz: 30 fps (1280 x 960, 1280 x 720), 60 fps (1280 x 960, 1280 x 720)
Sub Stream:
50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps(704 x 480, 640 x 480, 352 x 240)
Third Stream:
50 Hz:25 fps (1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps(1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240) | | Audio Compression | G.711ulaw/G.711alaw/G.726/MP2L2/G.722 | | | | Ethernet | 10Base-T/100Base-TX, RJ45 connector | | Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE | | Live View | Up to 20 simultaneous users | | User/Host Level | Up to 32 users
3 Levels: Administrator, operator, and user | | Security | User authentication (ID and PW)
Host authentication (MAC address)
IP address filtering | | Storage | Supports up to 128 GB microSD/SDHC/SDXC card
Supports edge recording | | | | Application Programming Interface | Open-ended API, support ONVIF, PSIA and CG, support cloud P2P | | Web Browser | IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+ | | | | Power Supply | 24 VAC and PoE (802.3at, class 4) | | Maximum Power Consumption | 18 W | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 90% or less | | Protection Level | TVS 4000 V Lightning Protection, Surge Protection, and Voltage Transient Protection | | Certification | FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC/EN60950-1 | | Dimensions | Surface: 7.22 x 9.56" / 183.4 x 243 mm
In-Ceiling: 9.65 x 9.29" / 245 x 236 mm | | Weight | 6.61 lb / 3 kg approximately |
