Hikvision DS-2DE5174-AE 1.3MP Outdoor PTZ Network

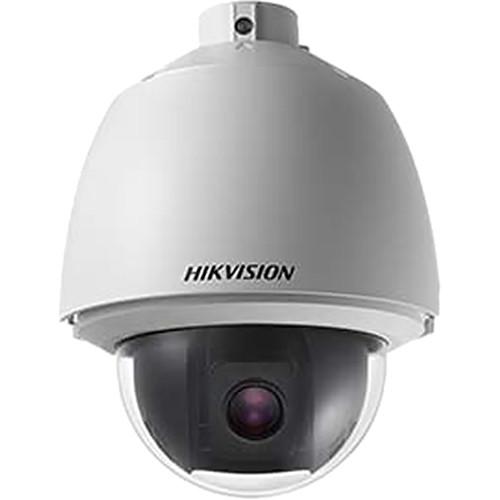

User Manual for Hikvision DS-2DE5174-AE 1.3MP Outdoor PTZ Network Dome Camera with Heater

• Product category: Wired IP Cameras Hikvision
• Brand: Hikvision
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hikvision Wired IP Cameras

Product description

• Built-in heater

• IR cut filter enables day and night functionality

• H.264 and MJPEG video compression

• 20x optical and 16x digital zooms

• Zoom speed of 3 seconds

• 0.4 to 39" minimum working distance

• Auto, semi-auto, and manual focus modes

• Digital wide dynamic range

• ≥52 dB

• Auto and manual gain control

• White balance modes include auto, manual, ATW, indoor, outdoor, daylight lamp, and sodium lamp

• 2 programmable privacy masks

• 3D intelligent positioning

• ROI (region of interest) supports 2 areas with adjustable levels

• Defog

• 3D-DNR

• Backlight and highlight compensation

• Audio I/O

• 24 VAC and PoE+ power

• 100M Ethernet port

• 2 alarm inputs and 1 relay output

• Analytics include intrusion, line crossing, motion, and audio exception detection

• Alarm triggers include analytics, dynamic analysis, tampering alarm, network disconnect, IP address conflict, and storage exception

• Alarm actions include preset, patrol, pattern, recording, relay output, upload center, upload FTP, and email linkage

• Up to 32 users with 3 host levels (admin, operator, and user)

• Up to 20 users in simultaneous live view

• Compatible with Internet Explorer 7 or higher, Chrome 18 or higher, Firefox 5.0 or higher, and Safari 5.02 or higher

• IEC/EN certified

PTZ Functions
• • Endless panning
  • 0.1 to 250°/s manual pan speed
  • 300°/s preset pan speed
  • -5 to 90° tilt range (auto flip)
  • 0.1 to 150°/s manual tilt speed
  • 200°/s preset tilt speed
  • 300 presets
  • 8 patrols (up to 32 presets per patrol)
  • Rotation speed can be adjusted automatically according to zoom multiples
  • Power-off memory, PTZ position display, and preset freezing supported
  • Park actions include pattern, pan scan, tilt scan, frame scan, panorama scan, and random scan
  • Scheduled task includes preset, patrol, pattern, pan scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, self-test action, and aux output

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Hikvision DS-2DE5174-AE Specs

Recording Media	microSD (Up to 64 GB)
Pan/Tilt	Manual Pan: 360° at 250°/s Manual Tilt: 95° (-5 to 90°) at 150°/s
Alarm I/O	2 / 1
I/O Connections	1 x RJ45 1 x Power
IR Illuminators	None
Internal Storage	None
Power Source	AC, PoE 802.3at (30 W)
Power Consumption	22 W (With Heater)
Operating Temperature	-22 to 149°F / -30 to 65°C
Operating Humidity	0 to 90%
IP Rating	IP66
IK Rating	IK10
