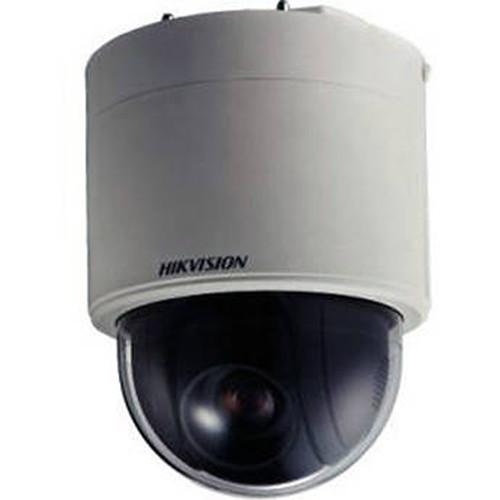

User Manual for Hikvision DS-2DE5184-AE3 2MP Indoor Day & Night PTZ Network Dome Camera with 4.7 to 94mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2DE5184-AE3 2MP Indoor Day &
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2DE5184-AE3 2MP Indoor Day & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2DE5184-AE3 2MP Indoor Day & Night PTZ Network Dome Camera from Hikvision utilizes a 1/2.8" progressive scan CMOS sensor and 4.7 to 94mm varifocal lens to capture images at a resolution of 1080p. It supports H.264 and MJPEG compression with simultaneous dual streaming. The camera features 3D DNR (Digital Noise Reduction), D-WDR (Digital Wide Dynamic Range), and BLC (Back Light Compensation). It comes with an IP66-rated housing that provides protection from ingress of dust and moisture, ensuring uninterrupted surveillance in exposed locations. - 2MP, 1/2.8" progressive scan CMOS sensor
- 20X optical zoom, 16X digital zoom
- 3D intelligent positioning
- 3D DNR (Digital Noise Reduction)
- DWDR (Digital Wide Dynamic Range)
- BLC (Back Light Compensation)
- 24VAC / PoE+ power supply
UPC: 816783017209 In the Box Hikvision DS-2DE5184-AE3 2MP Indoor Day & Night PTZ Network Dome Camera with 4.7 to 94mm Varifocal Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2DE5184-AE3 2MP Indoor Day & Night PTZ Network Dome Camera with 4.7 to 94mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DE5184-AE3 Specs | | | Image Sensor | 1/2.8" progressive scan CMOS | | Effective Pixels (H x V) | 2230K pixels | | Minimum Illumination | Color: 0.05 lux @ F1.6, AGC ON
B&W: 0.01 lux @ F1.6, AGC ON | | White Balance | Auto / Manual / ATW / Indoor / Outdoor / Daylight lamp / Sodium lamp | | AGC | Auto / Manual | | S / N Ratio | ≥ 50 dB | | Shutter Speed | 1/1 to 1/10,000 s | | Day & Night | IR cut filter | | Digital Zoom | 16x | | Privacy Masking | 2 privacy masks programmable | | Focus Modes | Auto / Semiautomatic / Manual | | | | Focal Length | 4.7 to 94 mm, 20x optical zoom | | Zoom Speed | Approximately 3 sec (optical wide-tele) | | Angle of View | 58.3° / 3.2° (Wide/Tele) | | Minimum Working Distance | 10/1000 mm (Wide/Tele) | | Aperture Range | f/1.6 to f/3.5 | | | | Range | Pan: 360° endless
Tilt: -5 to 90°(auto flip) | | Speed | Pan Manual Speed: 0.1° to 250°/s, Pan preset speed: 300°/s
Tilt Manual Speed: 0.1° to 150°/s, Tilt preset speed: 200°/s | | Zoom | Proportional: Rotation speed can be adjusted automatically according to zoom multiples | | Number of Presets | 256 | | Patrol | 8 patrols, up to 32 presets per patrol | | Action Type | Preset/Patrol/Pattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan/Dome reboot/Self-test action/Alarm output | | | | Audio Input / Output | 1 Mic in/Line in interface, Line input: 2 to 2.4 V (p-p)
Output Impedance: 1 KΩ, ±10%
1 Audio output interface, Line level, Impedance: 600 Ω | | | | Ethernet | 10Base-T / 100Base-TX, RJ45 connector | | Maximum Image Resolution | 1920 x 1080 | | Frame Rate | 50 Hz: 25 fps (1920 x 1080), 25 fps (1280 x 960) , 25 fps (1280 x 720)
60 Hz: 30 fps (1920 x 1080), 30 fps (1280 x 960), 30 fps (1280 x 720) | | Image Compression | H.264/MJPEG | | Audio Compression | G.711u /G.711a /G.726 | | Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE | | Live View | Up to 6 | | Storage | Built-in microSD card slot, up to 32 GB Card not included. | | User/Host Level | Up to 32 users, 3 Levels: Administrator, operator, user | | Security | User authentication (ID and PW), Host authentication (MAC address), IP address filtering | | | | Application Programming Interface | Open-ended API, support ONVIF, PSIA, and CGI | | Web Browser | IE 7+, IE 8, IE 9, Chrome 8+, Firefox 3.5+, Safari 5+ | | | | RS-485 Protocol | Pelco-P, Pelco-D, self-adaptive | | Power | 24 VAC, PoE+
Maximum 14 W | | Working Temperature | 14 to 122°F (-10 to 50°C) | | Humidity | 90% or less | | Protection Level | IP66 (outdoor),TVS 4,000 V lightning protection, surge protection and voltage transient protection | | Dimensions | Indoor: Ø6 x 9.5" (Ø156 x 243.0 mm) Ceiling: Ø7.2 x 9.6" (Ø182.8 x 243.8 mm)
In-Ceiling: Ø9.6 x 9.1" (Ø244 x 231.1 mm) | | Weight | 11 lb (5 kg) | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 19.0 x 12.5 x 12.5" |
