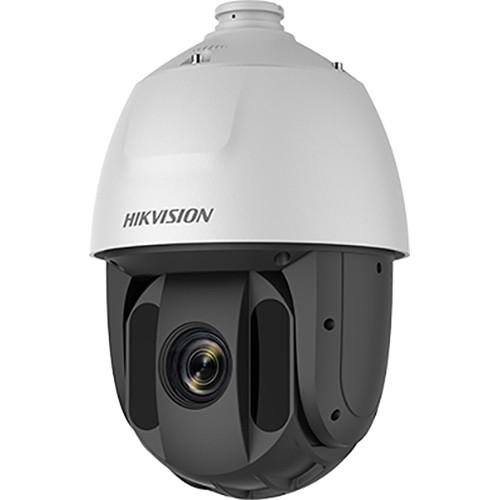

User Manual for Hikvision DS-2DE5225IW-AE 2MP Outdoor PTZ Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2DE5225IW-AE 2MP Outdoor PTZ Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2DE5225IW-AE 2MP Outdoor PTZ Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2DE5225IW-AE 2MP Outdoor PTZ Network Dome Camera from Hikvision uses a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. Smart IR provides up to 490' of night vision. The 4.8-120mm varifocal lens delivers a 57.6 to 2.5° horizontal field of view. The camera features endless panning, a -15 to 90° tilt range, and 25x optical zoom. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This PTZ camera complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. It is IP66 rated for outdoor use. - IR cut filter enables day and night functionality
- H.265+, H.265, H.264+, H.264, and MJPEG video compressions
- Scalable video coding (SVC)
- Region of interest (ROI) for each stream respectively support four fixed areas
- Zoom speed of 3.6 seconds
- 0.4 to 59" minimum working distance
- Auto, semi-auto, and manual focus modes
- 120 dB digital wide dynamic range
- Auto and manual gain control
- White balance settings include auto, manual, ATW, indoor, outdoor, fluorescent lamp, and sodium lamp
- Image enhancements include highlight compensation, backlight compensation, 3D-DNR, defog, electronic image stabilization, regional exposure, and regional focus
- 24 programmable privacy masks
- Dual VCA and ANR smart recording
- Analytics include motion, video tampering, exception, intrusion, line crossing, region entrance, region exiting, object removal, and unattended baggage detection
- Up to 32 users with three host levels (admin, operator, and user)
- Up to 20 channels in simultaneous live view
- Alarm linkage enables actions such as patrol scan, pattern scan, memory card video record, trigger recording, notify surveillance center, upload to FTP/memory card/NAS, and send email
- Compatible with Internet Explorer 8-11, Chrome 31.0-44, Firefox 30.0-51, iOS, Android, iVMS-4200, iVMS-4500, iVMS-5200, and Hik-Connect
- Network-attached storage support
- CSA, FCC, CE, and cUL certified
- TVS 6000V lightning, surge, and voltage transient protection
- PTZ Functions
-
- Endless panning
- 0.1 to 210°/s remote pan speed
- 120°/s preset pan speed
- -15 to 90° tilt range
- 0.1 to 80°/s remote tilt speed
- 80°/s preset tilt speed
- 300 presets
- 8 patrols (up to 32 presets per patrol)
- 4 pattern scans (record time over 10 minutes for each scan)
- Support for proportional zoom, power-off memory, PTZ status display, and preset freezing
- Park action includes preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, and panorama scan
- Scheduled task includes preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, and aux output
UPC: 842571117233 In the Box Hikvision DS-2DE5225IW-AE 2MP Outdoor PTZ Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2DE5225IW-AE 2MP Outdoor PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DE5225IW-AE Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 4.8 to 120mm | | Maximum Aperture | f/1.5 - f/3.5 | | Zoom | Optical: 25x
Digital: 16x | | Lens Field of View | Horizontal: 57.6 to 2.5°
Vertical: 34.4 to 1.4°
Diagonal: 64.5 to 2.9° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.005 Lux
B&W: 0 Lux | | Shutter Speed | 1/30,000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps (16.384 Mb/s ) | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | Open API Supports ONVIF Profiles S & G, ISAPI, CGI, Hikvision SDK, and Third-Party Management Platforms | | Analytics | Motion Detection
Video Tampering Detection
Exception Detection
Intrusion Detection
Line Crossing Detection
Region Entrance Detection
Region Exiting Detection
Object Removal Detection
Unattended Baggage Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | Manual Pan: 360° at 210°/s
Programmed Pan: 360° at 120°/s
Manual Tilt: 105° (-15 to 90°) at 80°/s
Programmed Tilt: 105° (-15 to 90°) at 80°/s | | I/O Connections | 1 x Power
1 x RJ45 | | IR Range | 490' / 149.35 m | | Video Management Software | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect | | Internal Storage | None | | External Storage Options | NAS | | Power Source | AC, PoE 802.3at (30 W) | | Power Consumption | 30 W | | Material of Construction | Aluminum, Polymer | | Operating Temperature | -22 to 149°F / -30 to 65°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | Dimensions |
