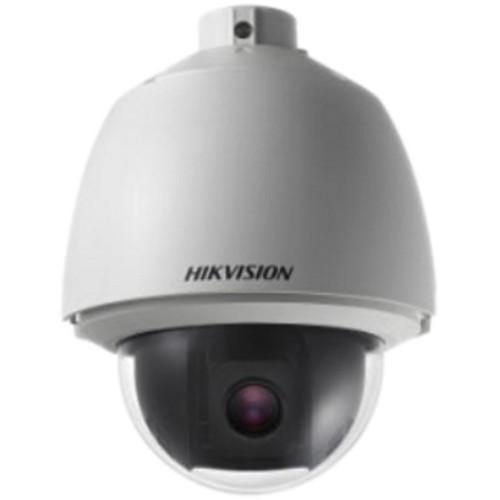

User Manual for Hikvision DS-2DE5230W-AE3 2MP 30x Network PTZ Dome Camera with 4.3-129mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2DE5230W-AE3 2MP 30x Network PTZ
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2DE5230W-AE3 2MP 30x Network PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2DE5230W-AE3 2MP 30x Network PTZ Dome Camera from Hikvision features a 1/3" progressive scan CMOS sensor and 4.3-129mm varifocal lens for capturing images at a maximum resolution of 1920 x 1080. The lens offers 30x optical zoom for capturing more details at long distances. The camera also features a wide range of smart functions such as intrusion detection, line crossing detection, audio exception, and motion detection. Basic Functions - Progressive scan CMOS sensor offers up to 1920 x 1080 resolution
- DWDR (Digital Wide Dynamic Range)
- 3D intelligent positioning function
- PoE / 24 VAC power supply
- 2 alarm inputs and 1 alarm outputs
- 1 audio input and 1 audio output
Smart Functions - Smart Image Processing: Supports defog and HLC/BLC (Backlight Compensation)
- Smart Detection: Supports intrusion detection, line crossing detection, and audio exception detection
Camera Functions - Auto iris, auto focus, auto white balance, backlight compensation, and auto day/night switch
- Minimum illumination of 0.05 lux (color) and 0.01 lux (B&W)
- Support for 8 privacy masking areas
PTZ Functions - 360° endless pan range and -5 to 90° tilt range
- 300°/s pan preset speed and 200°/s tilt preset speed
- 0.1 to 250°/s manual pan speed and 0.1 to 150°/s manual tilt speed
- 300 programmable presets with preset image freezing capability
- 8 patrols and up to 32 presets per patrol
- Power-Off Memory: Restore PTZ and lens status after reboot
Network Functions - H.264/MJPEG video compression
- H.264 encoding with Baseline/Main/High profile
- ROI (Region of Interest) encoding
- Onboard storage up to 128GB
- Supports up to 8 NAS storage drives
- Edge recording (transmit the videos from SD card to the NAS after network resumes)
- HTTPS encryption and IEEE802.1X port-based network access control
UPC: 813908029109 In the Box Hikvision DS-2DE5230W-AE3 2MP 30x Network PTZ Dome Camera with 4.3-129mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2DE5230W-AE3 2MP 30x Network PTZ Dome Camera with 4.3-129mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DE5230W-AE3 Specs | Image Sensor | 1/2.8" progressive scan CMOS | | Image Resolution | 1920 x 1080 | | Minimum Illumination | Color: 0.05 lux at f/1.6, AGC on
B&W: 0.01 lux at f/1.6, AGC on | | Day & Night | ICR | | Focus Modes | Auto / Semi-automatic / Manual | | Shutter Time | 1 to 1/10,000 sec | | Digital Zoom | 16x | | Zoom Speed | Approximately 3 sec (optical wide to tele) | | AGC | Auto / Manual | | Focal Length | 4.3-129mm | | Optical Zoom | 30x | | Angle of View | 65.5-2.11° (Wide-Tele) | | Minimum Working Distance | 0.39 to 59" (10 to 1500 mm) (Wide-Tele) | | Aperture Range | f/1.6-5.0 | | White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | | Privacy Masking | 8 privacy masks programmable | | Streams | Main Stream
50 Hz: 25 fps at 1920 x 108, 1280 x 960, 1280 x 720
60 Hz: 30 fps at 1920 x 108, 1280 x 960, 1280 x 720 | | Image Compression | H.264/MJPEG | | Audio Compression | G.711/G.726/MP2L2/G.722 | | Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE | | Smart Features | Intrusion detection, line crossing detection, audio exception detection, and motion detection
ROI encoding | | PTZ | Movement Range: Pan: 360° endless, Tilt: -5 to 90° (auto flip)
Pan Manual Speed: 0.1 to 250°/s, Pan Preset Speed: 300°/s
Tilt Manual Speed: 0.1 to 150°/s, Tilt Preset Speed: 200°/s
Number of Presets: 300
Patrol: 8 patrols, up to 32 presets per patrol
Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | | Alarm I/O | 2/1 | | Alarm Actions | Preset, Patrol, Pattern, Recording, Relay output, Upload center, Upload FTP, Email linkage | | Audio Input | 1 x mic in/Line in interface
Line Input: 2 to 2.4 V p-p
Output Impedance: 1 kOhms, ±10% | | Audio Output | 1 x audio output interface, line level
Impedance: 600 Ohms | | Ethernet | 10Base-T/100Base-TX, RJ45 connector | | Onboard Storage | Built-in microSD/SDHC/SDXC card slot
Supports up to 128 GB
Supports edge recording | | Live View | Number of Simultaneous Live Views: Up to 20 | | User/Host Level | Up to 32 users
3 Levels: Administrator, Operator, and User | | Security | User authentication (ID and PW)
Host authentication (MAC address)
IP address filtering | | Power | 24 VAC and PoE+ | | Power Consumption | Maximum 22 W | | Working Temperature | -22 to 149°F (-30 to 65°C) | | Humidity | 90% or less | | Web Browser | IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+ | | Dimensions | 7.2 x 9.6" (183.4 x 243 mm) | | Weight | 6.61 lb (3 kg) |
