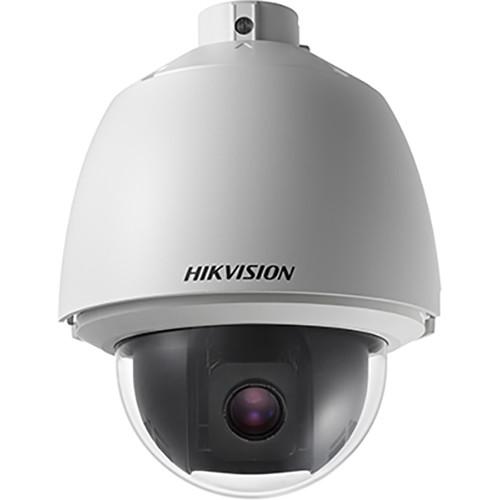

User Manual for Hikvision DS-2DE5232W-AE 2MP Outdoor PTZ Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2DE5232W-AE 2MP Outdoor PTZ Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2DE5232W-AE 2MP Outdoor PTZ Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Watch over your property with the DS-2DE5232W-AE 2MP Outdoor PTZ Network Dome Camera from Hikvision. Featuring a 2MP CMOS sensor and a 4.8-153mm varifocal lens, the camera captures video at resolutions up to 1920 x 1080 at 60 fps in a 55.6 to 2.04° field of view. The camera delivers color images down to 0.005 lux, and is equipped with an IR cut filter for enhanced day/night performance.
This camera has PTZ functionality, with 360° endless pan, 95° tilt, and 32x optical zoom. Audio input and output connections allow for two-way audio communication, while Hi-PoE technology makes for easy setup, enabling you to run just one cable for both data and power. The camera has a microSD card slot for edge storage and is rated IP66 and IK10 for weather and vandal resistance. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - Color images down to 0.005 lux at f/1.6 with AGC on
- 4.8-153mm 32x varifocal lens with autofocus
- 360° endless pan and 95° tilt
- H.265+, H.265, H.264+, H.264, and MJPEG video compression for efficient storage and bandwidth use
- 120 dB wide dynamic range
- Alarm input and output connections
- Audio input and output for two-way talk
- Backlight/highlight compensation
- 3D digital noise reduction
- Electronic image stabilization
- 24 programmable privacy masking zones
- Smart video analytics including intrusion detection, line crossing detection, region entrance detection, region exiting detection, object removal detection, and unattended baggage detection
- microSD card slot for edge storage supports up to 256GB (microSD card available separately)
- Runs on 24 VAC power or Hi-PoE
- IP66 rated for outdoor use
- IK10-rated vandal resistance
- TVS 6000V lightning protection, surge protection, and transient voltage protection
- cSA, FCC, CE, and UL certified
UPC: 842571116380 In the Box Hikvision DS-2DE5232W-AE 2MP Outdoor PTZ Network Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2DE5232W-AE 2MP Outdoor PTZ Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DE5232W-AE Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 4.8 to 153mm | | Maximum Aperture | f/1.2 - f/4.4 | | Zoom | Optical: 32x
Digital: 16x | | Lens Field of View | Horizontal: 55.6 to 2.04°
Vertical: 32.4 to 1.14°
Diagonal: 63 to 2.34° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.005 Lux
B&W: 0.001 Lux | | Shutter Speed | 1/30,000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps (16.4 Mb/s ) | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | CGI, Hikvision SDK | | Analytics | Motion Detection, Tamper Detection, Exception Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | Programmed Pan: 360° at 300°/s
Programmed Tilt: 95° (-5 to 90°) at 200°/s | | Alarm I/O | 2 / 1 | | I/O Connections | 1 x RJ45 | | Video Management Software | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect | | Certifications | CSA, UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | NAS | | Power Source | AC, PoE 802.3bt (60 W) | | Power Consumption | AC: 22 W | | Material of Construction | Aluminum, Plastic, Polymer | | Operating Temperature | -22 to 149°F / -30 to 65°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
