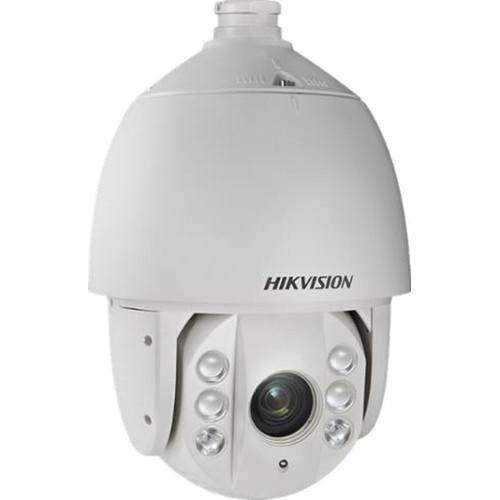

Product description The DS-2DE7130IW-AE 1.3MP 30x Outdoor Network PTZ Dome Camera from Hikvision is embedded with a 1/2.8" progressive scan CMOS chip, which makes DWDR and 1920 x 1080 real-time resolution recording possible. It features a 4.3-129mm lens with 30x optical zoom. The integrated mechanical IR cut filter enables true day/night functionality, and built-in IR LEDs provide up to 492' of night vision in total darkness. The camera also features a wide range of functions, including intrusion, line crossing, audio exception, and motion detection. It comes with an IP66 rating which protects it from harsh weather conditions. UPC: 813908026313 In the Box Hikvision DS-2DE7130IW-AE 1.3MP 30x Outdoor Network PTZ Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2DE7130IW-AE 1.3MP 30x Outdoor Network PTZ Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DE7130IW-AE Specs | | | Image Sensor | 1/2.8" progressive scan CMOS | | Maximum Image Resolution | 1920 x 1080 | | Minimum Illumination | Color: 0.05 lux (f/1.6, AGC on)
B&W: 0.01 lux (f/1.6, AGC on)
0 lux with IR on | | IR Distance | Up to 492' / 150 m | | Intensity Adjustment | IR Intensity: Automatically adjusted, depending on zoom ratio | | Focus Modes | Auto/Semiautomatic/Manual | | DWDR | Supported | | Shutter Time | 1 to 1/10,000 sec | | AGC | Auto/Manual | | White Balance | Auto / Manual / ATW / Indoor / Outdoor / Daylight lamp / Sodium lamp | | Day & Night | IR cut filter | | Privacy Masking | 8 privacy masks programmable | | Compensation | HLC/BLC | | DNR | 3D | | Detection | Intrusion detection, line crossing detection, audio exception detection, motion detection | | ROI | Supports ROI (Region of Interest) encoding | | | | Focal Length | 4.3-129mm | | Aperture Range | f/1.6 to 5 | | Optical Zoom | 30x | | Digital Zoom | 16x | | Zoom Speed | Approximately 3 sec (optical wide to tele) | | Angle of View | 65.5 to 2.11° (wide to tele) | | Minimum Working Distance | 10 to 1000 mm (wide to tele) | | | | Pan Range | 360° endless | | Tilt Range | -15 to 90° (auto flip) | | Pan Speed | Pan Manual Speed: 0.1 to 160°/sec
Pan Preset Speed: 240°/sec | | Tilt Speed | Tilt Manual Speed: 0.1 to 120°/sec
Tilt Preset Speed: 200°/sec | | Number of Presets | 300 | | Patrol | 8 patrols, up to 32 presets per patrol
Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | | Pattern | 4 pattern scans, record time over 10 minutes for each scan | | Scheduled Tasks | Auto scan / Frame scan / Random scan / Patrol / Pattern / Preset / Panorama scan / Tilt scan / Dome reboot / Dome adjust / Aux output | | | | Alarm Input / Output | 2/1 | | Alarm Trigger | Tampering alarm, network disconnect, IP address conflict, storage exception | | Alarm Actions | Preset, patrol, pattern, recording, relay output, upload center, upload FTP, email linkage | | | | Audio Input | 1 x Mic in / line in interface
Line Input: 2 to 2.4 V p-p
Output Impedance: 1 kOhm, ±10% | | Audio Output | 1 x audio output interface, line level
Impedance: 600 Ohms | | | | Video Format | H.264/MJPEG | | Streams | Main Stream:
50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720), 50 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720), 60 fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub Stream:
50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps(704 x 480, 640 x 480, 352 x 240)
Third Stream:
50 Hz:25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps(1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240) | | Audio Compression | G.711ulaw/G.711alaw/G.726/MP2L2/G.722 | | | | Ethernet | 10Base-T/100Base-TX, RJ45 connector | | Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE | | Live View | Up to 20 simultaneous users | | User/Host Level | Up to 32 users
3 Levels: Administrator, operator, and user | | Security | User authentication (ID and PW)
Host authentication (MAC address)
IP address filtering | | Storage | Supports up to 128 GB microSD/SDHC/SDXC card
Supports edge recording | | | | Application Programming Interface | Open-ended API, support ONVIF, PSIA and CG, support cloud P2P | | Web Browser | IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+ | | | | Power Supply | 24 VAC and Hi-PoE (802.3at, class 4) | | Maximum Power Consumption | 40 W | | Operating Temperature | -22 to 149°F / -30 to 65°C | | Operating Humidity | 90% or less | | Protection Level | IP66 rating
TVS 4000 V lightning protection, surge protection and voltage transient protection | | Certification | FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC/EN60950-1 | | Dimensions | 8.66 x 13.91" / 220 x 353.4 mm | | Weight | 9.92 Ib / 4.5 kg approximately |
