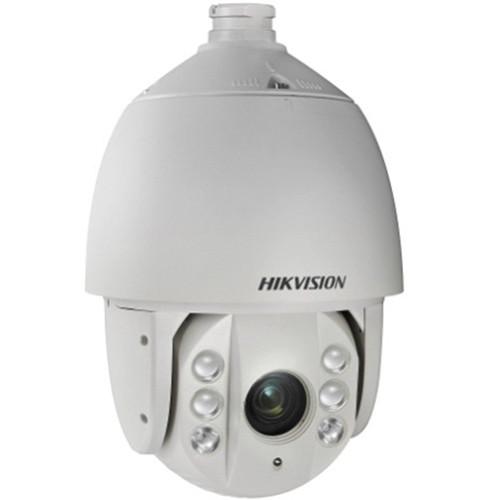

Product description The DS-2DE7147-AE 1.3 MP Outdoor PTZ Dome Camera from Hikvision is equipped with a 1/3" progressive-scan CMOS sensor for up to 1280 x 960 high-quality video resolution, and it uses a 4.7-94mm varifocal lens for a 58.3 to 3.2° horizontal field of view. In addition, you can pan the camera 360°, tilt it 90°, and optically zoom the camera up to 20x to choose the exact area you would like to monitor. You can also digitally zoom up to 16x for focusing within your field of view. Integrated IR LEDs provide up to 394' of night vision, enabling you to use the camera in complete darkness. Wide dynamic range, backlight compensation, digital noise reduction, and adjustable white balance enhancements assist in providing clear video footage, regardless of changing light levels. A line/mic input and output provides 2-way audio for listening and speaking to those you are monitoring. H.264 and M-JPEG dual streaming conserves bandwidth and storage, and a built-in microSD slot can support up to 64GB of storage. The RJ45 Ethernet connection includes PoE technology, enabling you to use one interface for both data transfer and power, minimizing the amount of wires required for setup. - Up to 1280 x 960 resolution at 30 fps for high-definition video in real time
- IR LEDs provide up to 394' of night vision for use at all times
- Easily pan, tilt, and rotate the camera for choosing a specific view area
- 360° endless panning at speeds of up to 240° per second
- -15 to 90° tilt range with speeds of up to 200° per second
- 20x optical zoom and 16x digital zoom with automatically adjustable rotation speeds
- Line/mic input and output for 2-way audio capability
- microSD slot supports up to 64GB microSD card (available separately)
- H.264 and M-JPEG dual streaming conserves bandwidth and storage
- DNR setting allows for cleaner images by removing unwanted noise
- Day/Night and backlight compensation for viewable images in changing light levels
- Wide Dynamic Range enables you to capture detailed pictures in ambient lighting
- Adjustable white balance creates accurate color depiction
- Automatic gain control maintains strong illumination signals
- Privacy-masking zones allow you to record only desired areas
- 16x digital zoom focuses within your field of view
- RJ45 Ethernet connection High-PoE for a minimum of wires during installation
UPC: 816783017216 In the Box Hikvision DS-2DE7147-AE 1.3 MP Outdoor PTZ Dome Camera with Night Vision Limited 3-Year Warranty Brochure PDF 900.6kbdqbcrssr Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2DE7147-AE 1.3 MP Outdoor PTZ Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DE7174-AE Specs | | | Image Sensor | 1/3" progressive-scan CMOS | | Effective Pixels | 1320K pixels | | Minimum Illumination | Color: 0.05 lux @ f/1.4 (1/30 seconds, 50 IRE, AGC On)
B&W: 0.01 lux @ f/1.4 (1/30 seconds, 50 IRE, AGC On)
0 lux with IR
Color: 0.02 lux @ f/1.4 (1/1 seconds, 50 IRE, AGC On)
B&W: 0.002 lux @ f/1.4 (1/1 seconds, 50 IRE, AGC On)
0 lux with IR | | White Balance | Auto / Manual / ATW / Indoor / Outdoor / Daylight lamp / Sodium lamp | | AGC | Auto / Manual | | S / N Ratio | ≥ 52 dB | | Digital Noise Reduction | 3D-DNR | | Backlight Compensation | HLC / BLC | | Defog | Supported | | Wide Dynamic Range | Digital | | Shutter Speed | 1 to 1/10,000 seconds | | Day & Night | IR cut filter | | Digital Zoom | 16x | | Privacy Masking | 2 x programmable privacy masks | | Focus Modes | Auto / Semiautomatic / Manual | | | | Focal Length | 4.7-94mm varifocal, 20x optical zoom | | Zoom Speed | Approximately 3 seconds (optical wide to tele) | | Angle of View | 58.3 to 3.2° (Wide to tele) | | Minimum Working Distance | 10 to 1000 mm (Wide to tele) | | Aperture Range | f/1.4 to f/3.5 | | | | Range | Pan: 360° endless
Tilt: -15 to 90° (auto flip) | | Speed | Pan Manual Speed: 0.1 to 160°/second,
Pan Preset Speed: 240°/second
Tilt Manual Speed: 0.1 to 120°/second
Tilt preset speed: 200°/second | | Zoom | Proportional: Rotation speed can be adjusted automatically according to zoom multiples | | Number of Presets | 300 | | Action Type | Pattern / Pan scan / Tilt scan / Frame scan / Panorama scan / Random scan | | Patrol | 8 patrols, up to 32 presets per patrol | | Additional Features | Power-off memory, PTZ position display, preset freezing | | Scheduled Tasks | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan / Dome reboot / Self-test action / Alarm output | | | | IR Distance | Up to 393.7' (120.0 m) | | Intensity Adjustment | Automatically adjusted, depending on the zoom ratio | | | | Audio Input | 1 x Mic/line in interface
Line Input: 2 to 2.4 V p-p
Output Impedance: 1 kOhms ±10% | | Audio Output | 1 x Output interface, line level
Impedance: 600 Ohms | | Alarm Input | 2 (0 to 5 VDC) | | Alarm Output | 1 x Relay output, alarm response actions configurable | | Alarm Trigger | Intrusion detection, Line crossing detection, Motion detection, Audio exception detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception | | Alarm Actions | Preset, Patrol, Pattern, Recording, Relay output, Upload center, Upload FTP, email linkage | | | | Ethernet | 10Base-T / 100Base-TX, RJ45 connector | | Maximum Image Resolution | 1280 x 960 | | Frame Rate | 50 Hz: 25 fps (1280 x 960), 25 fps (1280 x 720)
60 Hz: 30 fps (1280 x 960), 30 fps (1280 x 720) | | Image Compression | H.264 / M-JPEG | | ROI | Encoding: Supports 2 areas with adjustable levels | | Audio Compression | G.711 / G.722 / G.726 / MP2L2 | | Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE | | Live View | Up to 20 simultaneously | | Streams | Dual streaming | | Storage | Built-in microSD slot supports up to 64 GB | | User/Host Level | Up to 32 users
3 Levels: Administrator, Operator, User | | Security | User authentication (ID and PW), Host authentication (MAC address), IP address filtering | | | | Application Programming Interface | Open-ended API, supports ONVIF, PSIA, CGI, and Genetec
Support ezviz cloud P2P | | Web Browser | IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+ | | | | Power | High-PoE and 24 VAC
IR LED On: 30 W (max)
IR LED Off: 21 W (max) | | Working Temperature | -22 to 149°F (-30 to 65°C) | | Humidity | 90% or less | | Protection Level | IP66 (outdoor),TVS 4,000 V lightning protection, surge protection, and voltage transient protection | | Dimensions | Ø8.6 x 13.9" (Ø220 x 353.4 mm) | | Weight | 9.9 lb (4.5 kg) |
