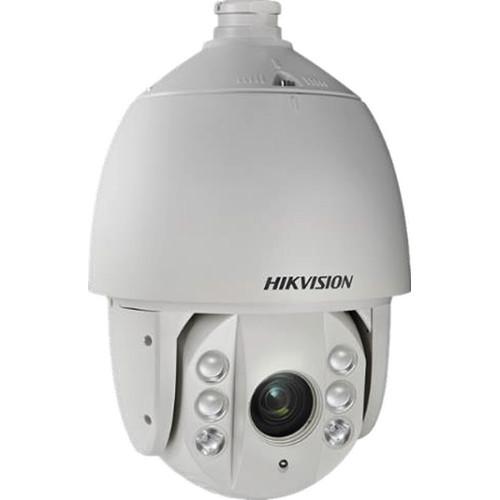

Product description The DS-2DE7230IW-AE 2MP Outdoor PTZ Network Dome Camera with Night Vision from Hikvision has a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. IR LEDs deliver a night vision range up to 492'. The 4.3-129mm varifocal lens has a 65.5-2.11° horizontal field of view. PTZ functionality offers 360° endless panning, a -15 to 90° tilting range, and 30x optical zoom. Two-way audio is possible thanks to an audio input and output. A built-in memory slot supports microSD/SDHC/SDXC cards up to 128GB. microSD cards are available separately.
This PTZ camera is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. - Two-way audio communication via audio input and output
- RJ45 Ethernet with PoE technology
- H.264 and MJPEG compression
- Smart features include intrusion detection, line crossing detection, audio exception detection, and motion detection
- IR cut filter enables day and night functionality
- 3D intelligent positioning function
- Digital wide dynamic range
- Backlight and highlight compensation
- 8 programmable privacy masks
- 2 x alarm inputs and 1 x alarm output
- Alarm triggers include tampering alarm, network disconnect, IP address conflict, and storage exception
- Alarm actions include preset, patrol, pattern, recording, relay output, upload center, upload FTP, and email linkage
- Up to 32 users with 3 host levels (admin, operator, and user)
- IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism
- Lightning, surge, and voltage transient protection
UPC: 813908027594 In the Box Hikvision DS-2DE7230IW-AE 2MP Outdoor PTZ Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2DE7230IW-AE 2MP Outdoor PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DE7230IW-AE Specs | | | Image Sensor | 1/2.8" progressive scan CMOS | | Minimum Illumination | Color: 0.05 lux at f/1.6 with AGC on
B&W: 0.01 lux at f/1.6 with AGC on
B&W: 0 lux with IR | | Maximum Image Resolution | 1920 x 1080 | | Focal Length | 4.3-129mm | | Optical Zoom | 30x | | Digital Zoom | 16x | | Zoom Speed | Approximately 3 seconds (optical wide to tele) | | Horizontal Field of View (degree) | 65.5-2.11° | | Minimum Working Distance | 0.39 to 39" / 10 to 1000 mm | | Aperture Range | f/1.6-5.0 | | Focus Modes | Auto, semi-automatic, manual | | DWDR | Supported | | Shutter Time | 1/10,000 to 1 sec | | AGC | Auto, manual | | White Balance | Auto, manual, ATW, indoor, outdoor, daylight lamp, sodium lamp | | Day/Night | IR cut filter | | Privacy Masking | 8 privacy masks programmable | | Enhancements | 3D-DNR, defog, HLC/BLC | | | | Range | Pan: 360° endless
Tilt: -15 to 90° (auto flip) | | Speed | Pan Manual Speed: 0.1 to 160°/s
Pan Preset Speed: 240°/s
Tilt Manual Speed: 0.1 to 120°/s
Tilt Preset Speed: 200°/s | | Number of Presets | 300 | | Patrol | 8 patrols, up to 32 presets per patrol | | Patterns | 4 pattern scans, record time over 10 minutes for each scan | | Park Action | Preset, patrol, pattern, pan scan, tilt scan, random scan, frame scan, panorama scan | | Scheduled Tasks | Auto scan, frame scan, random scan, patrol, pattern, preset, panorama scan, tilt scan, dome reboot, dome adjust, aux output | | | | Detection | Intrusion detection, line crossing detection, audio exception detection, and motion detection | | ROI | Supported | | | | IR Range | Up to 492' / 150 m | | Intensity | Automatically adjusted, depending on the zoom ratio | | | | Alarm I/O | 2/1 | | Alarm Trigger | Tampering alarm, network disconnect, IP address conflict, storage exception | | Alarm Actions | Preset, patrol, pattern, recording, relay output, upload center, upload FTP, email linkage | | | | Audio Input | 1 x mic in/line in interface
Line Input: 2 to 2.4 V p-p
Output Impedance: 1 kOhm, ±10% | | Audio Output | 1 x audio output interface, line level, impedance 600 Ohms | | | | Ethernet | 10Base-T/100Base-TX, RJ45 connector | | Streaming | Supports three streams
Main Stream:
60 Hz: 30 fps at 1920 x 1080, 1280 x 960, 1280 x 720
60 fps at 1280 x 960, 1280 x 720
50 Hz: 25 fps at 1920 x 1080, 1280 x 960, 1280 x 720
50 fps at 1280 x 960, 1280 x 720
Sub Stream:
60 Hz: 30 fps at 704 x 480, 640 x 480, 352 x 240
50 Hz: 25 fps at 704 x 576, 640 x 480, 352 x 288
Third Stream:
60 Hz: 30 fps at 1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240
50 Hz: 25 fps at 1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288 | | Image Compression | H.264, MJPEG | | Audio Compression | G.711
