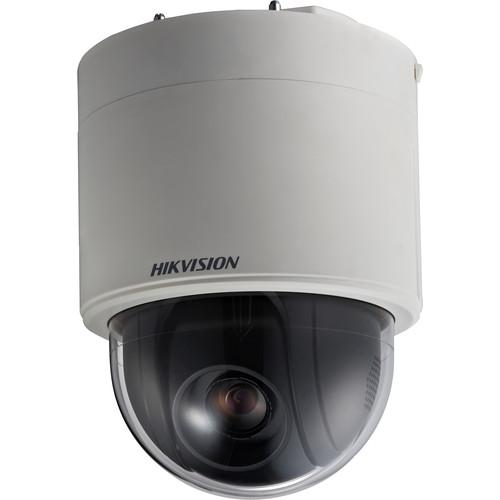

User Manual for Hikvision DS-2DF5232X-AE3 2MP PTZ Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2DF5232X-AE3 2MP PTZ Network Dome
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2DF5232X-AE3 2MP PTZ Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2DF5232X-AE3 2MP PTZ Network Dome Camera from Hikvision features a 1/2.8" progressive scan CMOS sensor and 4.5-144mm varifocal lens to capture 1920 x 1080 resolution video. With PTZ functionality, the lens can be panned 360° and tilted -5 to 90°, and optically zoomed by 32x magnification. There are inputs and outputs for audio components as well as an alarm system, and an RJ45 port provides Ethernet connectivity. A Wide Dynamic Range of up to 120 dB allows the camera to capture images under varied lighting conditions, including backlight and low light. The camera features a built-in microSD/SDHC/SDXC card slot that can support up to 256GB for on-board storage, and it is ONVIF-compliant for use in a large range of locations. - Wide Dynamic Range (WDR) and Digital Noise Reduction (3D-DNR) help the camera produce clear images in varying lighting conditions
- Support H.265+/H.265 video compression
- Up to 32 users, 20 simultaneously
UPC: 842571108545 In the Box Hikvision DS-2DF5232X-AE3 2MP PTZ Network Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2DF5232X-AE3 2MP PTZ Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DF5232X-AE3 Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 4.5 to 144mm | | Maximum Aperture | f/1.6 - f/4.4 | | Zoom | Digital: 16x
Optical: 32x | | Lens Field of View | Horizontal: 61.4 to 2.1°
Vertical: 40.7 to 1.3°
Diagonal: 70.0 to 2.5° | | Day/Night | Yes | | Minimum Illumination | Color: 0.05 Lux
B&W: 0.01 Lux | | Shutter Speed | 1/30,000 to 1 Seconds | | | | Streaming Resolution | 1290 x 1080 at 60 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Built-In Mic | No | | Built-In Speaker | No | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection | | Supported Protocols | Bonjour, DHCP, DNS, DynDNS, FTP, HTTP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | Open-ended, ONVIF, CGI, HIKVISION SDK, and Third-Party Management Platform | | Analytics | Manual, Auto, and Event Tracking | | Event Trigger | Yes | | Event Action | Recording, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | Remote Pan: 360° at 540°/s
Remote Tilt: 95° (-5 to 90°) at 400°/s | | Alarm I/O | 7 / 2 | | I/O Connections | 1 x RJ45 | | Video Management Software | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect | | Internal Storage | None | | External Storage Options | NAS | | Power Source | AC, PoE 802.3at (30 W) | | Power Consumption | AC: 60 W
PoE: 50 W | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 90% | | Dimensions |
