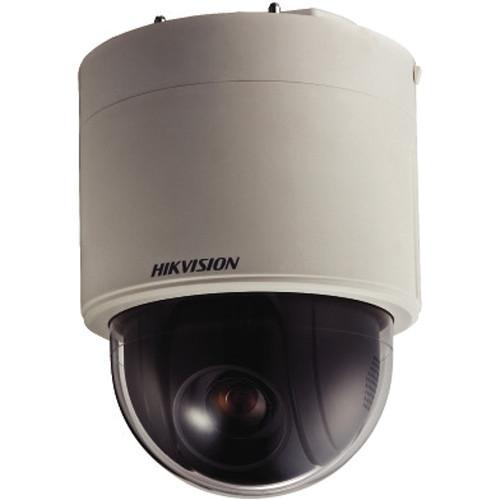

User Manual for Hikvision DS-2DF5286-AE3 2MP Full HD Indoor PTZ Dome Network Camera Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2DF5286-AE3 2MP Full HD Indoor
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2DF5286-AE3 2MP Full HD Indoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2DF5286-AE3 2MP Full HD Indoor PTZ Dome Network Camera from Hikvision incorporates a 1/2.8” progressive scan CMOS sensor that captures clear images up to a resolution of 1920 x 1080. With 30x optical zoom, the camera is able to zoom in on distant objects without compromising depth and clarity. The 3D DNR eliminates image noise, providing smooth images. - 1/2.8" progressive scan CMOS
- 30x optical zoom, 16x digital zoom
- True day/night, 3D DNR, digital WDR
- 3D intelligent positioning
- Supports 24 VAC/PoE+ power supply
In the Box Hikvision DS-2DF5286-AE3 2MP Full HD Indoor PTZ Dome Network Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2DF5286-AE3 2MP Full HD Indoor PTZ Dome Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DF5286-AE3 Specs | | | Image Sensor | 1/2.8" Progressive Scan CMOS | | Effective Pixels | 1920 x 1080 | | Min. Illumination | Color : 0.4 lux (F1.6, 1/30 sec, 50 IRE, AGC On),
B&W : 0.03 lux (F1.6, 1/30 sec, 50 IRE, AGC On) | | White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | | AGC (Automatic Gain Control) | Auto / Manual | | S/N Ratio | >52 dB | | Day & Night | IR Cut Filter | | Digital Zoom | 16x | | Digital Noise Reduction (DNR) | 3D DNR | | Wide Dynamic Range | 128x Digital WDR | | Shutter Speed | 1 to 1/10,000 sec | | Focus Modes | Auto/Semi-automatic/Manual | | | | Focal Length | 4.3 to 129 mm, 30x | | Zoom Speed | Approximately 3 sec (Optical Wide-Tele) | | Angle of View | 58.9 to 2.11° (Wide-Tele) | | Minimum Working Distance | 10 to 1500 mm (Wide-Tele) | | Aperture Range | F1.4 to F5.0 | | | | Pan/Tilt | Pan: 360° endless; Tilt: 5 to 90° (Auto-flip) | | Pan / Tilt Speed | Pan Manual Speed: 0.1 to 250°/sec, Pan Preset Speed: 300°/sec
Tilt Manual Speed: 0.1 to 150°/sec, Tilt Preset Speed: 200°/sec | | Zoom | Rotation speed can be adjusted automatically according to zoom multiples | | Number of Presets | 256 | | Patrol | 8 patrols, up to 32 presets per patrol | | Memory | Supports power-off memory | | Action Type | Pattern/pan scan/tilt scan/frame scan/panorama scan/random scan | | | | Audio Input | Optional input (LINE input), 2 to 2.4 Vp-p; output impedance: 1 kΩ, ±10% | | Audio Output | Line level, impedance: 600 Ω | | | | Ethernet | 10Base-T/100Base-TX, RJ45 connector | | Maximum Image Resolution | 1920 x 1080 | | Frame Rate | 60 Hz: 30 fps (1920 x 1080), 30 fps (1280 x 960), 30 fps (1280 x 720) | | Image Compression | H.264/MPEG4 | | Audio Compression | G.711u/ G.711a/ G.726 | | Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE | | Live View | Up to 6 | | Streaming | Dual streams | | Memory Card Supported | MicroSD slot, up to 32 GB | | User/Host Level | Up to 32 users,3 levels: Administrator, Camera control, Live view only | | Security | User authentication (ID and PW), Host authentication (MAC address), IP address filtering | | Application Programming Interface | Open-ended API, support ONVIF, PSIA and CGI | | Web Browser | IE 7, IE 8, IE 9, Chrome 8+, Firefox 3.5+, Safari 5+ | | | | RS-485 Support | HIKVISION, Pelco-P, Pelco-D, self-adaptive | | Working Temperature | 14 to 122°F (-10 to 50°C) | | Humidity | 90% or less | | Protection Level | IP66 standard (outdoor dome)
TVS 4000 V lightning protection, surge protection and voltage transient protection | | Power | 24 VAC/PoE+
Maximum 20 W | | Dimensions | Φ8.66 × 12.02" (200 × 305 mm) Outdoor
Φ7.22 × 9.56" (183.4 × 243 mm) Ceiling | | Weight | 11.02 lb (5.02 kg) |
