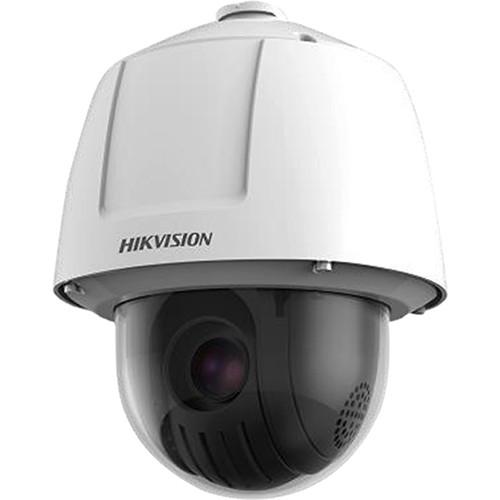

Hikvision DS-2DF6236-AEL 2MP Outdoor PTZ Network

User Manual for Hikvision DS-2DF6236-AEL 2MP Outdoor PTZ Network Dome Camera

• Product category: Wired IP Cameras Hikvision
• Brand: Hikvision
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hikvision Wired IP Cameras

Product description

• Darkfighter technology for visibility in low-light conditions

• IR cut filter enables day and night functionality

• H.264 and MJPEG video compression

• Scalable video coding (SVC)

• 36x optical and 16x digital zooms

• Zoom speed of 3.3 seconds

• 0.4 to 59" minimum working distance

• Auto, semi-auto, and manual focus modes

• 120 dB wide dynamic range

• ≥55 dB S/N ratio

• Auto and manual gain control

• White balance modes include auto, manual, ATW, indoor, outdoor, daylight lamp, and sodium lamp

• 24 programmable privacy masks with optional colors and mosaics

• 3D intelligent positioning

• ROI (region of interest) supports 24 areas with adjustable levels

• Optical defog

• 3D-DNR

• Electronic image stabilization (EIS)

• Backlight and highlight compensation

• BNC monitor output

• Audio I/O

• 100M Ethernet port

• 7 alarm inputs and 2 alarm outputs

• Smart tracking

• Analytics include motion, intrusion, line crossing, audio exception, region entrance, and region exiting detection

• Alarm triggers include analytics, dynamic analysis, tampering alarm, network disconnect, IP address conflict, and storage exception

• Alarm actions include preset, patrol, pattern, microSD/SDHC card recording, relay output, notification on client, send email, upload to FTP, and trigger channel

• HIKVISION, Pelco P, Pelco D, and self-adaptive RS-485 protocols

• Up to 32 users with 3 host levels (admin, operator, and user)

• Up to 20 users in simultaneous live view

• Compatible with Internet Explorer 7 or higher, Chrome 18 or higher, Firefox 5.0 or higher, and Safari 5.02 or higher

• FCC, CE, UL, RoHS, and IEC/EN certified

• TVS 4000V lightning, surge, and voltage transient protection

PTZ Functions
• • Endless panning
  • 0.1 to 300°/s manual pan speed
  • 540°/s preset pan speed
  • -15 to 90° tilt range (auto flip)
  • 0.1 to 240°/s manual tilt speed
  • 400°/s preset tilt speed
  • 300 presets
  • 8 patrols (up to 32 presets per patrol)
  • 4 patterns (recording time not more than 10 minutes per pattern)
  • Park actions include preset, patrol, pattern, auto scan, tilt scan, random scan, frame scan, and panorama scan
  • Scheduled task includes preset, patrol, pattern, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, and aux output

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Hikvision DS-2DF6236 Specs

Recording Media	microSD (Up to 128 GB)
Pan/Tilt	Manual Pan: 360° at 300°/s Manual Tilt: 105° (-15 to 90°) at 240°/s
Alarm I/O	7 / 2
I/O Connections	1 x RJ45 1 x Power 1 x BNC 1 x 9-Pin Serial (RS-485)
IR Illuminators	None
Internal Storage	None
Power Source	AC, PoE 802.3bt (60 W)
Power Consumption	60 W
Operating Temperature	-40 to 149°F / -40 to 65°C
Operating Humidity	0 to 90%
IP Rating	IP67
IK Rating	IK10
