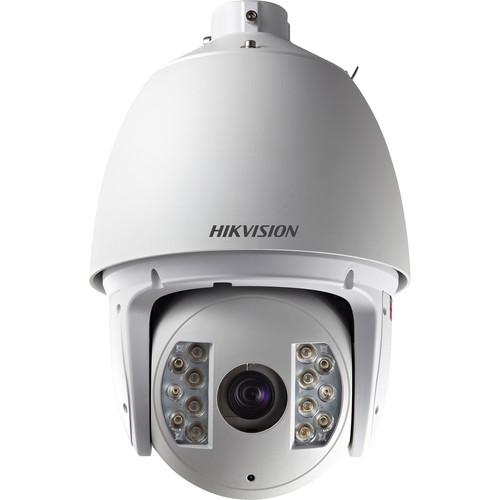

User Manual for Hikvision DS-2DF7232IX-AEL 2MP Outdoor PTZ Network Dome Camera with Night Vision & Wiper Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2DF7232IX-AEL 2MP Outdoor PTZ Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2DF7232IX-AEL 2MP Outdoor PTZ Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2DF7232IX-AEL(W) 2MP Outdoor PTZ Network Dome Camera from Hikvision is a 1/2.8" progressive-scan sensor camera that supports streaming at resolutions up to 1920 x 1080 at 60 fps. It has a 4.5-144mm lens with an optical zoom of 32x and an IR range of 492'. This camera has a 61.4 to 2.1° horizontal, a 40.7 to 1.3° vertical, and a 70.0 to 2.5° diagonal field of view. It features an audio input and output and a built-in memory card slot that supports microSD/SDHC/SDXC cards with a capacity of up to 256GB. This camera can be powered via 24 VAC or Hi-PoE and is IP66-rated for outdoor use. - 120 dB wide dynamic range
- 3D-DNR, BLC, HLC, defog, EIS, regional exposure, and regional focus support
- G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, and PCM audio compressions
- Suitable for cards monitoring rivers, forests, roads, railways, airports, ports, outdoors, and large venues
UPC: 842571110098 In the Box Hikvision DS-2DF7232IX-AEL(W) 2MP Outdoor PTZ Network Dome Camera with Night Vision & Wiper Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2DF7232IX-AEL 2MP Outdoor PTZ Network Dome Camera with Night Vision & Wiper in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DF7232IX-AELW Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 4.5 to 144mm | | Maximum Aperture | f/1.6 - f/4.4 | | Zoom | Optical: 32x
Digital: 16x | | Lens Field of View | Horizontal: 61.4 to 2.1°
Vertical: 40.7 to 1.3°
Diagonal: 70.0 to 2.5° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.05 Lux
B&W: 0 Lux | | Shutter Speed | 1/30000 to 1/1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 25/30/50/60 fps
1280 x 960 at 25/30/50/60 fps
1280 x 720 at 25/30/50/60 fps
704 x 576 at 25 fps
640 x 480 at 25/30 fps
352 x 288 at 25 fps
704 x 480 at 30 fps
352 x 240 at 30 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722.1, G.726, MP2, PCM | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP | | | | Application Programming Interface (API) | ONVIF, CGI, SDK, Third-Party Management Platform | | Analytics | Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Face Detection, Audio Exception Detection, Manual Tracking, Auto Tracking, Event Tracking | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | Remote Pan: 360° at 210°/s
Remote Tilt: 100° (-10 to 90°) at 150°/s | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x Power
1 x RJ45
1 x 9-Pin Serial (RS-485) | | IR Range | 492.13' / 150 m | | Internal Storage | None | | External Storage Options | NAS | | Power Source | AC, PoE 802.3at (30 W) | | Power Consumption | AC: 60 W
PoE+: 50 W | | Operating Temperature | -40 to 149°F / -40 to 65°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | Dimensions |
