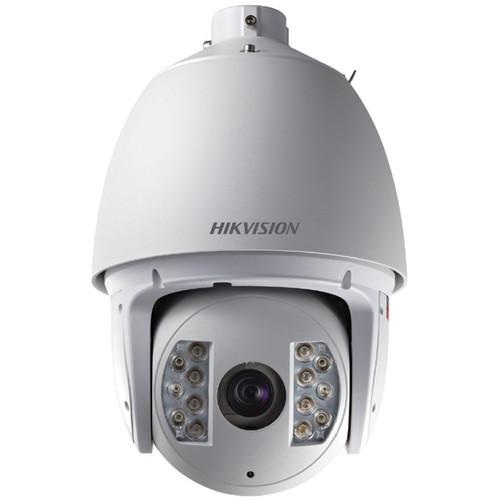

Product description The DS-2DF7286-AEL 2MP Outdoor PTZ Network Dome Camera from Hikvision features a 1/2.8" progressive-scan CMOS sensor for 1920 x 1080 resolution at 30 fps, providing high-quality video in real time. Designed for versatility, the camera uses a 4.3-129mm varifocal lens with a 30x optical zoom to produce a wide 57.4 to tele 2.8° horizontal field of view. Additionally, the camera can be endlessly panned 360° at 160° per second and tilted 2 to 90° at 120° per second for easy angle adjustments. Smart IR LEDs provide up to 393' of night vision, and the LEDs will automatically adjust their intensity depending on your zoom ratio setting. Digital wide dynamic range offers clear images in ambient lighting, and white balance, backlight compensation, 3D DNR, and automatic gain control settings allow you to configure your camera based on various environments. The camera also comes with up to 24 zones of privacy masking for customizing your field of view.
This network camera compresses footage using H.264, MPEG4, and M-JPEG formatting, allowing you to maximize your bandwidth and storage. Additionally, video can be streamed in three individual streams, with support for up to ten simultaneously viewers watching each live video stream. A microSD slot can store up to 32GB of on-site footage, and recordings can be triggered manually or based on an alarm. Furthermore, ONVIF-compliance offers compatibility with a wide range of surveillance devices so that you can connect the camera to an NVR or NAS. There are multiple line inputs and outputs that provide 2-way audio capability so that you can listen and speak to those you are monitoring. PoE technology allows you to transfer both data and power over the same Ethernet cable, minimizing the amount of cables needed during installation, and the camera is IP66-rated waterproof for use outdoors. Additionally, the camera contains a heater for defogging, enabling operation in a variety of environments. - 1920 x 1080 resolution at 30 fps for high quality video in real time
- Smart IR LEDs for up to 393' of night vision with automatically adjustable intensity
- Mechanical IR cut filter for true day/night functionality
- 4.3-129mm varifocal lens, with an f/1.6 to f/5.0 aperture, for a 57.4 to 2.8° horizontal FOV
- 360° endless panning, 2 to 90° tilting, and 30x optical zoom
- Panning at 160° per second and tilting at 120° per second
- PTZ features 256 preset positions, 4 patterns, 8 patrols, and adjustable rotation speed
- Line inputs and outputs for 2-way audio capability
- Three individually configurable streams in H.264, MPEG4, and M-JPEG formatting
- Multiple image settings such as WDR, white balance, automatic gain control, and 3D DNR
- 24 individual 3D privacy masks for customizing your field of view
- PoE technology allows you to use one wire for both data and power
- microSD slot supports up to 32GB microSD cards for edge storage
- IP66-rated casing and integrated heater for use outdoors and in a variety of environments
UPC: 816783016189 In the Box Hikvision DS-2DF7286-AEL 2MP Outdoor PTZ Network Dome Camera with Night Vision Limited 3-Year Warranty Brochure PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2DF7286-AEL 2MP Outdoor PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DF7286-AEL Specs | | | Image Sensor | 1/2.8" progressive-scan CMOS | | Effective Pixels | 1320K pixels | | Min. Illumination | Color : 0.05 lux @ f/1.6 (AGC On)
B/W : 0.005 lux @ f/1.6 (AGC On)
0 lux with IR | | White Balance | Auto / Manual / ATW / Indoor / Outdoor / Daylight lamp / Sodium lamp | | AGC (Automatic Gain Control) | Auto / manual | | S/N Ratio | > 50 dB | | Digital Noise Reduction (DNR) | 3D DNR | | Backlight Compensation | HLC / BLC | | Wide Dynamic Range | Digital WDR | | Shutter Speed | 50 Hz: 1 to 1/30,000 seconds
60 Hz: 1 to 1/30,000 seconds | | Day & Night | IR Cut filter | | Infrared | Smart IR: Supported
IR Distance: Up to 393' (120 m)
IR Intensity: Automatically adjusted, depending on the zoom ratio | | Digital Zoom | 16x | | Privacy Masking | Up to 24 zones, maximum 8 zones on the same image
Multiple colors and mosaics optional | | Focus Modes | Auto / Semi-automatic / Manual | | Enhancements | Smart Defog: On/Off | | | | Focal Length | 4.3-129mm, varifocal | | Zoom | 30x | | Zoom Speed | Approximately 3 seconds (Optical Wide-Tele) | | Angle of View | 57.4 to 2.8° (Wide-Tele) | | Minimum Working Distance | 10 to 1500 mm (Wide-Tele) | | Aperture Range | f/1.6 to 5.0 | | | | Smart Tracking | Supported | | Range | Pan: 360° endless
Tilt: 2 to 90° (Auto-flip) | | Speed | Pan Manual Speed: 0.1° to 160°/second
Pan Preset Speed: 160°/second
Tilt Manual Speed: 0.1° to 120°/second
Tilt Preset Speed: 120°/second | | Zoom | Rotation speed can be adjusted automatically according to zoom multiples | | Number of Presets | 256 | | Patrol | 8 patrols, up to 32 presets per patrol | | Pattern | 4 patterns, with the recording time not less than 10 minutes per pattern | | Memory | Supports power-off memory | | Action Type | Preset / Patrol / Pattern / Pan scan / Random scan / Frame scan / Panorama scan | | PTZ Position Display | On / Off | | Freeze | Supported | | Task | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan/ Dome reboot/ Self-test action/ Alarm output | | | | Alarm Input | 7 | | Alarm Output | 2 x relay outputs, alarm response actions configurable | | Alarm Actions | Preset, Patrol, Pattern, SD/SDHC card recording, Relay output, Notification on Client | | | | Video Output | 1.0 V p-p / 75 Ohms, PAL / NTSC composite, BNC | | Audio Input | Line input, 2 to 2.4 V p-p
Output Impedance: 1 kOhms; ±10% | | Audio Output | Line level Impedance: 600 Ohms | | | | Ethernet | 10Base-T / 100Base-TX, RJ45 connector | | Maximum Image Resolution | 1920 x 1080 | | Frame Rate | 60 Hz: 30 fps (1920 x 1080), 30 fps (1280 x 960), 30 fps (1280 x 720) | | Image Compression | H.264 / M-JPEG / MPEG4
H.264 encoding with Baseline/Main/High profile | | ROI | Supports 24 areas with adjustable levels | | Audio Compression | G.711u / G.711a / G.726 | | Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE | | Live View | Up to 10 | | Streaming | 3 streams | | Storage | microSD/SDHC slot supports up to 32 GB
Manual / Alarm / Edge recording | | User/Host Level | Up to 32 users
3 levels: Administrator, Camera control, Live view only | | Security | User authentication (ID and PW), Host authentication (MAC address), IP address filtering | | | | Application Programming Interface | Open-ended API, supports ONVIF, PSIA and CGI | | Web Browser | IE 7, 8, 9, Chrome 8+, Firefox 3.5+, Safari 5+
Multi-language support | | | | RS-485 Protocol | HIKVISION, Pelco-P, Pelco-D, self-adaptive | | Power | 24 VAC: 65 W max (heater: 45 W)
High-PoE: 50 W max (heater: 20 W) | | Working Temperature | 24 VAC: -40 to 149°F (-40 to 65°C)
High-PoE: -22 to 149°F (-30 to 65°C) | | Humidity | 90% or less | | Protection Level | IP66 standard
TVS 4000 V lightning protection, surge protection, voltage transient protection | | Dimensions | Φ9.65 × 15.71" (245 × 399 mm) | | Weight | 12.13 lb (5.5 kg) | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 20.1 x 13.2 x 13.1" |
