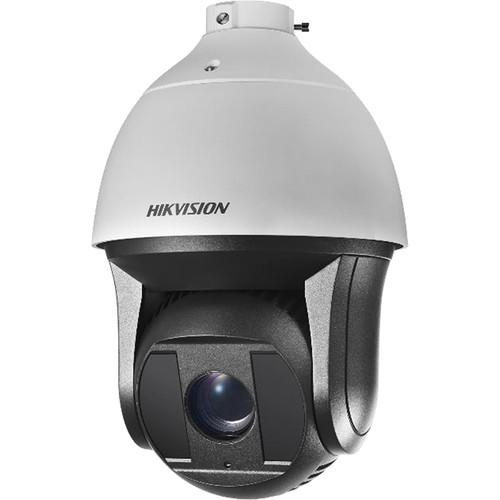

Product description The DS-2DF8336IV-AELW 3MP Network IR PTZ Dome Camera with Wiper from Hikvision features a 1/3" progressive scan CMOS sensor that allows it to capture images at a maximum resolution of 2048 x 1536. In addition, the camera also features a 4.5 to 162mm varifocal lens with a viewing angle of 60.6 to 3.68°. The IR-cut filter allows infrared light to pass through the lens and hit the sensor as light levels diminish. The camera supports night vision within a range of 656.1'. This camera has an IP66 weatherproof rating and is designed to withstand dust and rain, and harsh weather conditions. In addition, it is also IK10 vandalproof rated to protect against acts of theft or vandalism. - 2048 x 1536 maximum image resolution
- High-PoE / 24 VAC power supply
UPC: 813908027587 In the Box Hikvision DS-2DF8336IV-AELW 3MP Network IR PTZ Dome Camera with Wiper Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2DF8336IV-AELW 3MP Network IR PTZ Dome Camera with Wiper in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DF8336IV-AELW Specs | | | Image Sensor | 1/3" progressive scan CMOS sensor | | Maximum Image Resolution | 2048 x 1536 | | Signal System | NTSC / PAL | | Minimum Illumination | F1.6, AGC On: Color: 0.005 lux, B/W : 0.01 lux | | White Balance | Auto / manual / ATW / indoor / outdoor / daylight lamp / sodium lamp | | Day & Night | IR-cut filter | | AGC | Auto / manual | | Image Enhancement | 3D DNR, Defog, HLC / BLC, SVC | | S/N Ratio | ≥ 55 dB | | Wide Dynamic Range | 120 dB | | Shutter Time | 50 Hz: 1 to 1/30,000 sec
60 Hz: 1 to 1/30,000 sec | | Digital Zoom | 16x | | Privacy Masking | 24 Privacy masks, programmable | | Auto Focus Modes | Auto / semi-automatic / manual | | | | Focal Length | 4.5 to 162 mm, 36x optical zoom | | Zoom Speed | 3.3 sec (optical wide-tele) approximately | | Angle of View | 60.6 to 3.68° (wide-tele) | | Minimum Working Distance | 10 to 1500 mm (wide-tele) | | Aperture Range | f/1.6 to 4.4 | | | | Range | Pan: 360° endless
Tilt: -20 to 90° (auto flip) | | Speed | Pan:
Manual Speed: 0.1 to 160°/sec
Preset Speed: 240°/sec
Tilt:
Manual Speed: 0.1 to 120°/sec
Preset Speed: 200°/sec | | Number of Presets | 300 | | Patrol | 16 patrols, up to 32 presets per patrol | | Pattern | 10 patterns, with the recording time not less than 10 minutes per pattern | | Action Type | Preset / patrol / pattern / auto scan / tilt scan / random scan / frame scan / panorama scan | | Task | Preset / patrol / pattern / auto scan / tilt scan / random scan / frame scan / panorama scan / dome reboot / dome adjust / aux output | | Tracking Ability | Manual / panorama / intrusion trigger / line crossing trigger / region entrance trigger / region exiting trigger | | Detection Method | Face detection, intrusion detection, line crossing detection, audio exception | | | | Distance | 656.1' / 200.0 m | | Angle | Automatically adjusted, depending on the zoom ratio | | | | Input | 7 | | Output | 2 | | Alarm Actions | Preset, patrol, pattern, microSD / SDHC card recording, relay output, notification on client | | Alarm Trigger | Face detection, intrusion detection, line crossing detection, region entrance, region exiting, audio exception detection, unattended baggage detection, object removal detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception | | | | Monitor Output | 1 Vpp / 75 ohms, NTSC (or PAL) composite, BNC | | Audio Input | 1 mic-in / line-in interface, line input (2 to 2.4 Vpp); 1 kOhms, ±10% output impedance | | Audio Output | 1 Audio output interface
Line level, impedance: 600 ohms | | | | Ethernet | 10 Base-T / 100 Base-TX, RJ45 connector | | Stream Type | Main Stream:
50 Hz: 2048 × 1536, 1920 × 1080 @ 50 fps, 1280 × 720 @ 25 fps
60 Hz: 2048 × 1536, 1920 × 1080 @ 60 fps, 1280 × 720 @ 30 fps
Sub Stream:
50 Hz: 704 × 576, 352 × 288, 176 × 144 @ 25 fps
60 Hz: 704 × 480, 352 × 240, 176 × 120 @ 30 fps
Third Stream:
50 Hz: 2048 × 1536, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288, 176 × 144 @ 25 fps
60 Hz: 2048 × 1536, 1920 × 1080, 1280 × 720, 704 × 480, 352 × 240, 176 × 120 @ 30 fps | | Image Compression | H.264 / MJPEG / MPEG4, H.264 encoding with baseline / main / high profile | | ROI | Support 24 areas with adjustable levels | | Audio Compression | G.711ulaw / G.711alaw / G.726 / MP2L2 / G.722 | | Protocols | IPv4 / IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE | | Number of Simultaneous Users | Up to 20 users | | Storage | Support up to 64 GB microSD / SDHC / SDXC card with support for edge recording | | Level | User / Host: Up to 32 users, administrator, operator, and user levels | | Security | User authentication (ID and PW)
Host authentication (MAC address)
IP address filtering | | | | Application Programming Interface | Open-ended API, support ONVIF, PSIA, and Genetec | | Web Browser | IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+, support multi-language | | RS-485 Protocol | Hikvision, Pelco-P, Pelco-D, self-adaptive | | Power Supply | 24 VAC & hi-PoE | | Power Consumption | 60 W maximum | | Working Temperature | -40 to 149°F / -40 to 65°C | | Humidity | 90% or less | | Protection Level | IP66, IK10, TVS 6000 V lightning protection, surge protection, and voltage transient protection | | Certifications | FCC, CE, UL, RoHS, IEC / EN 61000, IEC / EN 55022, IEC / EN 55024, IEC / EN60950-1 | | Dimensions | 10.4 x 14.3" / 26.6 x 36.5 cm | | Weight | 17.6 lb / 8.0 kg |
