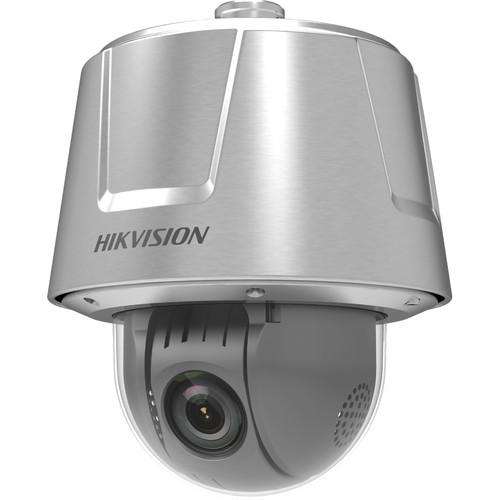

Product description The DS-2DT6223-AELY Dark Fighter Series 2MP Outdoor Anti-Corrosion PTZ Network Dome Camera from Hikvision features a 1/1.9" progressive scan CMOS sensor that allows it to capture images at a maximum resolution of 1920 x 1080. The camera also features a 5.9-135.7mm auto iris varifocal lens with 23x optical zoom and a viewing angle of 59.8 to 3°. An integrated mechanical IR cut filter enables true day/night functionality. It also features Smart Defog and EIS (Electronic Image Stabilization), which help improve image quality in challenging conditions. This camera is made of anti-corrosive 316L stainless steel that effectively avoids acidic and neutral salt fog corrosion. It also has IP67 and IK10 ratings for protection against harsh weather conditions and acts of theft or vandalism. UPC: 813908024302 In the Box Hikvision DS-2DT6223-AELY Dark Fighter Series 2MP Outdoor Anti-Corrosion PTZ Network Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2DT6223-AELY Dark Fighter Series 2MP Outdoor Anti-Corrosion PTZ Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2DT6223-AELY Specs | | | Image Sensor | 1/1.9" progressive scan CMOS | | Maximum Image Resolution | 1920 x 1080 | | Minimum Illumination | Color: 0.002 lux (f/1.5, AGC on)
B&W: 0.0002 lux (f/1.5, AGC on) | | Focus Modes | Auto/Semiautomatic/Manual | | WDR Technology | 120 dB | | S/N Ratio | ≥55 dB | | Shutter Time | 50/60 Hz: 1 to 1/30,000 sec | | AGC | Auto/Manual | | White Balance | Auto / Manual / ATW / Indoor / Outdoor / Daylight lamp / Sodium lamp | | Day & Night | IR cut filter | | Privacy Masking | 24 privacy masks programmable; optional multiple colors and mosaics | | DNR | 3D | | Compensation | HLC/BLC | | EIS | Supported | | Enhancements | Defog, SVC (Scalable Video Coding) | | Tracking | Manual, panorama, intrusion trigger, line crossing trigger, region entrance trigger, and region exiting trigger
Smart tracking when patrol between multiple scenarios | | Detection | Smart Detection: Face detection, intrusion detection, line crossing detection, audio exception detection, region entrance detection, region exiting detection | | ROI | ROI Encoding: Supports 24 areas with adjustable levels | | | | Focal Length | 5.9-135.7mm | | Aperture Range | f/1.5 to 3.4 | | Optical Zoom | 23x | | Digital Zoom | 16x | | Zoom Speed | Approximately 4.4 sec (optical wide to tele) | | Angle of View | 59.8 to 3° (wide to tele) | | Minimum Working Distance | 10 to 1500 mm (wide to tele) | | | | Pan Range | 360° endless | | Tilt Range | -20 to 90° (auto flip) | | Pan Speed | Manual Pan Speed: 0.1 to 300°/sec
Preset Pan Speed: 540°/sec | | Tilt Speed | Tilt Manual Speed: 0.1 to 240°/sec
Tilt Preset Speed: 400°/sec | | Number of Presets | 300 | | Patrol | 8 patrols, up to 32 presets per patrol | | Pattern | 4 pattern scans, record time over 10 minutes for each scan | | Action Type | Park Action: Preset, Patrol, Pattern, Pan scan, Tilt scan, Random scan, Frame scan, Panorama scan | | Scheduled Tasks | Preset, Patrol, Pattern, Auto scan, Tilt scan, Random scan, Frame scan, Panorama scan, Dome reboot, Dome adjust, Aux output | | | | Alarm Input / Output | 7/2 | | Alarm Trigger | Face detection, intrusion detection, line crossing detection, region entrance, region exiting, audio exception detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception | | Alarm Actions | Preset, patrol, pattern, microSD/SDHC card recording, relay output, notification on client | | | | Monitor Output | 1 V p-p / 75 Ohms, NTSC composite, BNC | | Audio Input | 1 x Mic in / line in interface
Line Input: 2 to 2.4 V p-p Output Impedance: 1 kOhms, ±10% | | Audio Output | 1 x Line out
Impedance: 600 Ohms | | | | Image Compression | H.264/MJPEG/MPEG4
H.264 encoding with Baseline/Main/High profiles | | Streams | Main Stream:
50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub Stream:
50 Hz: 25 fps (704 x 576, 352 x 288, 176 x 144)
60 Hz: 30 fps(704 x 480, 352 x 240, 176 x 120)
Third Stream:
50 Hz:25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 352 x 288, 176 x 144)
60 Hz: 30 fps(1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 352 x 240, 176 x 120) | | Audio Compression | G.711ulaw/G.711alaw/G.726/MP2L2/G.722/PCM | | | | Ethernet | 10Base-T/100Base-TX, RJ45 connector | | Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE | | Live View | Up to 20 simultaneous users | | User/Host Level | Up to 32 users
3 Levels: Administrator, operator, and user | | Security | User authentication (ID and PW)
Host authentication (MAC address)
IP address filtering | | Storage | Supports up to 128 GB microSD/SDHC/SDXC card
Supports edge recording | | | | Application Programming Interface | Open-ended API, support ONVIF, PSIA, CGI, and Genetec | | Web Browser | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, supports multiple languages | | RS-485 Protocol | Hikvision, Pelco P, Pelco D, self-adaptive | | | | Power Supply | Hi-PoE & 24 VAC | | Maximum Power Consumption | 60 W | | Operating Temperature | -40 to 149°F / -40 to 65°C | | Operating Humidity | 90% or less | | Standards | WF2, C5-M, NEMA 4X | | Protection Level | IP67 rating
IK10 rating
TVS 4000 V lightning protection, surge protection and voltage transient protection | | Certification | FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1 | | Dimensions | 10 x 13" / 262 x 330 mm | | Weight | 22 lb / 10 kg approximately |
