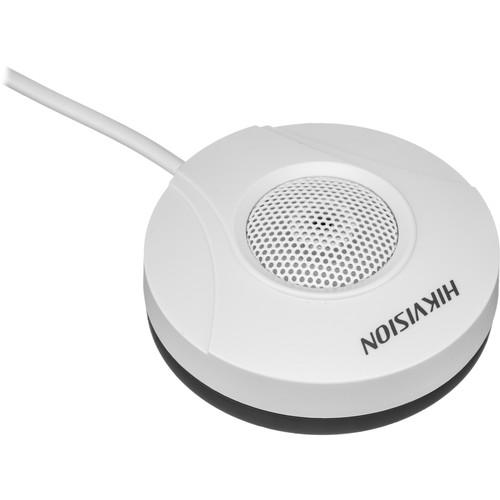

User Manual for Hikvision DS-2FP2020 Hi-Fi Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2FP2020 Hi-Fi Condenser Microphone
- Product category: Audio Surveillance Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Audio Surveillance
|
User manual for the Hikvision DS-2FP2020 Hi-Fi Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The white and blue DS-2FP2020 from Hikvision is an omnidirectional condenser microphone designed for CCTV applications. It has a 754 ft² audio pickup range, along with an audio transmission distance of 9843'. This microphone is equipped with a built-in preamp that is capable of driving headphones. Ambient noise cancellation technology minimizes unwanted sounds to deliver clear audio without distractions.
This device offers lightning, reverse polarity, and electrostatic protection. - Designed for CCTV applications
- 20 Hz to 20 kHz frequency response
- Built-in preamplifier capable of driving headphones
- Power, audio out, and ground connections
UPC: 842571117547 In the Box Hikvision DS-2FP2020 Hi-Fi Condenser Microphone Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2FP2020 Hi-Fi Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2FP2020 Specs Microphone Type | Omnidirectional Condenser Microphone | Pickup Range | 753.5 ft² / 70 m² | Audio Transmission Distance | 9842.5' / 3000 m | Sensitivity | -34 dB | Frequency Response | 20 Hz to 20 kHz | S/N Ratio | 60 dB (39.4" / 1 m, 40 dB Audio Tone SPL) 40 dB (394" / 10 m, 40 dB Audio Tone SPL) 1 kHz at 1 Pa | Dynamic Range | 70 dB (1 kHz at Maximum dB SPL) | Maximum Sound Pressure | 100 dB SPL (1 kHz, THD 1%) | Output Impedance | 600 Ohms (Unbalanced) | Output Signal Amplitude | 2.5 V p-p / -25 dB | Signal Processing | Ambient Noise Cancellation Technology | Capability | Drive Capability: Built-In Pre-Amplifier Circuit Directly Drives Headphones | Connections | 3 Wires (Power, Audio Out, Ground) | Cable | Transmission Cable: 3-Core Shield Cable 0.5 mm
