Hikvision DS-2TD2166T Outdoor Thermal Network Bullet

Search your instruction manual in PDF to download

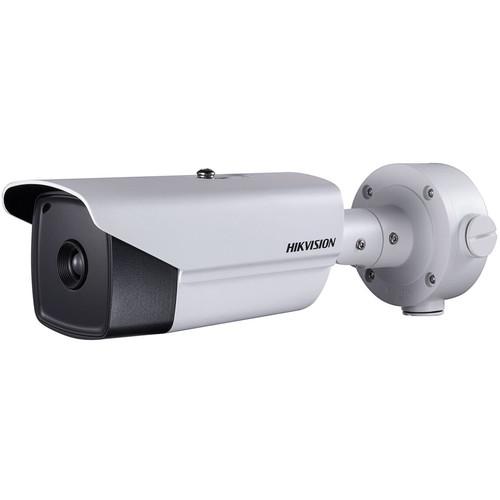

User Manual for Hikvision DS-2TD2166T Outdoor Thermal Network Bullet Camera with 15mm Lens

Click to enlarge the picture
Hikvision DS-2TD2166T Outdoor Thermal Network Bullet Camera with 15mm Lens Contents of the user manual for the Hikvision DS-2TD2166T Outdoor Thermal Network Bullet
  • Product category: Security Cameras Hikvision
  • Brand: Hikvision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hikvision Security Cameras

User manual for the Hikvision DS-2TD2166T Outdoor Thermal Network Bullet contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hikvision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!



Product description

The DS-2TD2166T Outdoor Thermal Network Bullet Camera from Hikvision uses a vanadium oxide uncooled focal plane sensor and 15mm fixed lens to capture thermal video at a maximum resolution of 640 x 512. It features AGC (Automatic Gain Control), 3D-DNR (Dynamic Noise Reduction), and NETD to improve overall image quality. The thermal camera features a fire detection algorithm and a wide range of smart functions, such as alerts for temperature exceptions, line crossing, intrusion, and region entrance/exit. Enclosed in an IP66-rated housing, the camera can be used for indoor and outdoor applications. It can be powered via PoE+, simplifying installation and minimizing cable runs.
  • Adaptive AGC, DDE, 3D-DNR, and NETD <40mK
  • Up to 640 x 512 resolution
  • Dynamic detail enhancement
  • Smart Functions: Line crossing, intrusion, region entrance/exit, temperature exception, and fire detection
  • 15 palettes of color, adjustable
  • IP66-rated weather-resistant housing
  • Can be powered via PoE connection of 24 VAC / 12 VDC power supply
  • 15mm fixed lens with 39.87 x 32.36° FOV
UPC: 842571110128 In the Box Hikvision DS-2TD2166T Outdoor Thermal Network Bullet Camera with 15mm Lens
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hikvision DS-2TD2166T Outdoor Thermal Network Bullet Camera with 15mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hikvision DS-2TD2166T Specs

    Image Sensor Vanadium oxide uncooled focal plane arrays
    Maximum Resolution 640 x 512
    Response Response Waveband: 8 to 14 μm
    Thermal Sensitivity (NETD) <40mk at 77°f>
    Range Performance Detection
    Human: 1447' (441 m), Vehicle: 4439' (1353 m)
    Recognition
    Human: 361' (110 m), Vehicle: 1109' (338 m)
    Identification
    Human: 180' (55 m), Vehicle: 554' (169 m)
    Smart Functions Range VCA
    Human: 361' (110 m), Vehicle: 1011' (308 m)
    Temperature Measurement
    2 x 2 m: 1152' (351 m), 1 x 1 m: 581' (177 m)
    Fire Detection
    2 x 2 m: 2894' (882 m), 1 x 1 m: 1446' (441 m)
    Lens 15mm
    Field of view (FOV) IFOV 1.13 mrad
    Field of View 39.87 x 32.36°
    Focusing Distance 8.2' (2.5 m)
    Aperture f/1.0
    VCA Four VCA Rule Types: Line Crossing, Intrusion, Region Entrance, and Region Exiting, eight VCA rules
    Temperature Measurement Three temperature measurement rule types, 21 rules
    Temperature Range -4 to 1022°F (-20 to 550°C)
    Temperature Accuracy Max (±2°C, ±2%)
    Detection Supports 10 fire points
    Streams Main/Sub/Third: 50 fps (640 x 512, 384 x 288, 352 x 288)
    Video Compression H.264/MJPEG (Baseline/Main/High Profile), H.264+, H.265, H.265+
    Audio Compression G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
    Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
    Live View Simultaneous: Up to 20 channels
    User/Host Level Up to 32 users
    3 Levels: Administrator, operator, user
    Security User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
    Alarm Input 2 channel inputs (0 to 5 VDC)
    Alarm Output 2 channel relay outputs, support alarm linkage
    Alarm Actions Preset / patrol scan / pattern scan / SD card record / relay output / smart capture / FTP upload / email linkage
    Audio Input 1 x 3.5 mm microphone input / line input
    Line Input: 2 to 2.4 V p-p
    Output Impedance: 1 kOhm ±10%
    Audio Output Line level
    Impedance: 600 Ohms
    Ethernet 1 x RJ45 10M/100M Ethernet interface
    Storage Built-in microSD card slot supports microSD/SDHC/SDXC cards up to 64 GB
    Supports manual/alarm recording
    Analog Video Output 1 V p-p / 75 Ohms, PAL/NTSC, BNC
    Application Programming Interface Open-ended API, supports ONVIF, PSIA, CGI, Hikvision SDK and third-party management platform
    Client iVMS-4200
    Web Browser IE7+, Chrome 18+, Firefox 5.0+, Safari 5.02+
    Menu Language English
    Power PoE+ (802.3at), 24 VAC, 12 VDC / 3 A, 18 W
    Operating Temperature -40 to 149°F (-40 to 65°C)
    Humidity 90% or less
    Protection Level IP66
    TVS 6000 V lightning protection, surge protection, voltage transient protection
    Dimensions 12.36 x 4.09 x 11.52" (31.4 x 10.4 x 29.3 cm)
    Weight 4.41 lb (2 kg)
