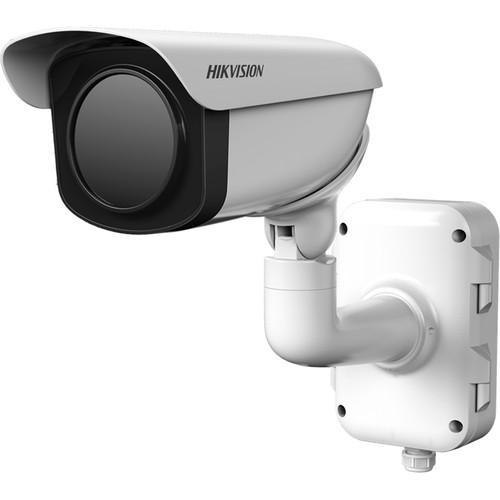

User Manual for Hikvision DS-2TD2366 Outdoor Thermal Network Bullet Camera with 100mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2TD2366 Outdoor Thermal Network Bullet
- Product category: Security Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Security Cameras
|
User manual for the Hikvision DS-2TD2366 Outdoor Thermal Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2TD2366 Outdoor Thermal Network Bullet Camera from Hikvision uses a vanadium oxide uncooled focal plane sensor and 100mm fixed lens to capture thermal video at a maximum resolution of 640 x 512. It features AGC (Automatic Gain Control), 3D-DNR (Dynamic Noise Reduction), and NETD to improve overall image quality. The thermal camera features a fire detection algorithm and a wide range of smart functions, such as alerts for temperature exceptions, line crossing, intrusion, and region entrance/exit. Enclosed in an IP66-rated housing, the camera can be used for indoor and outdoor applications. It can be powered via PoE+, simplifying installation and minimizing cable runs. - Reliable temperature exception alarm function
- High-sensitivity sensor supports contrast adjustment
- Support shutter adjustment in various modes
- 3D-DNR, 15 palettes of color adjustable, image detail enhancement
- Suitable for airports, railways, prisons, power stations, and 4S stores
UPC: 842571110173 In the Box Hikvision DS-2TD2366 Outdoor Thermal Network Bullet Camera with 100mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2TD2366 Outdoor Thermal Network Bullet Camera with 100mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2TD2366 Specs | | | Image Sensor | Vanadium oxide uncooled focal plane arrays | | Maximum Resolution | 640 x 512 | | Detectors | 17 µm | | Response | Response Waveband: 8 to 14 µm | | Thermal Sensitivity (NETD) | <40mk at 32°f> | | Range Performance | Not specified by manufacturer | | Smart Functions Range | Not specified by manufacturer | | Lens | 100mm | | IFOV (Instaneous Field-of-View) | 0.17 mrad | | Field of View | 6.23 x 4.98° | | Focusing Distance | Minimum 32.8' (10 m) | | Aperture | f/1.0 | | | | VCA | Four VCA Rule Types: Line Crossing, Intrusion, Region Entrance, and Region Exiting, ten scenes and eight VCA rules for each scene | | Temperature Measurement | Three temperature measurement rule types, over 256 presets as scene, 21 rules of each scene (10 points, 10 regions, and 1 line) | | Temperature Range | -4 to 302°F (-20 to 150°C) | | Temperature Accuracy | ±14°F (±8°C) | | Detection | Supports 10 fire points | | | | Streams | Main/Sub/Third: 50 fps (640 x 512, 384 x 288, 352 x 288) | | Video Compression | H.265, H.264, MJPEG, H.265+, H.264+ encoding with Baseline/Main/High Profile | | Audio Compression | G.711u/G.711a/G.722.1/MP2L2/G.726/PCM | | Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour | | Live View | Simultaneous: Up to 20 channels | | User/Host Level | Up to 32 users
3 Levels: Administrator, operator, user | | Security | User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering | | Alarm Input | 2 channel inputs (0 to 5 VDC) | | Alarm Output | 2 channel relay outputs, support alarm linkage | | Alarm Actions | Preset / patrol scan / pattern scan / SD card record / relay output / smart capture / FTP upload / email linkage | | Audio Input | 1 x 3.5 mm microphone input / line input
Line Input: 2 to 2.4 V p-p
Output Impedance: 1 kOhm ±10% | | Audio Output | Line level
Impedance: 600 Ohms | | Ethernet | 1 x RJ45 10M/100M Ethernet interface | | Storage | Built-in microSD card slot supports microSD/SDHC/SDXC cards up to 64 GB
Supports manual/alarm recording | | Analog Video Output | 1 V p-p / 75 Ohms, PAL, NTSC, BNC | | Application Programming Interface | Open-ended API, supports ISAPI, Hikvision SDK and third-party management platform | | Client | iVMS-4200 | | Web Browser | IE7+, Chrome 18+, Firefox 5.0+, Safari 5.02+ | | | | Menu Language | English | | Wiper | Yes | | Power | 24 VAC, 12 VDC / 3 A, 8 W (24 W with de-icing heater on) | | Operating Temperature | -40 to 149°F (-40 to 65°C) | | Humidity | 90% or less | | Protection Level | IP66
TVS 6000 V lightning protection, surge protection, voltage transient protection | | Dimensions | 21.06 x 15.75 x 6.73" (53.5 x 40.0 x 17.1 cm) | | Weight | 14.11 lb (6.40 kg) |
