Hikvision DS-2TD4136-50 Bispectrum Thermal & Optical

Search your instruction manual in PDF to download

User Manual for Hikvision DS-2TD4136-50 Bispectrum Thermal & Optical PTZ Network Dome Camera with 50mm Thermal Lens

Click to enlarge the picture

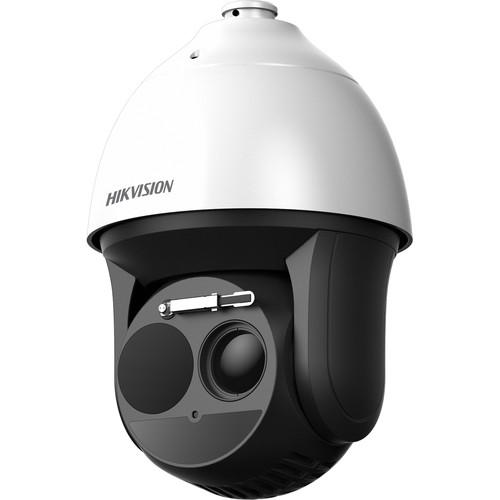

Hikvision DS-2TD4136-50 Bispectrum Thermal & Optical PTZ Network Dome Camera with 50mm Thermal Lens Contents of the user manual for the Hikvision DS-2TD4136-50 Bispectrum Thermal & Optical
  • Product category: Security Cameras Hikvision
  • Brand: Hikvision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hikvision Security Cameras

User manual for the Hikvision DS-2TD4136-50 Bispectrum Thermal & Optical contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hikvision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!



Product description

See more than meets the eye with the DS-2TD4136-50 Bispectrum Thermal & Optical PTZ Network Dome Camera from Hikvision. Featuring a vanadium oxide uncooled focal plane thermal sensor and a 2MP CMOS sensor, this camera captures thermal video at up to 384 x 288 and optical video at up to 1920 x 1080 resolution. The thermal module is equipped with a 50mm lens with a field of view of 7.47 x 5.61°. The optical module uses a 5.7-205.2mm lens with a 36x zoom ratio and a 58.7 to 2° field of view. The camera can be remotely panned 360° and tilted 105°.

The camera has a microSD card slot for edge storage, and audio input and output ports for two-way talk. Designed for outdoor use, it is housed in an IP66-rated weather-resistant enclosure. ONVIF compliance ensures compatibility with a wide range of surveillance equipment.
  • Vanadium oxide uncooled focal plane thermal sensor
  • Up to 384 x 288 thermal resolution
  • High thermal sensitivity, NETD <40mK
  • 1/1.9" progressive scan CMOS optical sensor
  • Up to 1920 x 1080 resolution at 25 fps
  • IR cut filter
  • IR range of up to 655'
  • 360° continuous pan and 105° tilt
  • H.264, MJPEG, and MPEG-4 video compression for efficient storage and bandwidth use
  • Dual streaming
  • 120 dB wide dynamic range
  • Adaptive automatic gain control
  • 3D digital noise reduction
  • Dynamic detail enhancement
  • Optical defog
  • Alarm input and output connections
  • Audio input and output for two-way talk
  • Smart video analytics including line crossing detection, intrusion detection, region entrance detection, region exit detection, temperature exception detection, advanced fire detection, and smart tracking
  • Smart analytics support temperature accuracy of ±46.4°F, ±2%, and temperature range of -4 to 302°F
  • microSD card slot for edge storage supports up to 64GB (microSD card available separately)
  • IP66 rated for outdoor use
  • Runs on 24 VAC power
  • cSA, FCC, CE, and UL certified
  • ONVIF compliant
In the Box Hikvision DS-2TD4136-50 Bispectrum Thermal & Optical PTZ Network Dome Camera with 50mm Thermal Lens
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hikvision DS-2TD4136-50 Bispectrum Thermal & Optical PTZ Network Dome Camera with 50mm Thermal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hikvision DS-2TD4136-50 Specs

    Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
    Maximum Resolution 384 x 288
    Detectors 17 µm
    Response Waveband: 8 to 14 µm
    Thermal Sensitivity (NETD) <40mk at 32°f >
    Range Performance Detection
    Human: 4826' / 1471 m, Vehicle: 14,797' / 4510 m
    Recognition
    Human: 1207' / 368 m, Vehicle: 3698' / 1127 m
    Identification
    Human: 604' / 184 m, Vehicle: 1850' / 564 m
    Smart Functions Range Line Cross, Intrusion, Region Entrance/Exit Detection (Optimized to Johnson Criteria)
    Human: 1181' / 360 m, Vehicle: 3698' / 1127 m
    Temperature Exception, Accuracy at 5 x 5 pixels
    2 x 2 m: 3839' / 1170 m, 1 x 1 m: 1936' / 590 m
    Advanced Fire Detection
    2 x 2 m: 9646' / 2940 m, 1 x 1 m: 4822' / 1470 m
    Focal Length 50mm
    Mrad 0.34 mrad
    Field of View 7.47 x 5.61°
    Minimum Focus Distance 24.6' / 7.5 m
    Aperture f/1.0
    Image Sensor 1/1.9" Progressive Scan CMOS
    Min Illumination Color: 0.002 Lux at f/1.5 with AGC On
    B&W: 0.0002 Lux at f/1.5 with AGC On
    Focal Length 5.7-205.2mm
    Zoom Optical: 36x
    Digital: 16x
    Field of View 58.7 to 2.0°
    Minimum Working Distance 0.4 to 59" / 10 to 1500 mm
    Aperture Range f/1.5 to 4.5
    Focus Modes Auto, Semiautomatic, Manual
    Wide Dynamic Range 120 dB
    Shutter Time PAL/NTSC: 1/30,000 to 1 Second
    White Balance Auto, Manual, ATW (Auto-Tracking White Balance), Indoor, Outdoor, Daylight Lamp, Sodium Lamp
    Day/Night IR Cut Filter
    Privacy Masking 24 Programmable Zones
    Optical Defog Yes
    Digital Noise Reduction 3D-DNR
    VCA 4 Rule Types: Line Crossing, Intrusion, Region Entrance, and Region Exiting
    10 Scenes
    8 VCA Rules per Scene
    Temperature Measurement 3 Rule Types
    Over 256 Presets per Scene
    21 Rules (10 Points, 10 Regions, and 1 Line) per Scene
    Temperature Range -4 to 302°F / -20 to 150°C
    Temperature Accuracy ±14.4°F / 8°C
    Fire Detection Supports 10 Fire Points
    Pan 360° at 240°/s
    Tilt 105° (-15 to 90°) at 200°/s
    Auto Flip
    Proportional Pan/Tilt to Zoom Yes
    Presets 300
    Patrol Scan 8, up to 32 Presets per Patrol
    Pattern Scan 4, Over 10 Minutes per Pattern
    Power-Off Memory Supported
    Park Action Preset, Pattern Scan, Patrol Scan, Auto Scan, Tilt Scan, Random Scan, Frame Scan, Panorama Scan
    Status PT Status: On/Off
    Scheduled Tasks Preset, Pattern Scan, Patrol Scan, Auto Scan, Tilt Scan, Random Scan, Frame Scan, Panorama Scan, Doom Reboot, Doom Adjust, Aux Output
    IR Distance Up to 655' / 200 m
    Intensity & Angle Adjustment Automatic
    Stream Type Main Stream:
    50 Hz: 25 fps (1920 x 1080), 25 fps (1280 x 960), 25 fps (1280 x 720)
    60 Hz: 30 fps (1920 x 1080), 30 fps (1280 x 960), 30 fps (1280 x 720)
    Thermal: 50 fps (640 x 512)

    Sub Stream:
    50 Hz: 25 fps (704 x 576), 25 fps (352 x 288), 25 fps (176 x 144)
    60 Hz: 30 fps (704 x 480), 30 fps (352 x 240), 30 fps (176 x 120)
    Thermal: 50 fps (640 x 512)
    Video Compression H.264 (Baseline/Main/High Profile), MJPEG, MPEG-4
    Audio Compression G.711u, G.711a, G.722.1, MP2L2, G.726, PCM
    Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
    Simultaneous Live View Up to 20 Channels
    User/Host Level Up to 32 Users
    3 Levels: Administrator, Operator, User
    Security User Authentication (ID and Password), MAC Address Binding, HTTPS Encryption, IEEE 802.1x Access Control, IP Address Filtering
    Alarm Input 7-Channel (0 to 5 VDC)
    Alarm Output 2-Channel Relay, Supports Alarm Linkage
    Alarm Actions Preset, Patrol Scan, Pattern Scan, SD Card Record, Relay Output, Smart Capture, FTP Upload, Email Linkage
    Audio Input 1 x 3.5 mm Mic/Line Input
    Peak: 2 to 2.4 V p-p
    Output Impedance: 1 kOhm ±10%
    Audio Output Line Level
    Impedance: 600 Ohms
    Ethernet 1 x RJ45 10/100 Mb/s
    Edge Storage Built-In microSD Card Slot Supports microSD/SDHC/SDXC Cards up to 64 GB
    Supports Manual/Alarm Recording
    Analog Video Output 1 V p-p / 75 Ohms, PAL, NTSC, BNC
    RS-485 Half-Duplex
    Hikvision, Pelco-P, and Pelco-D Self-Adaptive
    API Open-Ended, ISAPI, CGI, Hikvision SDK, and Third-Party Management Platforms
    Client iVMS-4200
    Web Browser Internet Explorer 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+
    Menu Language English
    Wiper Yes
    Power Source 24 VAC
    Power Consumption 60 W
    Operating Temperature -40 to 140°F / -40 to 65°C
    Humidity 90% Maximum, Non Condensing
    Protection Level IP66
    TVS 6000 V Lightning Protection, Surge Protection, Transient Voltage Protection
    Dimensions (Ø x H) 10.5 x 16.1" / 26.7 x 41.0 cm
    Weight 17.64 lb / 8 kg
