Hikvision DS-2TD4166 Bispectrum Thermal & Optical

Search your instruction manual in PDF to download

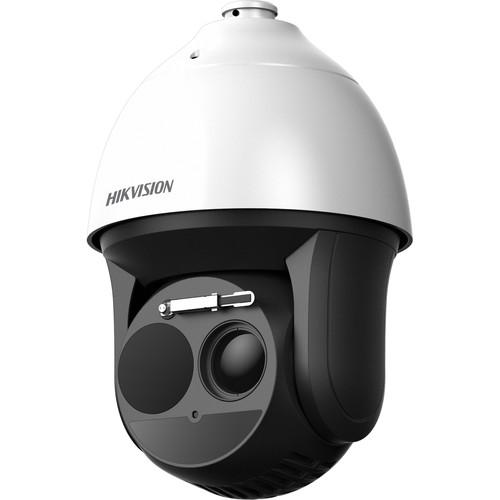

User Manual for Hikvision DS-2TD4166 Bispectrum Thermal & Optical PTZ Network Dome Camera with 50mm Thermal Lens

Click to enlarge the picture
Hikvision DS-2TD4166 Bispectrum Thermal & Optical PTZ Network Dome Camera with 50mm Thermal Lens Contents of the user manual for the Hikvision DS-2TD4166 Bispectrum Thermal & Optical
  • Product category: Security Cameras Hikvision
  • Brand: Hikvision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hikvision Security Cameras

User manual for the Hikvision DS-2TD4166 Bispectrum Thermal & Optical contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hikvision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!



Product description

The DS-2TD4166 Bispectrum Thermal & Optical PTZ Network Dome Camera from Hikvision uses a vanadium oxide uncooled focal plane sensor and 50mm fixed lens to capture 640 x 480 thermal video 512 and a 1/1.9" CMOS sensor to capture 1920 x 1080 optical video. It features AGC (Automatic Gain Control), 3D-DNR (Dynamic Noise Reduction), and NETD to improve overall image quality. The optical camera can produce black-and-white images in complete darkness from up to 656' away.
The thermal camera features a fire detection algorithm and a wide range of smart functions, such as alerts for temperature exceptions, line crossing, intrusion, and region entrance/exit. Enclosed in an IP66-rated housing, the camera can be used for indoor and outdoor applications.
  • Smart tracking: Panorama, event, and multi-scene patrol tracking
  • Smart tracking linkage: Thermal view and optical view
  • Temperature exception alarm function
  • High-sensitivity sensor supports contrast adjustment
  • Supports shutter adjustment in various modes
  • 3D-DNR, 15 palettes of color adjustable, image detail enhancement
  • Suitable for airports, railways, prisons, power stations
UPC: 842571110197 In the Box Hikvision DS-2TD4166 Bispectrum Thermal & Optical PTZ Network Dome Camera with 50mm Thermal Lens
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hikvision DS-2TD4166 Bispectrum Thermal & Optical PTZ Network Dome Camera with 50mm Thermal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hikvision DS-2TD4166 Specs

    Image Sensor Vanadium oxide uncooled focal plane arrays
    Maximum Resolution 640 x 512
    Detectors 17 µm
    Response Response Waveband: 8 to 14 µm
    Thermal Sensitivity (NETD) <40mk at 32°f>
    Range Performance Detection
    Human: 4826' (1471 m), Vehicle: 14,797' (4510 m)
    Recognition
    Human: 1207' (368 m), Vehicle: 3698' (1127 m)
    Identification
    Human: 604' (184 m), Vehicle: 1850' (564 m)
    Smart Functions Range VCA
    Human: 1181' (360 m), Vehicle: 3376' (1029 m)
    Temperature Measurement
    2 x 2 m: 3839' (1170 m), 1 x 1 m: 1936' (590 m)
    Fire Detection
    2 x 2 m: 9646' (2940 m), 1 x 1 m: 4823' (1470 m)
    Lens 50mm
    Mrad 0.34 mrad
    Field of View 12.42 x 9.95°
    Focusing Distance Minimum 24.6' (7.5 m)
    Aperture f/1.0
    Image Sensor 1/1.9" Progressive Scan CMOS
    Min Illumination Color: 0.002 lux
    B&W: 0.0002 lux
    Focal Length 5.7-205mm
    Zoom Optical: 36x
    Digital: 16x
    Field of View 58.7 to 2.0°
    Minimum Working Distance 10-1500 mm
    Aperture Range f/1.5-f/4.5
    Focus Modes Auto/Semiautomatic/Manual
    Wide Dynamic Range 120 dB
    Shutter Time PAL/NTSC: 1/30,000 to 1 seconds
    White Balance Auto / manual / ATW / indoor / outdoor / daylight lamp / sodium lamp
    Day & Night IR cut filter
    Privacy Masking 24 privacy masks
    Defog Yes
    Enhancements 3D-DNR
    VCA Four VCA Rule Types: Line Crossing, Intrusion, Region Entrance, and Region Exiting, ten scenes and eight VCA rules for each scene
    Temperature Measurement Three temperature measurement rule types, over 256 presets as scene, 21 rules of each scene (10 points, 10 regions, and 1 line)
    Temperature Range -4 to 302°F (-20 to 150°C)
    Temperature Accuracy ±14.4°F (±8°C)
    Detection Supports 10 fire points
    Movement Pan: 360° at 240°/s
    Tilt: -15 to +90° at 200°/s
    Proportional Pan/Tilt to Zoom Yes
    Presets 300
    Patrol Scan 8, up to 32 presets per patrol
    Pattern Scan 4, more than 10 minutes per pattern
    Power Off Memory: Yes
    Status PT Status: On/off
    Scheduled Tasks Preset, Pattern Scan, Patrol Scan, Auto Scan, Tilt Scan, Random Scan, Frame Scan, Panorama Scan, Doom Reboot, Doom Adjust, Aux Output
    IR Distance Up to 656' (200 m)
    Intensity Adjustment Automatic
    Stream Type Main Stream:
    50 Hz: 25 fps (1920 x 1080), 25 fps (1280 x 960), 25 fps (1280 x 720)
    60 Hz: 30 fps (1920 x 1080), 30 fps (1280 x 960), 30 fps (1280 x 720)
    Thermal: 50 fps (640 x 512)

    Sub Stream:
    50 Hz: 25 fps (704 x 576), 25 fps (352 x 288), 25 fps (176 x 144)
    60 Hz: 30 fps (704 x 480), 30 fps (352 x 240), 30 fps (176 x 120)
    Thermal: 50 (640 x 512)
    Video Compression H.264 (Baseline/Main/High Profile), MJPEG, MPEG4
    Audio Compression G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
    Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
    Live View Simultaneous: Up to 20 channels
    User/Host Level Up to 32 users
    3 Levels: Administrator, operator, user
    Security User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
    Alarm Input 7 channel inputs (0 to 5 VDC)
    Alarm Output 2 channel relay outputs, support alarm linkage
    Alarm Actions Preset, patrol scan, pattern scan, SD card record, relay output, smart capture, FTP upload, email linkage
    Audio Input 1 x 3.5 mm microphone input / line input
    Line Input: 2 to 2.4 V p-p
    Output Impedance: 1 kOhm ±10%
    Audio Output Line level
    Impedance: 600 Ohms
    Ethernet 1 x RJ45 10M/100M Ethernet interface
    Storage Built-in microSD card slot supports microSD/SDHC/SDXC cards up to 64 GB
    Supports manual/alarm recording
    Analog Video Output 1 V p-p / 75 Ohms, PAL, NTSC, BNC
    Application Programming Interface ISAPI, Hikvision SDK, and third-party
    Client iVMS-4200
    Web Browser IE7+, Chrome 18+, Firefox 5.0+, Safari 5.02+
    Menu Language English
    Wiper Yes
    Power 24 VAC, 60 W
    Operating Temperature -40 to 140°F (-40 to 60°C)
    Humidity 90% or less
    Protection Level IP66
    TVS 6000 V lightning protection, surge protection, voltage transient protection
    Dimensions ⌀10.50 x 7.82" (⌀26.7 x 19.9 cm)
    Weight 17.64 lb (8 kg)
