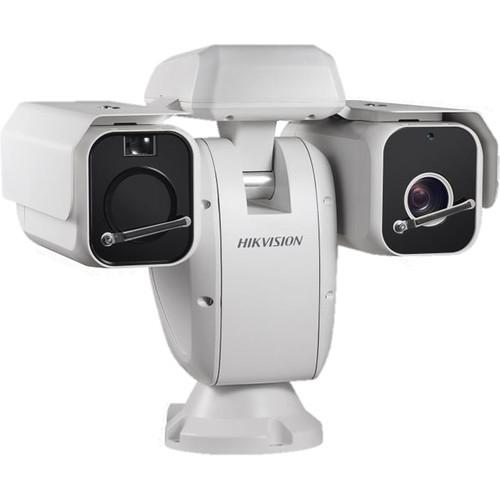

User Manual for Hikvision DS-2TD6166 Outdoor Bispectrum Network Camera with 75mm Fixed Lens and Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2TD6166 Outdoor Bispectrum Network Camera
- Product category: Security Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Security Cameras
|
User manual for the Hikvision DS-2TD6166 Outdoor Bispectrum Network Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2TD6166 Outdoor Bispectrum Network Camera from Hikvision features a 1/2.8" sensor and 75mm fixed lens to capture images at a maximum resolution of 1920 x 1080 (visible light) and 640 x 512 (thermal). This camera can be used for 24-hour surveillance thanks to the built-in IR array with a range of up to 1640'. Furthermore, the camera is enclosed in an IP66-rated housing, the system can be used for both indoor and outdoor applications. The camera supports a wide range of smart tracking features such as panorama tracking and event tracking. - Maximum resolution of 1920 x 1080 (visible light) and 640 x 512 (thermal)
- BLC (Backlight Compensation), 3D-DNR (Digital Noise Reduction), WDR (Wide Dynamic Range), EIS (Electronic Image Stabilization), defog
In the Box Hikvision DS-2TD6166 Outdoor Bispectrum Network Camera with 75mm Fixed Lens and Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2TD6166 Outdoor Bispectrum Network Camera with 75mm Fixed Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision Pro Series Specs | | | Image Sensor | Vanadium oxide uncooled focal plane detectors | | Maximum Resolution | 640 x 512 | | Wave Band | 8 to 14 μm | | Thermal Sensitivity (NETD) | <50mK at 25°C | | Focal Length | 75mm | | Mrad | 0.23 | | Field of View (H x V) | 8.3 x 6.6° | | F Number | 1.0 | | Focusing Distance | Minimum 26' (8 m) | | | | Image Sensor | 1/2.8" progressive scan CMOS | | Effective Pixels | 1920 x 1080 | | Minimum Illumination | Color: 0.02 lux at f/1.5° AGC on
B&W: 0.002 lux at f/1.5° AGC on | | Focal Length | 8-250mm, 32x | | Aperture Range | f/1.8 to 6.1 | | | | Pan Speed | Configurable, from 0.1 to 110°/s | | Tilt Range | Configurable, from 0.1 to 50°/s | | Speed | Proportional, supported | | Number of Presets | 300 | | Patrol | 8; Up to 32 presets per patrol | | Patterns | 4; more than 10 minutes per pattern | | Park Action | Preset / pattern scan / patrol scan / auto scan / tilt scan / random scan / frame scan / panorama scan | | PTZ Position Display | On/off | | Scheduled Tasks | Preset / pattern scan / patrol scan / auto scan / tilt scan / random scan / frame scan / panorama scan / doom reboot / doom adjust / aux output | | Movement | Pan: 360° continuous rotation
Tilt: +40 to -90° | | | | IR Distance | Up to 1640' (500 m) | | Intensity | Auto adjust | | | | Streaming | Main
Optical Light: 50 Hz: 25 fps (1920
