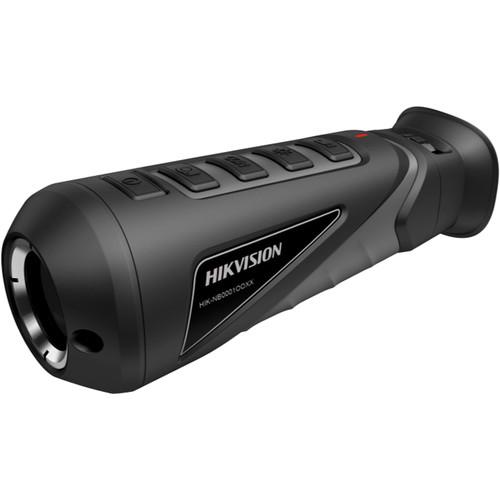

User Manual for Hikvision DS-2TS03-25UM W Handheld Observational Thermal Monocular Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2TS03-25UM W Handheld Observational Thermal
- Product category: Thermal Imagers Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Thermal Imagers
 |
User manual for the Hikvision DS-2TS03-25UM W Handheld Observational Thermal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|

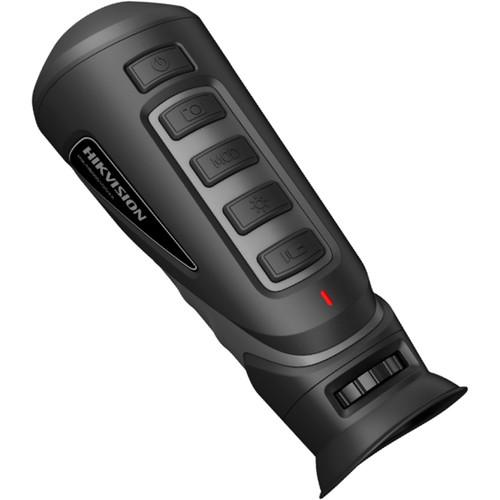

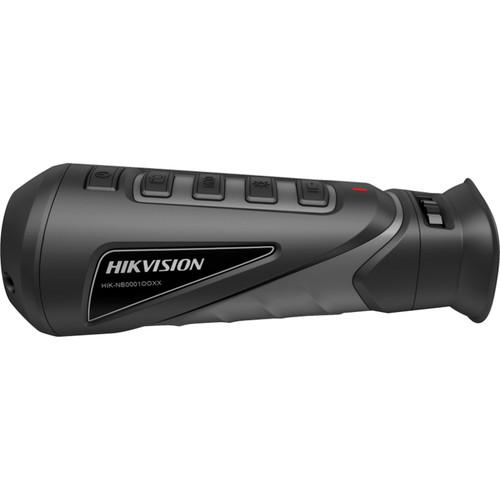

Product description The DS-2TS03-25UM/W Handheld Observational Thermal Monocular from Hikvision is equipped with a 384 x 288 image sensor and a 0.39" 1024 x 768 OLED display. It supports functions of observation, hot spot tracking, distance measurement, and a Wi-Fi hot spot. The high-sensitivity built-in thermal detector provides you with a clear view in total darkness. - DDE (Digital Detail Enhancement) technique
- 3D-DNR, adaptive AGC (Automatic Gain Control)
- Built-in rechargeable Li-ion battery
- Up to five hours of continuous power
- Wi-Fi hot spot functionality
UPC: 842571108392 In the Box Hikvision DS-2TS03-25UM/W Handheld Observational Thermal Monocular Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2TS03-25UM W Handheld Observational Thermal Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2TS03-25UM/W Specs | Image Sensor | Uncooled focal plane arrays | | Resolution | 384 x 288 | | Response | 8 to 14 µm | | Thermal Sensitivity (NETD) | <50 mk (at 25°c, f> | | Lens | 25mm | | Mrad | 0.68 | | Field of View | 14.88 x 11.19° | | F Number | 1.0 | | Monitor | 0.39" / 1 cm OLED, 1024 x 768 | | Image Display | Pallets:
Black hot
White hot
Red hot | | Storage | Built-in 16 GB memory module | | Digital Zoom | 2x | | Battery Type | Lithium-ion battery | | Battery Operating Time | Up to five hours continuous running (with GPS function and Wi-Fi hot spot function off) | | Power Requirement | 5 VDC, 2 A | | Power Consumption | 2 W | | Operating Temperature | -22 to 131°F / -30 to 55°C | | IP Rating | IP67 | | Drop | Tested from 6.56' / 2 m | | Dimensions | 7.3 x 2.9 x 2.6" / 18.5 x 7.4 x 6.6 cm | | Weight | 1 lb / 460 g | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 11.2 x 5.8 x 5.0" |
