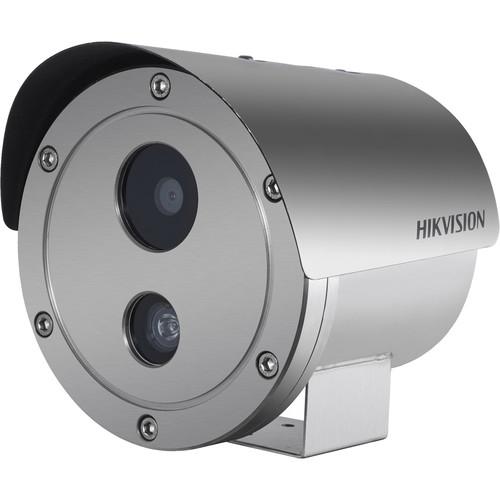

User Manual for Hikvision DS-2XE6222F-IS 2MP Explosion-Resistant Outdoor Network Bullet Camera with 12mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision DS-2XE6222F-IS 2MP Explosion-Resistant Outdoor Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision DS-2XE6222F-IS 2MP Explosion-Resistant Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-2XE6222F-IS 2MP Explosion-Resistant Outdoor Network Bullet Camera from Hikvision has a 1/2.7" progressive scan CMOS sensor to capture video at a resolution up to 1920 x 1080 at 30 fps. The 12mm fixed lens features a 26.6° field of view and an IR range of 98'.
The camera is rated IP68 for outdoor use in an explosion-resistant enclosure made of stainless steel 304. It also features a wide range of smart functions, such as intrusion detection, line crossing detection, object removal, face recognition, and region entrance/exit detection. - Up to 1920 x 1080 resolution
- 120 dB wide dynamic range and 3D-DNR image enhancement
- Supports onboard storage, up to 128GB
- Mirroring, anti-flicker, heartbeat, and privacy masking functions
UPC: 842571103076 In the Box Hikvision DS-2XE6222F-IS 2MP Explosion-Resistant Outdoor Network Bullet Camera with 12mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-2XE6222F-IS 2MP Explosion-Resistant Outdoor Network Bullet Camera with 12mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2XE6222F-IS Specs | | | Sensor | 2 MP 1/2.7" CMOS | | Lens Mount | M12 | | Focal Length | 12mm | | Maximum Aperture | f/1.2 | | Lens Field of View | Horizontal: 0 to 26.6° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.01 Lux
B&W: 0 Lux | | Shutter Speed | 1/100000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps
1920 x 1080 at 50 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | , 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Single | | Audio Formats | G.711, PCM | | Built-In Mic | No | | Built-In Speaker | No | | | | Security | Password Protection | | Supported Protocols | DHCP, DNS, DynDNS, FTP, HTTP, , ICMP, ONVIF Profile G, ONVIF Profile S, RTCP, RTP, RTSP, TCP | | | | Analytics | Line crossing, intrusion, region entrance/exit, unattended baggage, and object removal detection | | Event Trigger | Yes | | Event Action | Recording, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 2 / 2 | | I/O Connections | 1 x RJ45
1 x 6-Pin Terminal Block | | IR Range | 98.43' / 30 m | | Certifications | Explosions, as per Manufacturer | | Internal Storage | None | | External Storage Options | NAS | | Power Source | AC, PoE 802.3af (15 W) | | Power Consumption | 7 W | | Material of Construction | Stainless Steel | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP68 | | Dimensions | H: 8.0 x W: 6.9 x L: 6.8" / H: 20.3 x W: 17.5 x L: 17.3 cm | | Weight | 16.2 lb / 7.3 kg |
