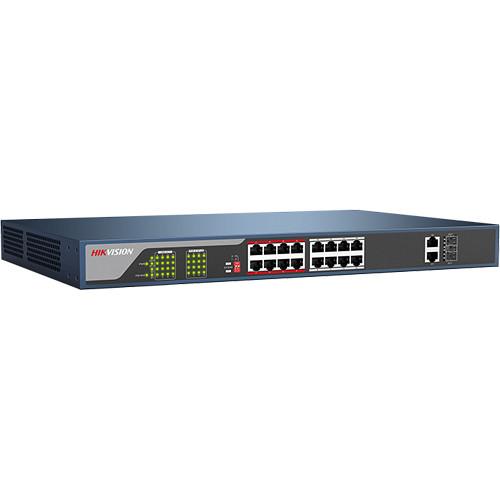

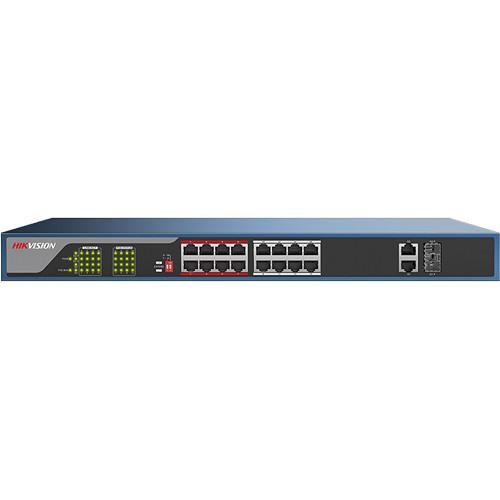

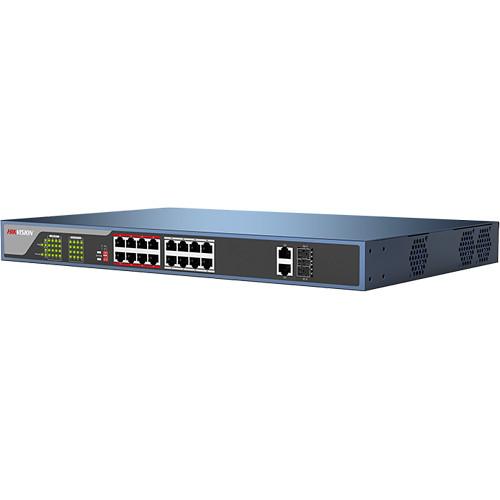

User Manual for Hikvision DS-3E0318P-E M 16-Port Fast Ethernet PoE Unmanaged Switch Click to enlarge the picture
Contents of the user manual for the Hikvision DS-3E0318P-E M 16-Port Fast Ethernet
- Product category: Network Switches, Bridges & Hubs Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Network Switches, Bridges & Hubs
 |
User manual for the Hikvision DS-3E0318P-E M 16-Port Fast Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Provided by third party: DS-3E Series unmanaged POE Ethernet switches are the ideal field switches for powering your Hikvision cameras. With up to 30W of PoE per port, they can safely power most Hikvision IP camera models, domes, bullets, and even many IP PTZs. EXTEND mode allows cameras to be powered over distances greater than the standard 250m, which is perfect for that little extra cable run that is sometimes required.
- Key Features
-
- Supports IEEE 802.3AF/AT POE standards
- Supports Standard and Extend Network modes
- Up to 8.8 Gbps backplane bandwidth
- All-metal construction
UPC: 842571116410 Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-3E0318P-E M 16-Port Fast Ethernet PoE Unmanaged Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-3E0318P-E/M Specs | | | Device Type | Switch - 16 ports - unmanaged | | Enclosure Type | Desktop 1U | | Subtype | Gigabit Ethernet | | Ports | 16 x 10/100 (PoE+) + 1 x 10/100/1000 (uplink) + 1 x Gigabit SFP (uplink) | | Power Over Ethernet (PoE) | PoE+ | | PoE Budget | 135 W | | Performance | Switching capacity: 7.2 Gbps | | MAC Address Table Size | 8K entries | | Features | Auto-uplink (auto MDI/MDI-X), store and forward, full duplex mode, metal housing, MAC address learning, MAC address aging, lightning protection, network mode switch, priority mode, standard mode, isolate mode, extend mode | | Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at | | Status Indicators | Power, link/activity | | | | Interfaces | 16 x 100Base-TX RJ-45 PoE+ - 30 W
1 x 1000Base-X SFP uplink
1 x 1000Base-T RJ-45 uplink | | | | Power Device | Internal power supply | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 150 Watt | | | | Compliant Standards | CSA, cULus | | | | Min Operating Temperature | 32
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
