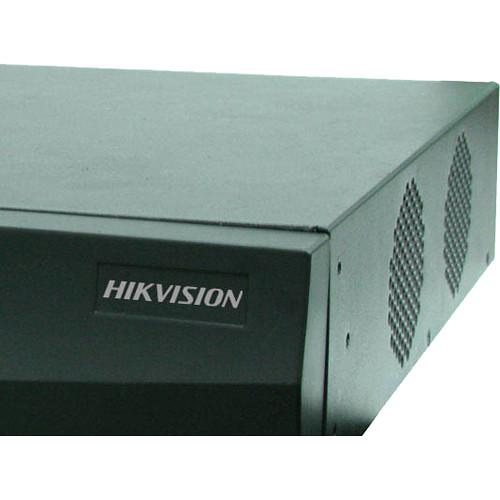

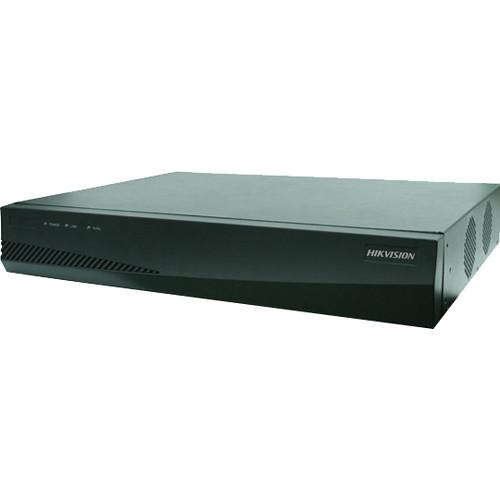

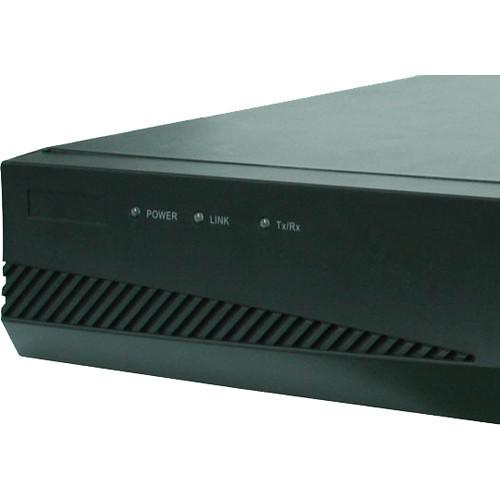

User Manual for Hikvision DS-6404HDI-T High Definition Video Decoder Click to enlarge the picture
Contents of the user manual for the Hikvision DS-6404HDI-T High Definition Video Decoder
- Product category: Video Encoders & Decoders Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Video Encoders & Decoders
 |
User manual for the Hikvision DS-6404HDI-T High Definition Video Decoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 4-channel DS-6404HDI-T High Definition Video Decoder from Hikvision features a Netra processor that allows it to decode videos for up to 5MP resolution. It also supports obtaining of the stream via URL and decoding it. The decoded video can then be output to large screens via BNC, VGA, and HDMI interfaces. - Video and Audio
-
- Private H.264, standard H.264, MPEG2 and MPEG4 video stream formats are supported
- Supports PS, RTP and private customized data encapsulation formats
- PAL and NTSC image standards supported
- Decode video stream at resolution of 5MP, 3MP, 1080p, 720p, SVGA, VGA, 4CIF, DCIF, 2CIF, CIF, and QCIF
- G.722, G.711A, G.711U, MPEG2-L2 and ACC audio stream formats are supported
- Supports obtaining stream via URL and decoding it
- High-definition video output via VGA/HDMI connector and standard-definition video output via a BNC connector
- Window jointing for video wall display
- Decoding
-
- Supports decoding of up to 5MP
- Supports multiple decoding modes like dynamic decoding, cycle decoding, obtain stream from stream media server, and remote playback of recorded files
- Network
-
- One 10/100/1000Mbps self-adaptive Ethernet interface
- Supports TCP, UDP and Multicast network protocols
- Multiple DDNS settings: Peanut Hull, Dyndns, IPServer, NO-IP and HiDDNS
- Supports SADP software for automatically searching and discovering online devices in local network area
- Automatically get an IP address via DHCP protocol
- Remote upgrading and maintenance can be done via web browser or client software
- User Administration
-
- A maximum of 32 user accounts can be created by the system, including 1 administrator and 31 normal users
- The user name of the administrator is admin, which cannot be modified, and the password is allowable to be modified by the administrator only
- No deletion of the administrator is allowed, and the administrator is authorized to set the operation permissions for other users
- Transparent Channel
-
- The decoder adopts the RS-232/RS-485 serial interface to realize transparent transmission
- Transparent channel of the decoder supports multicast transparent transmission as well
- Multiple transparent channels can be established simultaneously
- Two-way Audio
-
- Capable of realizing two-way audio with the remote client
UPC: 816783015977 In the Box Hikvision DS-6404HDI-T High Definition Video Decoder (4-Channel) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-6404HDI-T High Definition Video Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-6404HDI-T Specs | | | VGA | Channels: 4
Resolution: 1920 × 1080 @ 60/50 HZ, 1600 × 1200 @ 60 Hz, 1280 × 1024 @ 60 Hz, 1280 × 720 @ 50/60 Hz, 1024 × 768 @ 60 Hz | | HDMI | Channels: 4
Resolution: 1920 × 1080 @ 60/50 Hz, 1600 × 1200@ 60 Hz, 1280 × 1024 @ 60 Hz, 1280 × 720 @ 50/60 Hz, 1024 × 768 @ 60 Hz | | CVBS | 2-channel | | Audio | 4-channel, DB15 connector | | | | IP Video Inputs | H.264 / MPEG4 / MPEG2 / Private | | Decoding | 4-channel @ 8 MP
4-channel @ 1080p
16-channel @ 720p
32-channel @ 4CIF resolution | | Multiple Display Configuration | 1 / 4 / 9 / 16 | | Audio Compression | G.722 / G.711A / G.711U / MPEG2-L2 / ACC | | Two-Way Audio Input | 2-channel, 3.5 mm connector (2 Vpp, 1 kOhms) | | | | Network | 1 x 10 / 100 / 1000Mbps self-adaptive Ethernet interface | | Serial | 1 x RS-232 (DB9), 1 x RS-485 | | Alarm I/O | 4 x Input
4 x Output | | | | Power Supply | 100 to 240 VAC | | Power Consumption | 70 W | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | 10 to 90% | | Chassis | 19" (48 cm) rack-mounted 1.5U chassis | | Dimensions | 17.3 x 13.4 x 2.8" (44.0 x 34.0 x 7.0 cm) | | Weight | 11.46 lb (5.2 kg) without HDD | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 20.1 x 19.6 x 6.6" |
