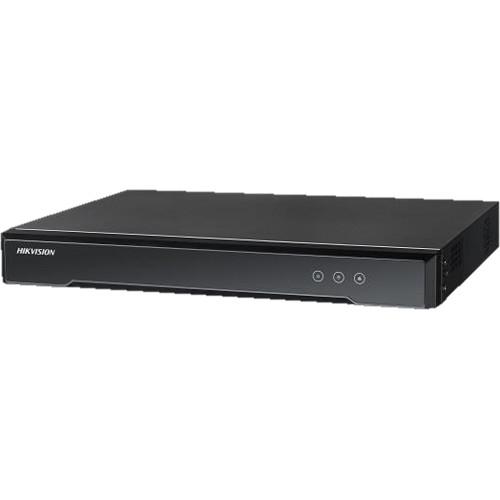

User Manual for Hikvision DS-6700HQHI-SATA Series HD-TVI 8-Channel Encoder Click to enlarge the picture
Contents of the user manual for the Hikvision DS-6700HQHI-SATA Series HD-TVI 8-Channel Encoder
- Product category: Digital Video Recorders (DVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Digital Video Recorders (DVRs)
|
User manual for the Hikvision DS-6700HQHI-SATA Series HD-TVI 8-Channel Encoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-6700HQHI-SATA Series HD-TVI 8-Channel Encoder from Hikvision is for use with HD-TVI, analog cameras, and coaxitron cameras. It is capable of a long transmission distance to enable redundant recording. Its HDD quota and group management allows you to assign a different capacity to different cameras under quota mode. -
- Compatible with HD-TVI and analog cameras
- Connectable to the coaxitron cameras with long transmission distance
- Redundant recording
- VCA detection alarm (line crossing detection and intrusion detection)
- Locks and unlocks video files
- HDD quota and group management allow you to assign a different capacity to different cameras under quota mode
- SATA interface
- One self-adaptive 10M/100M/1000M network interface
- Accessible by EZVIZ Cloud P2P
- Hikvision DDNS (Dynamic Domain Name System)
- Network detection
UPC: 813908024296 In the Box Hikvision DS-6700HQHI-SATA Series HD-TVI 8-Channel Encoder Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-6700HQHI-SATA Series HD-TVI 8-Channel Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-6708HQHI Specs | Video Inputs | 8-channel, BNC
HDTVI Video: 720p/25, 720p/30, 720p/50, 720p/60, 1080p/25, 1080p/30, CVBS | | Audio Inputs | 4 channels
RCA (2.0 V p-p, 1 kOhm) | | Audio Output | 1-channel, RCA (Linear, 1 kOhm) | | Video Compression | H.264 | | Audio Compression | G.711u | | Frame Rate | 1/16 fps to real-time frame rate | | Video Bitrate | 32 kb/s to 10 Mb/s | | Audio Bitrate | 64 kb/s | | Stream Type | Video, Video & Audio | | Video Streaming | 1080p/720p/WD1/4CIF/VGA/CIF | | Dual Stream | Sub-Stream: WD1/4CIF (12 fps), CIF/QVGA/QCIF (real-time) | | Storage Type | SATA, NAS, ISCSI, IPSAN | | Number of Hard Drives Supported | 2 | | Storage Capacity | Up to 6 TB for each disk | | Two-Way Audio Input | 1-channel, RCA (2.0 V p-p, 1 kOhm) (using the 1st channel of audio input) | | Network Interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface | | Serial Interface | 1, RS-485; half-duplex | | Alarm | 8-channel input, 4-channel output | | Power Supply | 12 VDC | | Power Consumption | 30 W (without HDD) | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | 10 to 90% | | Chassis | 380 mm 1U chassis | | Dimensions | 15 x 11.4 x 1.9" (38 x 29 x 4.8 cm) | | Weight | ≤ 4.41 lb (2 kg) | | | | Package Weight | 6.7 lb | | Box Dimensions (LxWxH) | 16.9 x 14.6 x 5.2" |
