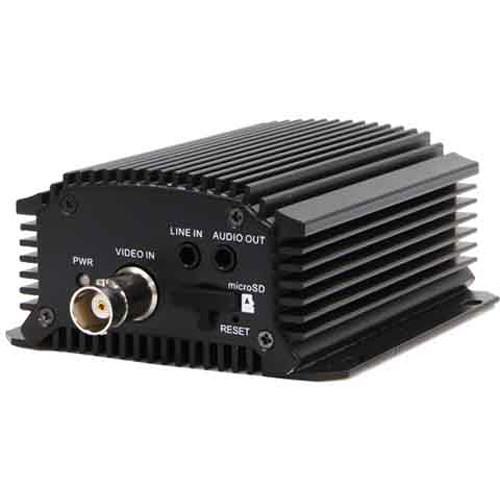

User Manual for Hikvision DS-6701HWI 1-Channel Video Encoder Click to enlarge the picture
Contents of the user manual for the Hikvision DS-6701HWI 1-Channel Video Encoder
- Product category: Video Encoders & Decoders Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Video Encoders & Decoders
|
User manual for the Hikvision DS-6701HWI 1-Channel Video Encoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Bring your analog cameras into the digital IP-based age with this DS-6701HWI 1-Channel Video Encoder from Hikvision which performs real-time H.264, MPEG-4, MPEG-2, or MJPEG compression at resolutions up to WD1/960H 960 x 480 at up to 30 fps. It features support for single or dual stream encoding and has two-way audio communication via dedicated 3.5mm input and output jacks. Also, an RS-485 port enables full PTZ camera control. In addition to all of this, the encoder features 1 alarm input and 1 alarm output, an RJ-45 10/100 Mbps PoE Ethernet port, and support for NAS, iSCSI, and IPSAN storage systems along with a microSD card slot. UPC: 813908020328 In the Box Hikvision DS-6701HWI 1-Channel Video Encoder Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-6701HWI 1-Channel Video Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-6701HWI Specs | Compression Format | H.264
MPEG-4
MPEG-2
MJPEG | | Resolution | WD1/960H 960 x 480 maximum
WD1, 4CIF, 2CIF, CIF, QCIF | | Frame Rate | NTSC: 30 fps
PAL: 25 fps | | Video Streaming | Single, Dual | | Video Bit Rate | 32-3072 kbps, or user defined up to 8192 Mbps | | Audio Compression | G.711u | | Audio Bit Rate | 64 kbps | | Video Input | 1 x Analog BNC (1.0 Vp-p, 75 ohms) | | Audio Input | 1 x Line input interface (2.0 Vp-p, 1 kOhm)
1 x 1/8" (3.5mm) interface (2.0 Vp-p, 1 kOhm) for two-way communication | | Audio Output | 1 x 1/8" (3.5mm) interface (linear, 600 ohms) for two-way communication | | PTZ Control | 1 x RS-485 half-duplex interface | | Alarm | 1 x Input
1 x Output | | Network Interface | 1 x RJ-45 10/100 Mbps adaptive Ethernet (PoE) | | Data Storage | NAS, iSCSI, IPSAN (up to 4 TB capacity for each disk) | | Card Slot | 1 x microSD/SDHC memory card slot (supports up to 32 GB) | | Protocols | IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, hkDDNS, NTP, RTSP, RTP/RTCP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SOCKSv4/v5, PSIA, OnVIF, Hik CGI, netFilter | | Power Requirements | 12 VDC | | Power Consumption | <5 W | | Operating Conditions | Temperature: 14 to 131°F / -10 to 55°C
Humidity: 10 to 90% | | Dimensions | 3.1 x 1.5 x 3.5" / 80 x 39 x 90 mm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 1.33 lb | | Box Dimensions (LxWxH) | 10.05 x 6.45 x 3.95" |
