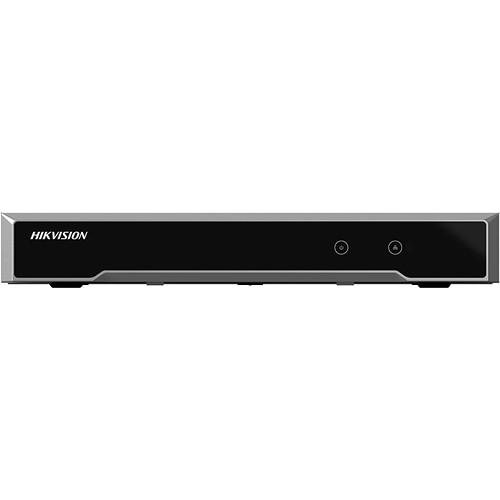

User Manual for Hikvision DS-6704HUHI-K 4-Channel Video Encoder Click to enlarge the picture
Contents of the user manual for the Hikvision DS-6704HUHI-K 4-Channel Video Encoder
- Product category: Video Encoders & Decoders Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Video Encoders & Decoders
|
User manual for the Hikvision DS-6704HUHI-K 4-Channel Video Encoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Provided by third party: The Hikvision DS-67xxHUHI-K Series of TurboHD encoders offers 5 MP/4 MP HD-TVI video input and long distance transmission over UTP and coaxial cable. This series features H.265+, H.265, H.264+, and H.264 video compression, third-party cloud storage (Dropbox/Google Drive/Microsoft OneDrive), and smart functions such as line crossing detection, intrusion detection, sudden scene change detection, and audio exception detection.
- Key Features
-
- 5 MP/4 MP HD-TVI video input and live view
- Long distance transmission over UTP and coaxial cable
- Supports third-party cloud storage
- Line crossing, intrusion, sudden scene change, audio exception detection
UPC: 842571109467 Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-6704HUHI-K 4-Channel Video Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-6704HUHI-K Specs | | | Device Type | Video/audio encoder | | Video Channels | 4 | | Audio Channels | 4 | | TV System | NTSC/PAL | | Image Resolution | 1920 x 1080 | | Compression Format | H.264, H.265, H.264+, G.711u, H.265+ | | | | Frame Rate (Record) | 30 fps (NTSC), 25 fps (PAL) | | Networked | Yes | | | | Frame Rate | 25 fps (PAL), 30 fps (NTSC) | | | | DDNS Support | Yes | | Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, RTCP, IGMP, QOS | | Features | ONVIF support, Dropbox support, Google Drive support, Microsoft OneDrive support | | | | Video Input Ports | HD-TVI x 4 | | Video Input Signal Level | 1.0Vp-p 75 Ohm | | Audio Input Ports | RCA x 4 | | Audio Output Ports | RCA x 1 | | Alarm Ports | Alarm output x 1, alarm input x 4 | | Network Port | 10/100/1000Base-T | | Other Ports | Serial RS-232 x 1, serial RS-485 x 1 | | | | Voltage | 12 V | | Power Consumption | 10 Watt | | | | Width | 12.4 in | | Depth | 9.5 in | | Height | 1.8 in | | Weight | 2.56 lbs | | | | Min Operating Temperature | 14
