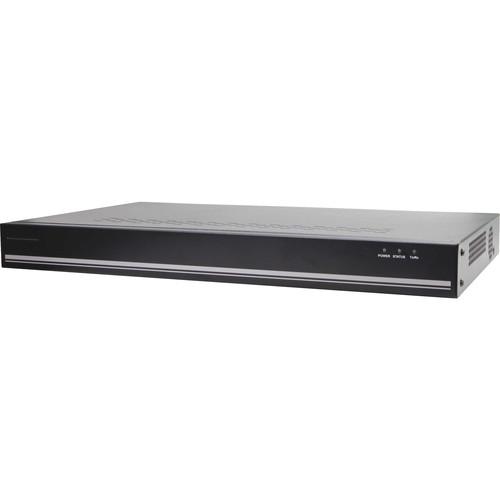

User Manual for Hikvision DS-6716HWI 16-Channel Video Encoder Click to enlarge the picture
Contents of the user manual for the Hikvision DS-6716HWI 16-Channel Video Encoder
- Product category: Video Encoders & Decoders Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Video Encoders & Decoders
|
User manual for the Hikvision DS-6716HWI 16-Channel Video Encoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Bring your analog cameras into the digital IP-based age with this DS-6716HWI 16-Channel Video Encoder from Hikvision which performs real-time H.264, MPEG-4, MPEG-2, or MJPEG compression at resolutions up to WD1/960H 960 x 480 at up to 30 fps. It features 16 channels as well as support for single- or dual-stream encoding and has two-way audio communication via dedicated 3.5mm input and output jacks. Also, RS-485 and RS-232 ports enable full PTZ camera control. In addition to all of this, the encoder features 16 alarm inputs and 4 alarm outputs, an RJ45 10/100/1000 Mbps Ethernet port, and support for NAS, iSCSI, and IPSAN storage systems. UPC: 813908020359 In the Box Hikvision DS-6716HWI 16-Channel Video Encoder Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-6716HWI 16-Channel Video Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-6716HWI Specs | Compression Format | H.264
MPEG-4
MPEG-2
MJPEG | | Resolution | WD1/960H 960 x 480 maximum
WD1, 4CIF, 2CIF, CIF, QCIF | | Frame Rate | NTSC: 30 fps
PAL: 25 fps | | Video Streaming | Single, Dual | | Video Bit Rate | 32-3072 kbps, or user defined up to 8192 Mbps | | Audio Compression | G.711u | | Audio Bit Rate | 64 kbps | | Video Input | 16 x Analog BNC (1.0 V p-p, 75 Ohms) | | Audio Input | 16 x Line input interface (2.0 V p-p, 1 kOhm)
1 x 3.5 mm interface (2.0 V p-p, 1 kOhm) for two-way communication | | Audio Output | 1 x 3.5 mm interface (linear, 600 Ohms) for two-way communication | | PTZ Control | 1 x RS-485 half-duplex interface
1 x RS-232 interface | | Alarm | 16 x Inputs
4 x Outputs | | Network Interface | 1 x RJ45 10/100/1000 Mbps adaptive Ethernet | | Data Storage | NAS, iSCSI, IPSAN (up to 4 TB capacity for each disk) | | Card Slot | None | | Protocols | IPv4/v6, HTTP, HTTPS, QoS layer3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, hkDDNS, NTP, RTSP, RTP/RTCP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SOCKSv4/v5, PSIA, OnVIF, Hik CGI, netFilter | | Power Requirements | 12 VDC | | Power Consumption | <22 W | | Operating Conditions | Temperature: 14 to 131°F / -10 to 55°C
Humidity: 10 to 90% | | Dimensions | 17.3 x 1.8" x 10.8" (440 x 45 x 274 mm) | | Weight | 8.8 lb (4 kg) | | | | Package Weight | 8.75 lb | | Box Dimensions (LxWxH) | 19.4 x 15.6 x 5.3" |
