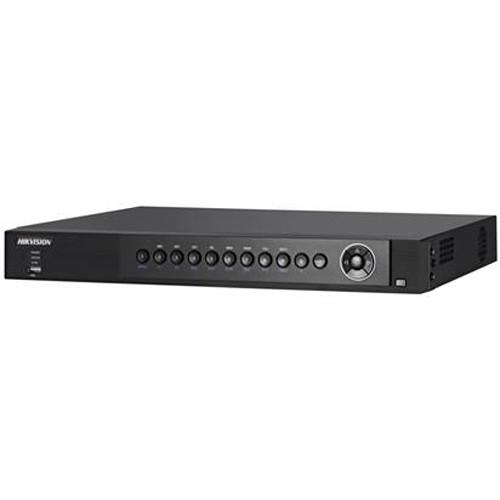

User Manual for Hikvision DS-7200HUHI-F2 N TurboHD Series 8-Channel HD-TVI DVR Click to enlarge the picture
Contents of the user manual for the Hikvision DS-7200HUHI-F2 N TurboHD Series 8-Channel
- Product category: Digital Video Recorders (DVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Digital Video Recorders (DVRs)
|
User manual for the Hikvision DS-7200HUHI-F2 N TurboHD Series 8-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-7200HUHI-F2/N TurboHD Series 8-Channel HD-TVI DVR (6TB) from Hikvision supports long distance transmission over UTP and coaxial cable with a maximum range of 3937’ at 720p and 2624’ at 1080p HD-TVI. It can be connected to HD-TVI and analog cameras and supports up to two 4MP IP cameras. In addition, the DVR comes with a gigabit Ethernet network interface. The DVR supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras, including line crossing and intrusion detection on all channels. It can record footage at a maximum resolution of 3840 x 2160 and supports smart search for efficient playback. Compression and Recording - One-key enabled H.264+ compression to improve encoding efficiency by up to 50%
- Full channel recording at up to 3MP resolution
Video Output - Simultaneous HDMI/VGA output at 4K (3840 x 2160) resolution for HDMI output
- Independent CVBS output improves compatibility and serves as the aux output or live view output only
Storage and Playback - Two SATA interfaces (up to 6 TB capacity per HDD)
- 8-Channel synchronous playback
- Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Smart Function - VQD (Video Quality Diagnostics)
- Unlock pattern for device login for the admin and clear-text password available
- GUID file can be exported for password resetting and imported for finding the forgotten password
- Supports PTZ control via Omnicast VMS of Genetec protocol
Network and Ethernet Access - Hik-Connect P2P & HiDDNS (Dynamic Domain Name System) for network management
- One gigabit Ethernet network interface
- Output bandwidth limit configurable
UPC: 813908029949 In the Box Hikvision DS-7200HUHI-F2/N TurboHD Series 8-Channel HD-TVI DVR (6TB) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-7200HUHI-F2 N TurboHD Series 8-Channel HD-TVI DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-7208HUHI-F2/N-6TB Specs | Video Compression | H.264+/H.264 | | Channels | 8 | | Inputs | Analog Video Input: BNC interface (1.0 V p-p, 75 Ohm), supporting coaxitron connection
HDTVI: 1080p at 25 Hz, 1080p at 30 Hz, 720p at 25 Hz, 720p at 30 Hz, 720p at 50 Hz, 720p at 60 Hz, 3 MP
CVBS: 960H and 4CIF/D1 resolutions supported
IP Video: 2-channel, 4 MP resolution
Audio: 4 channels, RCA (2.0 V p-p, 1 kOhm) | | Audio Compression | G.711u | | Outputs | CVBS: 1-ch, BNC (1.0 V p-p, 75 Ohms), 704 x 480
VGA 1-channel, 60 Hz: 1920 x 1080, 1280 × 1024, 1280 x 720, 1024 x 768
HDMI: 1-channel, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
Audio: 1-channel, RCA (Linear, 1 kOhm) | | Encoding Resolution | 3 MP/1080p/720p/WD1/4CIF/VGA/CIF | | Frame Rates | Main Stream:
3 MP at 15 fps
1080p/720p/WD1/4CIF/VGA/CIF at 25 fps (PAL)/30 fps (NTSC)
Sub-Stream:
WD1/4CIF at 12 fps
CIF/QVGA/QCIF at 25 fps (PAL)/30 fps (NTSC) | | Video Bit Rate | 32 kb/s to 10 Mb/s | | Audio Bit Rate | 64 kb/s | | Stream Type | Video, video and audio | | Synchronous Playback | 8-channel | | Remote Connections | 128 | | Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF | | SATA | 2 x SATA interfaces | | Capacity | 6 TB | | External Interface | Two-Way Audio Input: 1-channel, RCA (2.0 V p-p, 1 kOhm) (using the audio input)
Network Interface: 1 x RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB: Front panel 1 x USB 2.0, Rear panel 1 x USB 3.0
Serial: RS-485 (half-duplex)
Alarm In/Out: 8/4 | | Power Supply | 12 VDC | | Power Consumption | Without HDD: ≤ 20 W | | Working Temperature | 14 to 131°F (-10 to 55°C | | Operating Humidity | 10 to 90% | | Dimensions (W x D x H) | 15 x 12.6 x 1.9" (380 x 320 x 48 mm) | | Weight | Without HDD: 4.4 lb (2 kg) | | | | Package Weight | 8.95 lb | | Box Dimensions (LxWxH) | 17.1 x 15.2 x 5.6" |
