Hikvision DS-7208HTI-K2 TurboHD 8-Channel 8MP Analog

Search your instruction manual in PDF to download

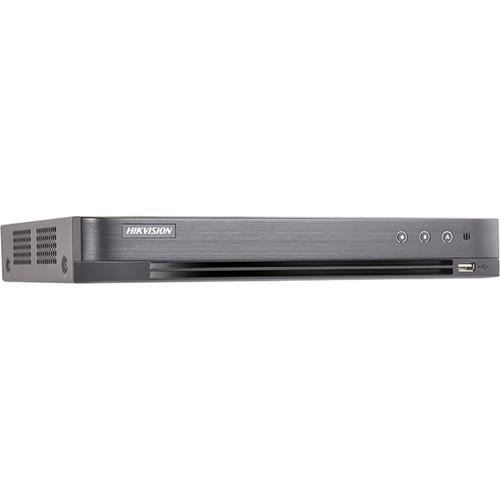

User Manual for Hikvision DS-7208HTI-K2 TurboHD 8-Channel 8MP Analog HD DVR with 12TB HDD

Click to enlarge the picture
Hikvision DS-7208HTI-K2 TurboHD 8-Channel 8MP Analog HD DVR with 12TB HDD Contents of the user manual for the Hikvision DS-7208HTI-K2 TurboHD 8-Channel 8MP Analog
  • Product category: Digital Video Recorders (DVRs) Hikvision
  • Brand: Hikvision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hikvision Digital Video Recorders (DVRs)

User manual for the Hikvision DS-7208HTI-K2 TurboHD 8-Channel 8MP Analog contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hikvision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!



Product description

Stream and record up to eight video channels with the DS-7208HTI-K2 TurboHD Analog HD DVR from Hikvision at resolutions of up to 8MP. Equipped with two SATA ports, each supporting an HDD of up to 8TB, this DVR can accommodate up to 16TB of internal storage (12TB preinstalled). The recorder supports HD-TVI, AHD, HD-CVI, and SD analog cameras via its BNC interface. Additionally, it has a four-channel IP video input for IP cameras up to 8MP. With the help of H.265+, H.265, H.264+, and H.264 compression, file sizes are kept manageable while recording and playback quality is maintained.

The DVR's interface includes RCA ports for two-way audio communication, as well as BNC, HDMI, and VGA connections for video output with support for dual streaming to maximize bandwidth efficiency. The HDMI connection can output up to 4K UHD resolution video.
  • VGA output at up to 1920 x 1080 resolution
  • HDMI output at up to 4K UHD resolution (3840 x 2160)
  • H.265+, H.265, H.264+, and H.264 main stream encoding
  • Self-adaptive HD-TVI/CVBS signal input
  • Full-channel recording at up to 8MP
  • Supports long-distance transmission over UTP and coaxial cable to a maximum of 3937' at 720p and 2625' at 1080p
  • Eight-channel synchronous playback
  • Supports IP cameras up to 8MP
  • Dual stream support
  • Supported analytics include line crossing, intrusion, scene change detection, people counting, heat map functionality, and Video Quality Diagnostics (VQD)
  • 1 x USB 3.0 and 1 x USB 2.0 ports
  • RS-485 half-duplex serial interface
  • Eight alarm inputs and four alarm outputs
  • CSA, FCC, CE, and cUL certified
In the Box Hikvision DS-7208HTI-K2 TurboHD 8-Channel 8MP Analog HD DVR with 12TB HDD
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hikvision DS-7208HTI-K2 TurboHD 8-Channel 8MP Analog HD DVR with 12TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hikvision DS-7208HTI-K2 Specs

    Video Compression H.265+, H.265, H.264+, and H.264
    Analog Video Input 8 x BNC (1 V p-p, 75 Ohms), supporting Hikvision-C UTC protocol
    HD-TVI Input 8 MP, 5 MP, 4 MP, 3 MP, 1920 x 1080 at 30/25 fps, 1280 x 720 at 60/50/30/25 fps
    AHD Input 5 MP, 4 MP, 3 MP, 1920 x 1080 at 30/25 fps, 1280 x 720 at 30/25 fps
    HD-CVI Input 4 MP, 1920 x 1080 at 30/25 fps, 1280 x 720 at 30/25 fps
    CVBS Input NTSC
    IP Video Inputs 4 channels
    Up to 8 MP resolution
    Supports H.265+, H.265, H.264+, and H.264 IP cameras
    Audio Compression G.711u
    Audio Input 4 x RCA (2 V p-p, 1 kOhm)
    CVBS Output 1 x BNC (1 V p-p, 75 Ohms)
    Resolution: 704 x 480 NTSC
    VGA Output 1 channel
    1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz
    HDMI Output 1 channel
    4K UHD (3840 x 2160) at 30 Hz; 2K (2560 x 1440), 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz
    Encoding Resolutions 8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, and CIF
    Frame Rate Main Stream: 8 MP at 12 fps, 5 MP at 20 fps, 3 MP at 18 fps; 4 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF at 25 fps (PAL) / 30 fps (NTSC)
    Sub-Stream: WD1/4CIF/CIF at 25 fps (PAL) / 30 fps (NTSC)
    Video Bit Rate 32 kb/s to 10 Mb/s
    Audio Output 1 x RCA (linear, 1 kOhm)
    Audio Bit Rate 64 kb/s
    Dual Stream Supported
    Stream Type Video, video and audio
    Synchronous Playback 8 channels
    Remote Connections 64
    Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, and ONVIF
    SATA 2 x SATA interfaces
    Capacity Up to 8 TB capacity for each SATA interface
    12 TB preinstalled
    Two-Way Audio Input 1 x RCA (2 V p-p, 1 kOhm), for first audio input
    Network Interface 1 x RJ45, 10M/100M/1000M self-adaptive Ethernet interface
    USB Interface Front Panel: 1 x USB 2.0
    Rear Panel: 1 x USB 3.0
    Serial Interface RS-485 (half-duplex)
    Alarm In/Out 8/4
    Power Supply 12 VDC
    Power Consumption Without HDDs: ≤20 W
    Operating Temperature 14 to 131°F / -10 to 55°C
    Operating Humidity 10 to 90%
    Dimensions 15.0 x 12.6 x 1.9" / 38.0 x 32.0 x 4.8 cm
    Weight ≤4.4 lb / 2 kg, without HDDs
