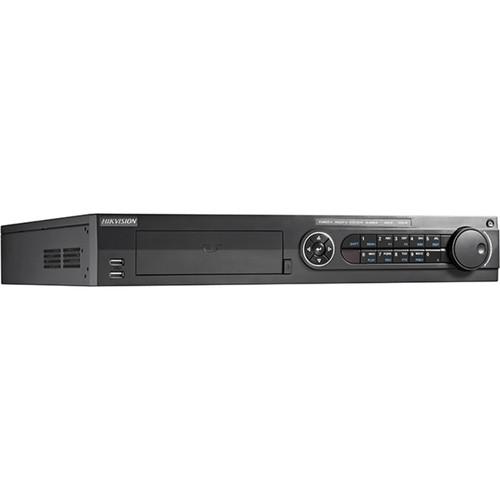

User Manual for Hikvision DS-7332HQI-K4 TurboHD 32-Channel 4MP HD-TVI DVR with 8TB HDD Click to enlarge the picture
Contents of the user manual for the Hikvision DS-7332HQI-K4 TurboHD 32-Channel 4MP HD-TVI
- Product category: Digital Video Recorders (DVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Digital Video Recorders (DVRs)
|
User manual for the Hikvision DS-7332HQI-K4 TurboHD 32-Channel 4MP HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Stream and record up to 32 video channels with the DS-7332HQI-K4 TurboHD HD-TVI DVR from Hikvision at resolutions of up to 4MP. Equipped with four SATA ports, each supporting an HDD of up to 8TB, this DVR can accommodate up to 32TB of internal storage (8TB preinstalled). The recorder supports HD-TVI and SD analog cameras via its BNC interface. Additionally, it has an eight-channel IP video input for IP cameras up to 6MP. With the help of H.265+, H.265, H.264+, and H.264 compression, file sizes are kept manageable while recording and playback quality is maintained.
The DVR's interface includes RCA ports for two-way audio communication, as well as BNC, HDMI, and VGA connections for video output with support for dual streaming to maximize bandwidth efficiency. The HDMI connection can output up to 4K UHD resolution video. - Simultaneous HDMI and VGA output at up to 1920 x 1080 resolution
- HDMI output at up to 4K UHD resolution (3840 x 2160)
- H.265+, H.265, H.264+, and H.264 main stream encoding
- Self-adaptive HD-TVI/CVBS signal input
- Full-channel recording at up to 2MP resolution
- Supports long-distance transmission over UTP and coaxial cable to a maximum of 3937' at 720p and 2625' at 1080p
- 16-channel synchronous playback
- Supports IP cameras up to 6MP
- Supported analytics include line crossing, intrusion, scene change detection, people counting, heat map functionality, and Video Quality Diagnostics (VQD)
- 1 x USB 3.0 and 2 x USB 2.0 ports
- RS-232, full-duplex RS-485, and keyboard serial interfaces
- 16 alarm inputs and four alarm outputs
- CSA, FCC, CE, and cUL certified
In the Box Hikvision DS-7332HQI-K4 TurboHD 32-Channel 4MP HD-TVI DVR with 8TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-7332HQI-K4 TurboHD 32-Channel 4MP HD-TVI DVR with 8TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-7332HQI-K4 Specs | | | Video Compression | H.265+, H.265, H.264+, and H.264 | | Analog Video Input | 32 x BNC (1 V p-p, 75 Ohms), supporting Hikvision-C UTC protocol | | HD-TVI Input | 4 MP, 3 MP, 1920 x 1080 at 30/25 fps, 1280 x 720 at 60/50/30/25 fps | | CVBS Input | PAL/NTSC | | IP Video Inputs | 8 channels (up to 40 channels with analog channels disabled)
Up to 6 MP resolution
Supports H.265+, H.265, H.264+, and H.264 IP cameras | | Audio Compression | G.711u | | Audio Input | 4 x RCA (2 V p-p, 1 kOhm) | | | | CVBS Output | 1 x BNC (1 V p-p, 75 Ohms)
Resolution: 704 x 576 PAL, 704 x 480 NTSC | | HDMI/VGA Output | 1 channel
1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz | | HDMI Output | 1 channel
4K UHD (3840 x 2160) at 30 Hz; 2K (2560 x 1440), 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz | | Encoding Resolutions | When 1080p: 1080p, 720p, WD1, 4CIF, VGA, and CIF | | Frame Rate | Main Stream
For 4MP Stream Access: 1080p lite / 720p / WD1 / 4CIF / VGA / CIF at 25 fps (PAL) / 30 fps (NTSC)
For 1080p Stream Access: 1080p/720p at 15 fps; 720p/WD1/4CIF/VGA/CIF at 25 fps (PAL) / 30 fps (NTSC)
For 720p Stream Access: 720p/WD1/4CIF/VGA/CIF at 25 fps (PAL) / 30 fps (NTSC)
Sub-Stream
WD1/4CIF at 12 fps, CIF at 25 fps (PAL) / 30 fps (NTSC) | | Video Bit Rate | 32 kb/s to 6 Mb/s | | Audio Output | 1 x RCA (linear, 1 kOhm) | | Audio Bit Rate | 64 kb/s | | Dual Stream | Supported | | Stream Type | Video, video and audio | | Synchronous Playback | 16 channels | | | | Remote Connections | 128 | | Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, and ONVIF | | | | SATA | 4 x SATA interfaces | | eSATA | Supported | | Capacity | Up to 8 TB capacity for each SATA interface
8 TB preinstalled | | | | Two-Way Audio Input | 1 x RCA (2 V p-p, 1 kOhm), independent | | Network Interface | 1 x RJ45, 10M/100M/1000M self-adaptive Ethernet interface | | USB Interface | Front Panel: 2 x USB 2.0
Rear Panel: 1 x USB 3.0 | | Serial Interface | RS-232, RS-485 (full duplex), and keyboard | | Alarm In/Out | 16/4 | | | | Power Supply | 100 to 240 VAC | | Power Consumption | Without HDDs: ≤45 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Dimensions | 17.3 x 15.4 x 2.8" / 44 x 39 x 7 cm | | Weight | ≤15.4 lb / 7 kg, without HDDs |
