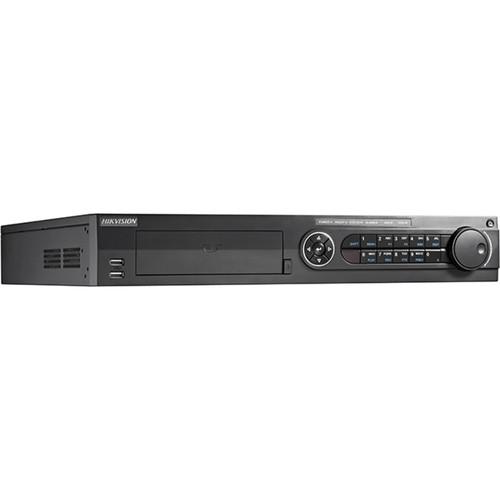

User Manual for Hikvision DS-7332HUI-K4 TurboHD 32-Channel 5MP Analog HD DVR with 4TB HDD Click to enlarge the picture
Contents of the user manual for the Hikvision DS-7332HUI-K4 TurboHD 32-Channel 5MP Analog
- Product category: Digital Video Recorders (DVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Digital Video Recorders (DVRs)
|
User manual for the Hikvision DS-7332HUI-K4 TurboHD 32-Channel 5MP Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The DS-7332HUI-K4 TurboHD 32-Channel 5MP Analog HD DVR with 4TB HDD from Hikvision enables you to record from and manage up to 32 cameras. This DVR offers full channel recording at up to 5MP resolution. It comes with a 4TB HDD preinstalled. Storage is expandable to four SATA HDDs, each with a maximum 8TB capacity, for a total of 32TB. A BNC interface supports HD-TVI and analog cameras. Additionally, IP cameras up to 8MP are supported. H.265+, H.265, H.264+, and H.264 video compression keep file sizes manageable while maintaining quality.
The DVR supports four channels of audio recording and two-way audio communication via RCA. In addition, it has one VGA and two HDMI connections for video output with support for dual streaming to maximize bandwidth efficiency. The VGA and HDMI outputs transmit video at up to 1080p second HDMI connection can output up to 4K UHD resolution video. - Self-adaptive HD-TVI/CVBS signal input
- Supports long-distance transmission over UTP and coaxial cables to a maximum of 3937' at 720p and 2625' at 1080p
- 16-channel synchronous playback support
- Supports IP cameras up to 8MP
- Supported analytics include line crossing, intrusion, scene change detection, people counting, heat map functionality, and Video Quality Diagnostics (VQD)
- 1 x USB 3.0 and 2 x USB 2.0 ports
- 2 x self-adaptive 1000M Ethernet ports
- RS-232, RS-485, and keyboard serial interfaces
- 16 alarm inputs and 4 alarm outputs
- CSA, FCC, CE, and cUL certified
In the Box Hikvision DS-7332HUI-K4 TurboHD 32-Channel 5MP Analog HD DVR with 4TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-7332HUI-K4 TurboHD 32-Channel 5MP Analog HD DVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-7332HUI-K4 Specs | | | Video Compression | H.265+, H.265, H.264+, H.264 | | Analog Video Input | 32
BNC interface (1.0 V p-p, 75 Ohms), supporting Hikvision-C UTC protocol | | HD-TVI Input | 5 MP, 4 MP, 3 MP, 1920 x 1080 at 30 fps, 1920 x 1080 at 25 fps, 1280 x 720 at 60 fps, 1280 x 720 at 50 fps, 1280 x 720 at 30 fps, 1280 x 720 at 25 fps | | CVBS Input | NTSC, PAL | | IP Video Inputs | 8 (up to 40)
Up to 8 MP resolution
Supports H.265+, H.265, H.264+, H.264 IP cameras | | Audio Compression | G.711u | | Audio Input | 4-channel RCA, 2.0 V p-p, 1 kOhm | | CVBS Output | 1-channel BNC, 1.0 V p-p, 75 Ohms
Resolution:
NTSC: 704 x 480
PAL: 704 x 576 | | HDMI Outputs | Output 1:
1 Channel at 60 Hz: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Output 2:
1 Channel at 30 Hz: 3840 x 2160
1 Channel at 60 Hz: 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | VGA Output | 1 Channel at 60 Hz: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Encoding Resolutions | 5 MP, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, CIF | | Frame Rate | Main Stream:
5 MP at 12 fps, 4 MP at 15 fps, 3 MP at 18 fps, 1080p/720p/WD1/4CIF/VGA/CIF at 30 fps (NTSC) / 25 fps (PAL)
Sub Stream:
WD1/4CIF/CIF at 30 fps (NTSC) / 25 fps (PAL) | | Video Bit Rate | 32 kb/s to 10 Mb/s | | Audio Output | 1-channel RCA (linear, 1 kOhm) | | Audio Bit Rate | 64 kb/s | | Dual Stream | Supported | | Stream Type | Video, video & audio | | Synchronous Playback | 16 channels | | | | Remote Connections | 128 | | Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF | | | | SATA | 4 SATA interfaces | | eSATA | Supported | | Capacity | Up to 8 TB capacity for each disk (4 TB HDD preinstalled) | | | | Two-Way Audio Input | 1-channel RCA (2.0 V p-p, 1 kOhm), independent | | Network Interface | 2 x RJ45 10/100/1000M self-adaptive Ethernet | | USB Interface | Front Panel: 2 x USB 2.0
Rear Panel: 1 x USB 3.0 | | Serial Interface | RS-232, RS-485 (full-duplex), keyboard | | Alarm I/O | 16/4 | | | | Power Supply | 100 to 240 VAC | | Power Consumption | Without HDD: ≤74 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Dimensions (W x D x H) | 17.3 x 15.4 x 2.8" / 440 x 390 x 70 mm | | Weight | ≤15.4 kg / ≤7 kg |
