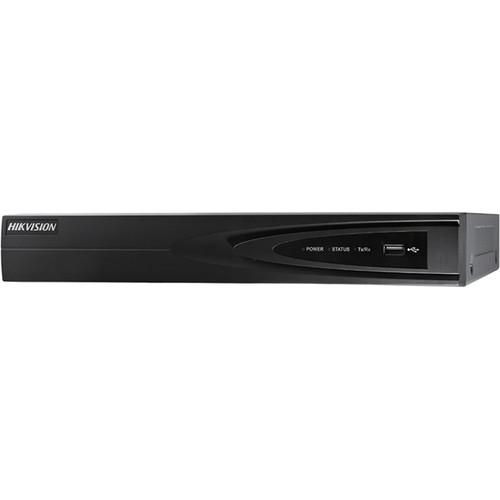

Hikvision DS-7604NI-E1 4P 4-Channel Embedded Plug

Search your instruction manual in PDF to download

User Manual for Hikvision DS-7604NI-E1 4P 4-Channel Embedded Plug & Play NVR with 6TB HDD

Click to enlarge the picture
Hikvision DS-7604NI-E1 4P 4-Channel Embedded Plug & Play NVR with 6TB HDD Contents of the user manual for the Hikvision DS-7604NI-E1 4P 4-Channel Embedded Plug
  • Product category: Network Video Recorders (NVRs) Hikvision
  • Brand: Hikvision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hikvision Network Video Recorders (NVRs)

User manual for the Hikvision DS-7604NI-E1 4P 4-Channel Embedded Plug contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hikvision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!



Product description

Record video and audio from up to 4 cameras with Hikvision's 4-Channel NVR, offering plug-and-play PoE interfaces and capable of being used standalone or as part of a comprehensive surveillance system. Main features include multiple recording and playback modes, two-way audio, and HDMI and VGA monitoring output. Record and play back in up to 1080p HD resolution using Hikvision or 3rd-party network cameras. The NVR features a SATA interface supporting up to 6TB HDD, and comes with a pre-installed 6TB HDD.
    Compression
    • Connect up to 4 network cameras
    • Independent configuration for each channel, including resolution, frame rate, and bit rate
    • Each channel supports two compression parameters — continuous and event — which can be configured locally and remotely
    • Configurable video input/output quality
    • Watermark support
    Local Monitoring
    • Simultaneous HDMI and VGA outputs at up to 1920x1080p resolution
    • Multiple screen display in live view
    • Adjustable screen display sequence
    • Live view screen is switchable in group
    • Manual switch and automatic cycle live view
    • Adjustable automatic cycle intervals
    • Selected live view channel can be shielded
    • Motion detection, tamper-proof, video exception alert, and video loss alert functions
    • Privacy mask
    • PTZ protocols supported: PTZ preset, patrol, and pattern
    • Mouse-controllable zoom and PTZ tracing
    HDD Management
    • Supports 1 SATA disk, up to 6TB
    • HDD group management
    • HDD property: redundancy, read-only, read/write
    • HDD quota management: a different capacity can be assigned to each channel
    • Supports S.M.A.R.T and bad sector detection
    Recording, Capture, and Playback
    • Holiday recording schedule configuration
    • Continuous and event video encoding parameters
    • 8 recording periods with separated recording types
    • Pre-record and post-record for alarm
    • Motion detection recording
    • Pre-record time for schedule
    • Search recorded files and captured photos by event (alarm input/motion detection/VCA)
    • Customization tags
    • Search and playback by tags
    • Lock/unlock recorded files
    • Search and playback by channel, type, start time, end time, and more
    • Zoom during playback
    • Reverse playback for multi-channel display
    • Pause, speed up/down, skip forward, skip backward during playback
    • Up to 4-channel synchronous playback at 4CIF real time
    • Smart playback supported
    Backup
    • Export video data via USB port
    • Export video clips during playback
    • Management and maintenance of backup devices
    Alarm and Exception
    • Alarm for VCA, video loss, motion detection, tampering, HDD Full, HDD Error, Network Disconnected, IP Conflicted, Illegal Login, Recording Exception, and more
    • Alarm triggers full screen monitoring, audible warming, notifying surveillance center, sending email, and alarm output
    • Automatic restore when system is abnormal
    Other Local Functions
    • Operation by mouse and remote control
    • Three-level user management
    • Admin user can create many operating accounts and define their operating permissions, which includes blocked channels
    • Operation, alarm exceptions, and information log recording and searching
    • Import and export device configuration information
    Network
    • One self-adaptive 10M/100M/1000M network interface and 4 Plug & Play PoE Interfaces independent PoE network interfaces are provided
    • IPv6 supported
    • TCP/IP protocol, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, UPnP, NFS, and iSCSI are supported
    • TCP, UDP, and RTP for unicast
    • Auto/manual port mapping and automatic UPnP discovery
    • Remote web browser access by HTTPS ensures high security
    • Remote search, playback, download, locking, and unlocking
    • Remote import/export of device parameters
    • Remote viewing of device status, system logs, and alarm status
    • Remote locking and unlocking of control panel and mouse
    • Remote HDD formatting and program upgrading
    • Remote system restart and shutdown
    • Alarm and exception information can be sent to the remote host
    • Remotely start/stop recording
    • Remotely start/stop alarm output
    • Upgrade by remote FTP server is supported
    • Remote PTZ control
    • Two-way audio
    • Embedded WEB server
    • Supports access by Ezviz
    Development Support
    • SDK for Windows and Linux systems
    • Source code of software application for demo
    • Development support and training for use of application
UPC: 813908022087 In the Box Hikvision DS-7604NI-E1/4P 4-Channel Embedded Plug & Play NVR with 6TB HDD
  • USB Mouse
  • IR Remote (Batteries not Included)
  • Power Cord
  • Hard Drive Mounting Screws and Brackets
  • 6 TB Hard Drive (Pre-Installed)
  • Hard Drive Cables
  • Quick Start Guide
  • Manual/Software CD
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hikvision DS-7604NI-E1 4P 4-Channel Embedded Plug & Play NVR with 6TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hikvision DS-7604NI-E1 Specs

    IP Video Inputs 4 channels
    Two-Way Audio 1x RCA input (2.0 V p-p, 1 kOhm)
    Bandwidth Incoming: 40 Mb/s
    Outgoing: 80 Mb/s
    Remote Connection 128
    Monitoring Outputs 1x HDMI, 1 VGA

    Resolution (via either output): 1920 x 1080p at 60 Hz, 1600 x 1200 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz
    Recording Resolution 5 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
    Frame Rate Main Stream: 50 fps (P) / 60 fps (N)
    Sub-Stream: 50 fps (P) / 60 fps (N)
    Audio Output 1x RCA (Linear, 1 kOhm)
    Synchronous Playback 4 channels
    Live View / Playback 5 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
    Decoding 4-channels at 1080p
    SATA 1x SATA interface supporting 6 TB
    6 TB HDD pre-installed
    Network Interface 1x RJ45 10/100/1000 Mb/s self-adaptive Ethernet interface
    USB Interface 1x USB 2.0 and 1x USB 3.0
    Alarm Input 4 channels
    Alarm Output 1 channel
    PoE Interfaces 4 Plug & Play PoE Interfaces independent 100 Mb/s PoE network interfaces
    Maximum Power 50 W
    Consumption without hard disk and PoE: ≤ 10W
    Supported Standards AF and AT
    Power Supply 100-240 VAC
    Operating Temperature 14 to 131°F (-10 to 55°C)
    Operating Humidity 10 to 90 %
    Chassis 19" rack-mounted 1U chassis
    Dimensions 12.4 x 9.1 x 1.8" (31.5 x 23 x 4.6 cm)
    Weight ≤ 2.2 lb (1 kg) (without HDD)
