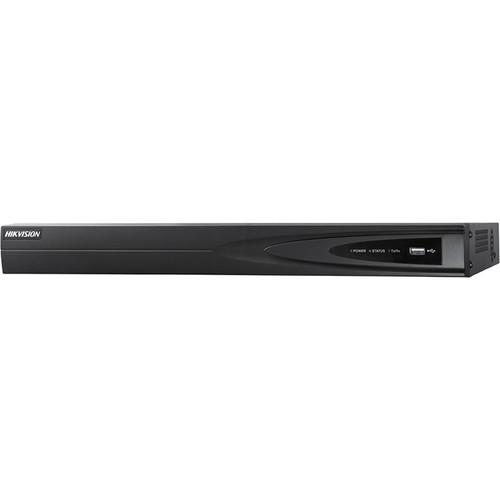

User Manual for Hikvision DS-7608NI-E2 8P 8-Channel Embedded Plug & Play NVR with 6TB HDD Click to enlarge the picture
Contents of the user manual for the Hikvision DS-7608NI-E2 8P 8-Channel Embedded Plug
- Product category: Network Video Recorders (NVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Network Video Recorders (NVRs)
|
User manual for the Hikvision DS-7608NI-E2 8P 8-Channel Embedded Plug contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Record video and audio from up to 8 cameras with Hikvision's 8-Channel NVR, offering plug-and-play PoE interfaces and capable of being used standalone or as part of a comprehensive surveillance system. Main features include multiple recording and playback modes, two-way audio, and HDMI and VGA monitoring output. Record and play back in up to 1080p HD resolution using Hikvision or 3rd-party network cameras. The NVR features two SATA interfaces each supporting up to a 6TB HDD, and comes with a pre-installed 6TB HDD. - Compression
-
- Connect up to 8 network cameras
- Independent configuration for each channel, including resolution, frame rate, and bit rate
- Each channel supports two compression parameters — continuous and event — which can be configured locally and remotely
- Configurable video input/output quality
- Watermark support
- Local Monitoring
-
- Simultaneous HDMI and VGA outputs at up to 1920x1080p resolution
- Multiple screen display in live view
- Adjustable screen display sequence
- Live view screen is switchable in group
- Manual switch and automatic cycle live view
- Adjustable automatic cycle intervals
- Selected live view channel can be shielded
- Motion detection, tamper-proof, video exception alert, and video loss alert functions
- Privacy mask
- PTZ protocols supported: PTZ preset, patrol, and pattern
- Mouse-controllable zoom and PTZ tracing
- HDD Management
-
- Supports 2 SATA disks, each up to 6TB
- HDD group management
- HDD property: redundancy, read-only, read/write
- HDD quota management: a different capacity can be assigned to each channel
- Supports S.M.A.R.T and bad sector detection
- Recording, Capture, and Playback
-
- Holiday recording schedule configuration
- Continuous and event video encoding parameters
- 8 recording periods with separated recording types
- Pre-record and post-record for alarm
- Motion detection recording
- Pre-record time for schedule
- Search recorded files and captured photos by event (alarm input/motion detection/VCA)
- Customization tags
- Search and playback by tags
- Lock/unlock recorded files
- Search and playback by channel, type, start time, end time, and more
- Zoom during playback
- Reverse playback for multi-channel display
- Pause, speed up/down, skip forward, skip backward during playback
- Up to 8-channel synchronous playback at 4CIF real time
- Smart playback supported
- Backup
-
- Export video data via USB port
- Export video clips during playback
- Management and maintenance of backup devices
- Alarm and Exception
-
- Alarm for VCA, video loss, motion detection, tampering, HDD Full, HDD Error, Network Disconnected, IP Conflicted, Illegal Login, Recording Exception, and more
- Alarm triggers full screen monitoring, audible warming, notifying surveillance center, sending email, and alarm output
- Automatic restore when system is abnormal
- Other Local Functions
-
- Operation by mouse and remote control
- Three-level user management
- Admin user can create many operating accounts and define their operating permissions, which includes blocked channels
- Operation, alarm exceptions, and information log recording and searching
- Import and export device configuration information
- Network
-
- One self-adaptive 10M/100M/1000M network interface and 8 Plug & Play PoE Interfaces independent PoE network interfaces are provided
- IPv6 supported
- TCP/IP protocol, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, UPnP, NFS, and iSCSI are supported
- TCP, UDP, and RTP for unicast
- Auto/manual port mapping and automatic UPnP discovery
- Remote web browser access by HTTPS ensures high security
- Remote search, playback, download, locking, and unlocking
- Remote import/export of device parameters
- Remote viewing of device status, system logs, and alarm status
- Remote locking and unlocking of control panel and mouse
- Remote HDD formatting and program upgrading
- Remote system restart and shutdown
- Alarm and exception information can be sent to the remote host
- Remotely start/stop recording
- Remotely start/stop alarm output
- Upgrade by remote FTP server is supported
- Remote PTZ control
- Two-way audio
- Embedded WEB server
- Supports access by Ezviz
- Development Support
-
- SDK for Windows and Linux systems
- Source code of software application for demo
- Development support and training for use of application
UPC: 816783019722 In the Box Hikvision DS-7608NI-E2/8P 8-Channel Embedded Plug & Play NVR with 6TB HDD USB Mouse IR Remote (Batteries not Included) Power Cord Hard Drive Mounting Screws and Brackets 6 TB Hard Drive (Pre-Installed) Hard Drive Cables Rack Mount Ears Quick Start Guide Manual/Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-7608NI-E2 8P 8-Channel Embedded Plug & Play NVR with 6TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-7608NI-E2 Specs | IP Video Inputs | 8 channels | | Two-Way Audio | 1x RCA input (2.0 V p-p, 1 kOhm) | | Bandwidth | Incoming: 80 Mb/s
Outgoing: 80 Mb/s | | Remote Connection | 128 | | Monitoring Outputs | 1x HDMI, 1 VGA
Resolution (via either output): 1920 x 1080p at 60 Hz, 1600 x 1200 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz | | Recording Resolution | 5 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF | | Frame Rate | Main Stream: 50 fps (P) / 60 fps (N)
Sub-Stream: 50 fps (P) / 60 fps (N) | | Audio Output | 1x RCA (Linear, 1 kOhm) | | Synchronous Playback | 8 channels | | Live View / Playback | 5 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF | | Decoding | 8-channels at 720p, 6-channels at 1080p | | SATA | 2x SATA interfaces, each supporting 6 TB
6 TB HDD pre-installed | | Network Interface | 1x RJ45 10/100/1000 Mb/s self-adaptive Ethernet interface | | USB Interface | 1x USB 2.0 and 1x USB 3.0 | | Alarm Input | 4 channels | | Alarm Output | 1 channel | | PoE Interfaces | 8 Plug & Play PoE Interfaces independent 100 Mb/s PoE network interfaces | | Maximum Power | 120 W
Consumption without hard disk and PoE: ≤ 10W | | Supported Standards | AF and AT | | Power Supply | 100-240 VAC | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | 10 to 90 % | | Chassis | 19" rack-mounted 1U chassis | | Dimensions | 17.5 x 11.4 x 1.8" (44.5 x 29 x 4.6 cm) | | Weight | ≤ 2.2 lb (1 kg) (without HDD) | | | | Package Weight | 11.2 lb | | Box Dimensions (LxWxH) | 19.3 x 15.4 x 5.3" |
