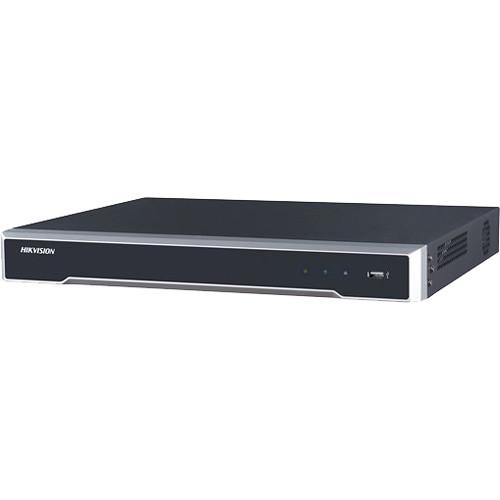

User Manual for Hikvision DS-7616NI-Q2 16P 16-Channel 4K UHD NVR with 16TB HDD Click to enlarge the picture
Contents of the user manual for the Hikvision DS-7616NI-Q2 16P 16-Channel 4K UHD
- Product category: Network Video Recorders (NVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Network Video Recorders (NVRs)
|
User manual for the Hikvision DS-7616NI-Q2 16P 16-Channel 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Record from and manage up to 16 cameras with the DS-7616NI-Q2/16P 16-Channel 4K UHD NVR with 16TB HDD from Hikvision. The recorder is preinstalled with 16TB of HDD storage. H.265, H.265+, H.264, and H.264+ compressions keep file sizes manageable while maintaining the best quality possible. Two-way audio communication is supported.
This NVR has HDMI and VGA video outputs. Hik-Connect enables seamless network management. - Compatible with Hikvision and third-party IP cameras
- Long distance network transmission via PoE up to 984'
- 1000M self-adaptive Ethernet port
- Live view, storage, and playback up to 8MP
- 160 Mb/s incoming and 80 Mb/s outgoing bandwidth
- CSA, FCC, CE, and cUL certified
UPC: 842571123487 In the Box Hikvision DS-7616NI-Q2/16P 16-Channel 4K UHD NVR with 16TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-7616NI-Q2 16P 16-Channel 4K UHD NVR with 16TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-7616NI-Q2 Specs | | | IP Video Inputs | 16
Up to 8 MP Resolution | | HDMI Interface | 1 | | VGA Interface | 1 | | Recording Resolutions | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF | | HDMI Output Resolution | 30 Hz: 3840 x 2160
60 Hz: 1920 x 1080p, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 | | VGA Output Resolution | 60 Hz: 1920 x 1080p, 1280 x 1024, 1280 x 720, 1024 x 768 | | Two-Way Audio | 1 x RCA Input (2.0 V p-p, 1 kOhm)
1 x RCA Output (Linear, 1 kOhm) | | | | Decoding Formats | H.265, H.265+, H.264, H.264+, MPEG-4 | | Live View / Playback Resolutions | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF | | Synchronous Playback | 16-Channel | | Capability | 1-Channel at 8 MP
4-Channel at 1080p | | | | Bandwidth | Incoming: 160 Mb/s
Outgoing: 80 Mb/s | | Protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS | | | | HDD Capacity | 2 x SATA Ports (8 TB Capacity per Disk) | | HDD Included | 16 TB Preinstalled | | | | Network Interface | 1 x RJ45 1000M Self-Adaptive Ethernet | | USB Interface | 2 x USB 2.0 | | PoE Interface | 16 x RJ45 100M Self-Adaptive Ethernet (≤150 W, IEEE 802.3af/at) | | Alarm | 1 x Input
1 x Output | | | | Power Supply | 100 to 240 VAC | | Power | ≤280 W | | Power Consumption | ≤15 W (Without HDD) | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% Humidity (Non-Condensing) | | Chassis | 1 RU | | Dimensions (W x D x H) | 15.2 x 12.4 x 2" / 385 x 315 x 52 mm | | Weight | ≤ 6.6 lb / 3 kg (Without HDD) |
