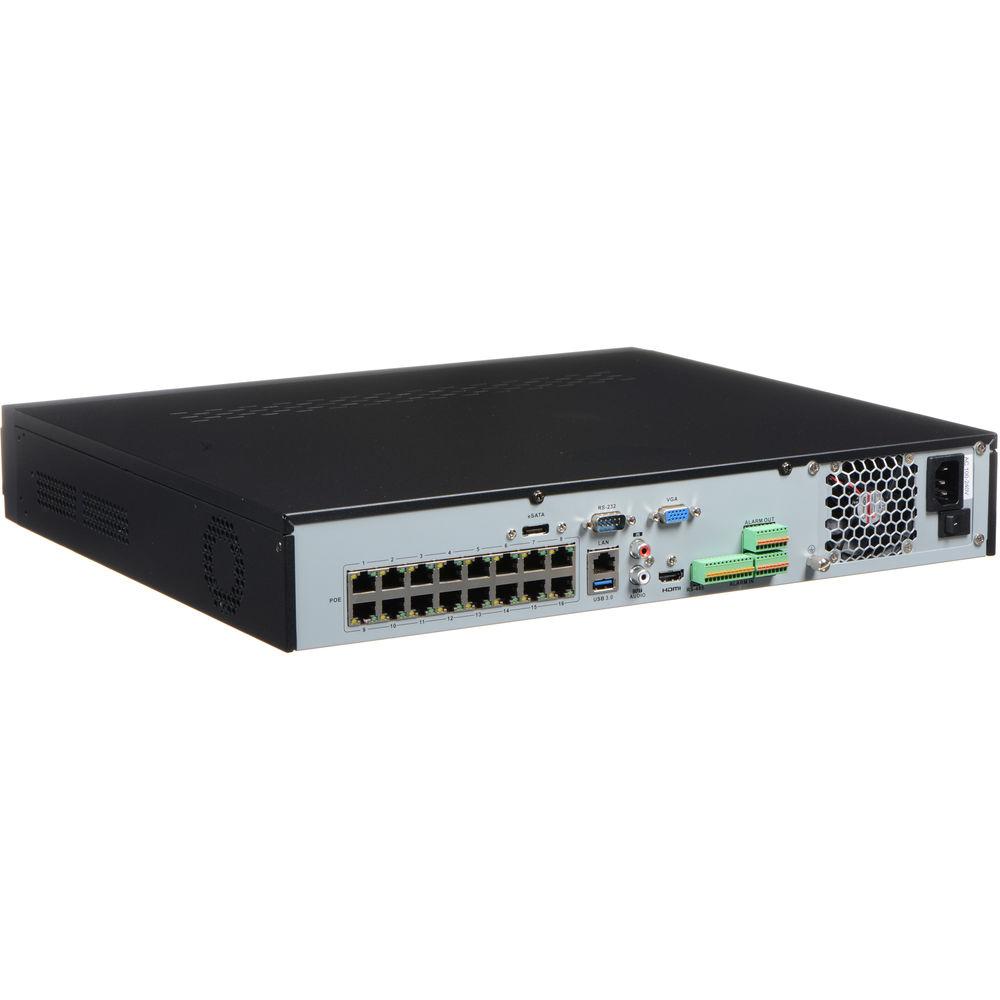

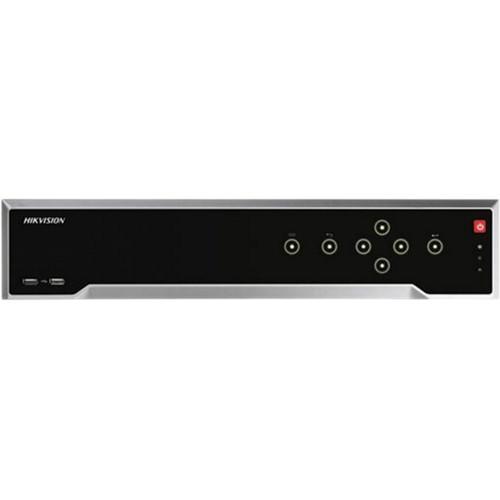

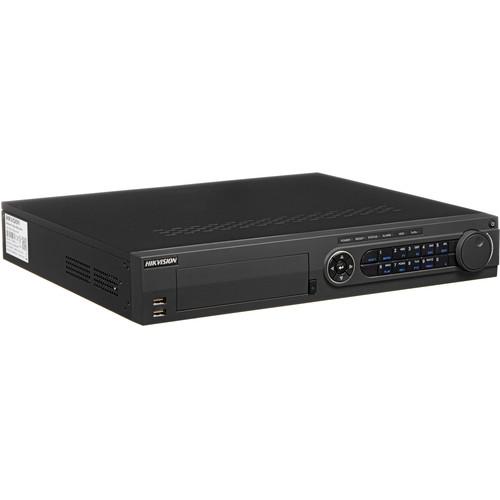

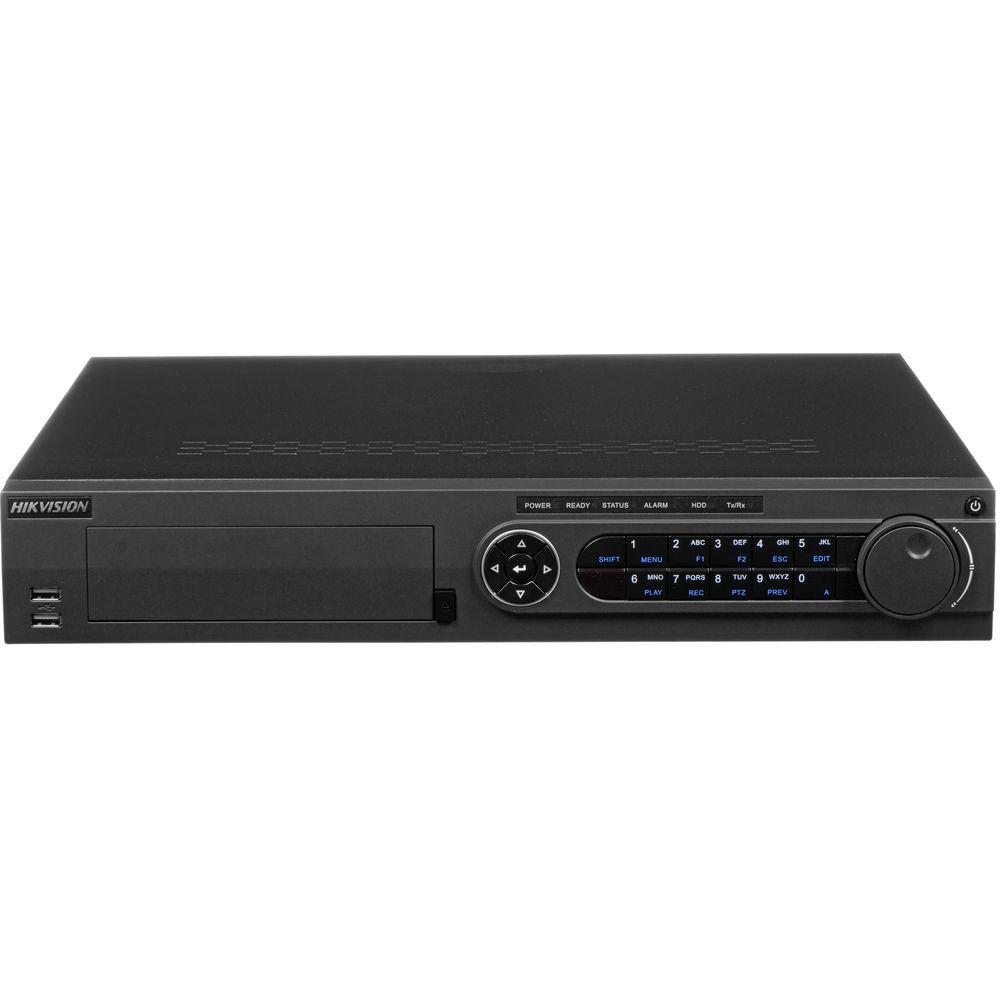

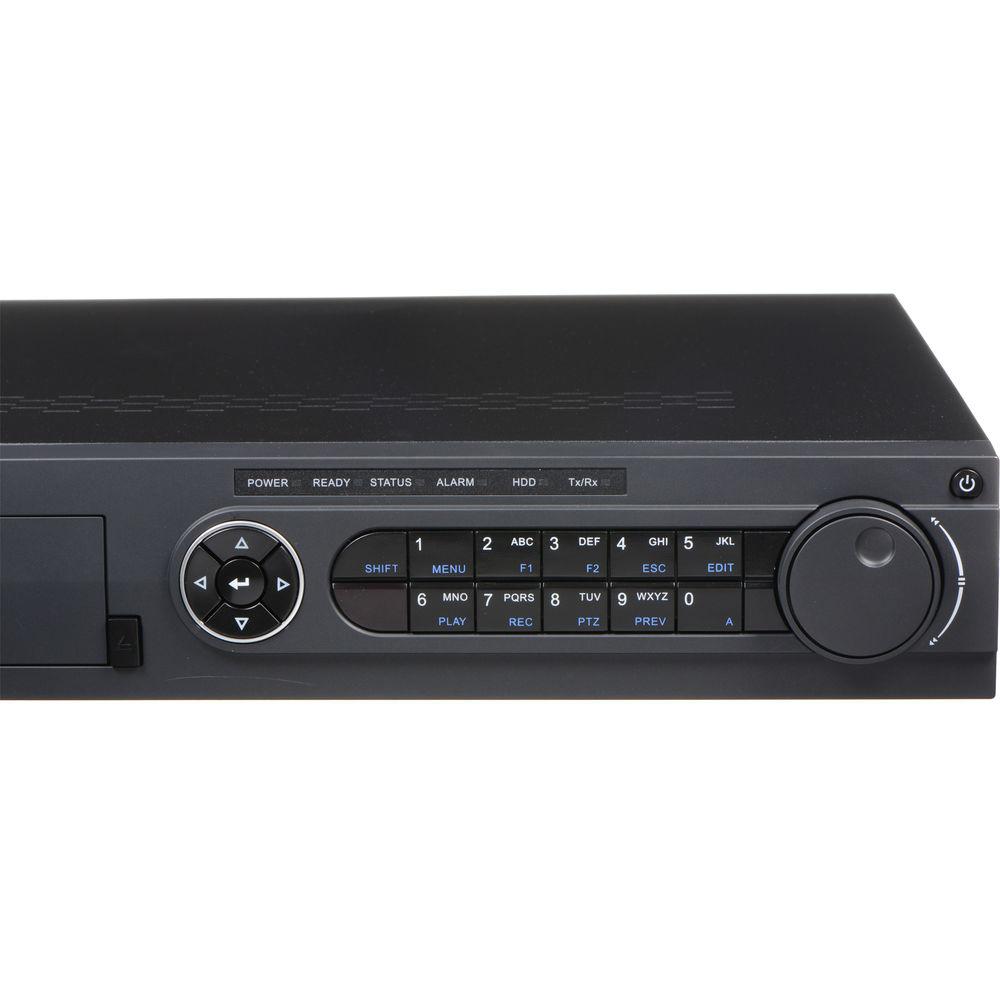

User Manual for Hikvision DS-7716NI-I4 16P 16-Channel 12MP NVR with 3TB HDD Click to enlarge the picture
Contents of the user manual for the Hikvision DS-7716NI-I4 16P 16-Channel 12MP NVR
- Product category: Network Video Recorders (NVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Network Video Recorders (NVRs)
 |
User manual for the Hikvision DS-7716NI-I4 16P 16-Channel 12MP NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|

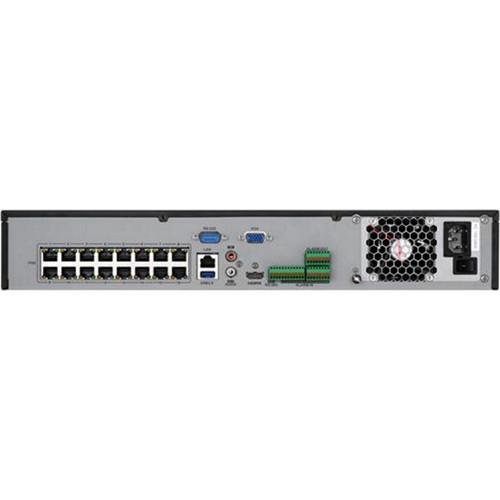

Product description Record video and audio from up to 16 cameras with DS-7716NI-I4/16P 16-Channel 12MP NVR from Hikvision. This NVR features 16 Ethernet ports with plug-and-play functionality and built-in PoE for quick installation and setup of network cameras. It allows you to record and play back video in up to 12MP resolution using Hikvision or third-party network cameras. HDMI and VGA outputs support up to 4K resolution, and there are three USB ports for transferring data to external devices. A 3TB HDD comes preinstalled in order to save video from all 16 channels. - 16-channel NVR with 16 built-in PoE ports
- Up to 12MP recording resolution on one channel, 8MP on four channels, and 1080p on all channels
- Plug-and-play functionality for quick and easy setup and maintenance
- 3TB HDD preinstalled to store recorded video, supports up to 24TB total
- Simultaneous HDMI and VGA video outputs
- H.265, H.264+, H.264, and MPEG4 video compression for high-quality recording and playback
- Individually configurable channels
- Motion detection, video tampering, video exception alert, and video loss alert functions
- HDD quota management allows for different storage capacities to be assigned to different channels
- S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) and Bad Sector detection to detect and report various indicators of reliability to anticipate HDD failures
- Dual-OS to support high-performance operation
UPC: 813908028430 In the Box Hikvision DS-7716NI-I4/16P 16-Channel 12MP NVR with 3TB HDD IR Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision DS-7716NI-I4 16P 16-Channel 12MP NVR with 3TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-7716NI-I4/16P-3TB Specs | Number of Channels | 16 x RJ45 Ethernet with PoE | | Supported Resolutions | Up to 12 MP | | Audio Input | Two-way, 1 x RCA (2.0 V p-p, 1 kOhm) | | Bandwidth | Incoming: 160 Mbps
Outgoing: 256 Mbps | | Remote Connection | 128 | | Recording Resolution | 12, 8, 6, 5, 4, and 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF | | HDMI Output Resolution | 4K (3840 x 2160) at 60 Hz, 4K (3840 x 2160) at 30 Hz, 1920 x 1080 at 60 Hz, 1600 x 1200 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz | | VGA Output Resolution | 1920 x 1080 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 720 at 60 Hz, 1024 x 768 at 60 Hz | | Audio Output | 1 x RCA (linear, 1 kOhm) | | Compression | H.265, H.264+, H.264, MPEG4 | | Live View / Playback Resolution | 12, 8, 6, 5, 4, and 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF | | Synchronous Playback | 16-channel | | Capability | 4-channel at 4K or 16-channel at 1080p | | SATA Ports | 4 x SATA interfaces | | Storage | 3 TB preinstalled, supports up to 24 TB | | Network Interface | RJ45 10/100/1000 Mbps self-adaptive Ethernet interface | | Serial Interface | 1 x RS-485 (half-duplex)
1 x RS-232 | | USB | Front Panel: 2 x USB 2.0
Rear Panel: 1 x USB 3.0 | | Alarm Inputs | 16 | | Alarm Outputs | 4 | | PoE Interface | 16 x RJ45 10/100 Mbps self-adaptive Ethernet ports | | PoE Standard | IEEE 802.3 af/at | | PoE Power | 200 W | | Power Supply | 100 to 240 VAC | | Power Consumption | ≤20 W (without HDD and PoE) | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | 10 to 90% | | Chassis | 19" (483 mm) rack-mounted 1.5 U chassis | | Dimensions | 17.5 x 15.3 x 2.8" (445 x 390 x 70 mm) | | Weight | ≤11 lb (5 kg) |
